Software for Length measuring devices SAUTER AFH LD
  • Software for Length measuring devices SAUTER AFH LD

Software for Length measuring devices SAUTER AFH LD

€250.00
Tax excluded
  • - Dimensions of the test object
  • - Tensile and compressive force
  • - Load test
  • - Archiving the recorded data

Volume discounts

QuantityUnit priceYou Save
2€250.00€25.00
3€250.00€75.00
5€250.00€187.50
10€250.00€500.00

Software for Length measuring devices SAUTER AFH LD

AFH LD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
The program simultaneously requests the measurements from a force-measuring device, e. g. SAUTER FH, as well the length-measuring device SAUTER LD

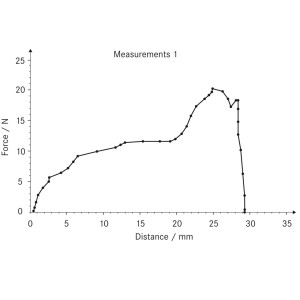

The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH LD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel
The software AFH LD is compatible with all devices in the ranges SAUTER FC, FH, FL
Other devices are not supported at this time, but may be included on request
These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVS range. However, it is also possible to use them with other mechanical testing machines

Further analysis functions:

  • - Dimensions of the test object
  • - Tensile and compressive force
  • - Load test
  • - Archiving the recorded data

Scope of delivery SAUTER AFH LD:

  • - AFH LD software on DVD
  • - User manual
  • - Software licence
  • - PC connection cable FL-A01 (RS-232 to LD)
  • - PC connection cable FH-A01 (RS-232 to FH)

Order example for a complete test system:

  • - FH 5K. (Digital force gauge)
  • - LD 300 (Digital length measuring device)
  • - AFH LD (Force-deflection software)
  • - TVS 10KN100* (Test stand)
  • - LD-A06* (Mounting LD on test stand)
  • - 2×AFH 12* (Y-USB converter)
  • - AC 04* (Test object holder)
  • - 961-163* (Force calibration)
AFH LD
