SAUTER DB 20-3 Torquemètre numérique

Name: SAUTER DB 20-3 Torquemètre numérique
Brand: SAUTER
SKU: DB 20-3
Price: 1791 EUR
Availability: InStock

SAUTER

1 990,00 € (Économisez 10%)

1 791,00 €

premium tool designed for precise torque testing and calibration of tools such as torque wrenches and cordless screwdrivers

Technical data

Plage de mesure couple	1 Nm – 20 Nm
Lecture couple [d] (Nm)	0,005 Nm
Tolérance (% de [Max])	0,5%
Unités de mesure	Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Capteurs de couple pris en charge	20 mm, 3/8 "
Protection de surcharge (% de [Max])	120%
Fonction mémoire
Mémoire interne des données : nombre de valeurs individuelles	500
Fonction Peak
Fonction de valeur limite
Fréquence de mesure interne	1000 Hz
Alimentation fourni	Batteries et alimentation électrique
Type de pile/accu	NiMH
Batterie autonomie - sans rétroéclairage	18 h
Auto-Off intervalle(s) en fonctionnement sur piles/batteries	1 - 60 min
Interfaces	RS-232 de série, USB-Device
Écran type	graphique LCD
Écran résolution	128×64
Matériau boîtier	métal, laqué
Dimensions (L×P×H)	200×100×50 mm

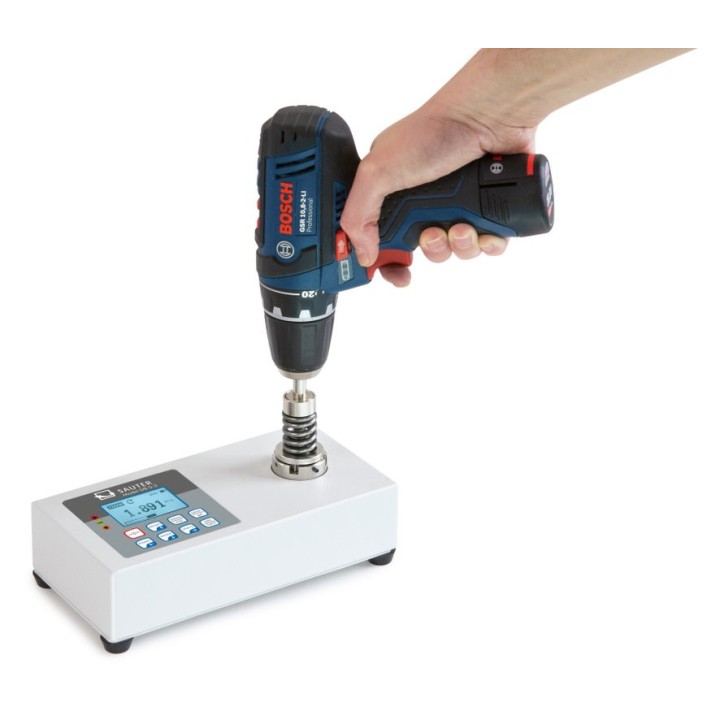

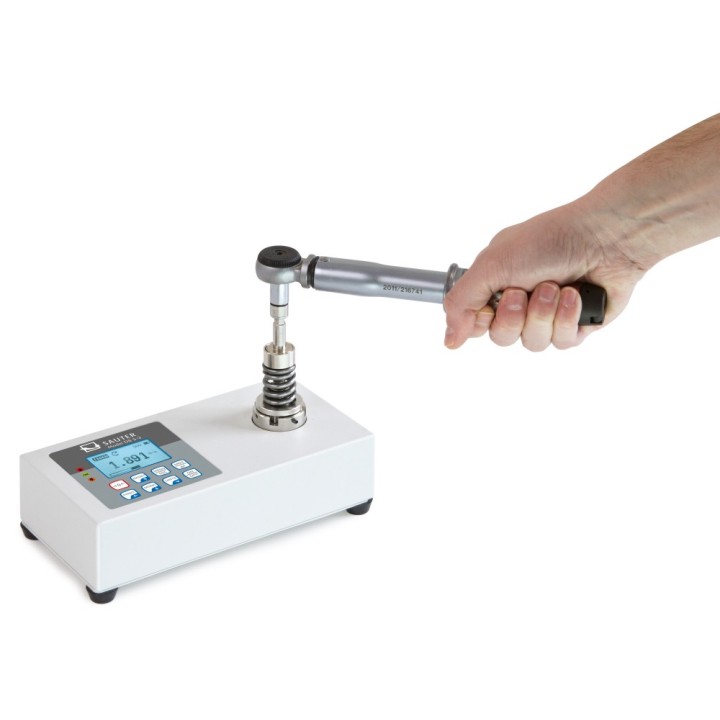

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

Screw joint simulator for dynamic testing of electric screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

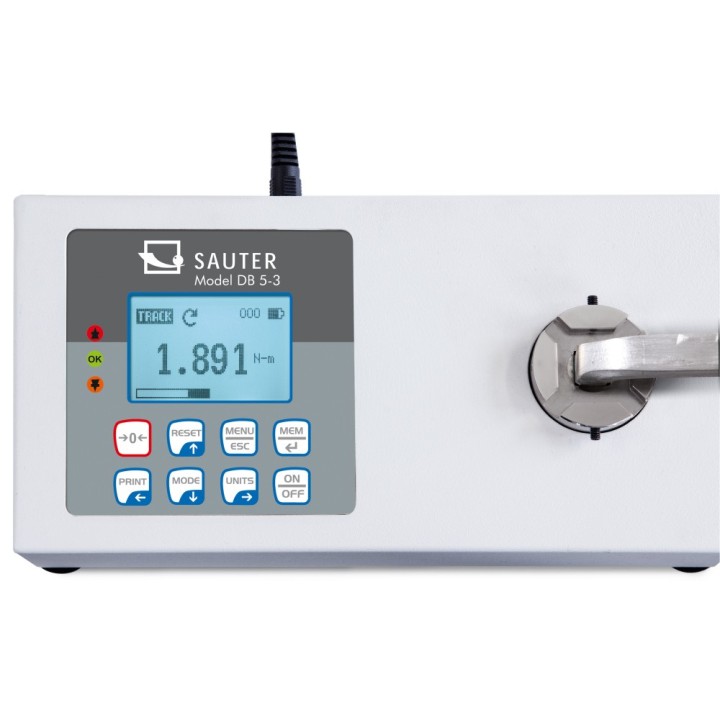

LCD graphics display with backlight

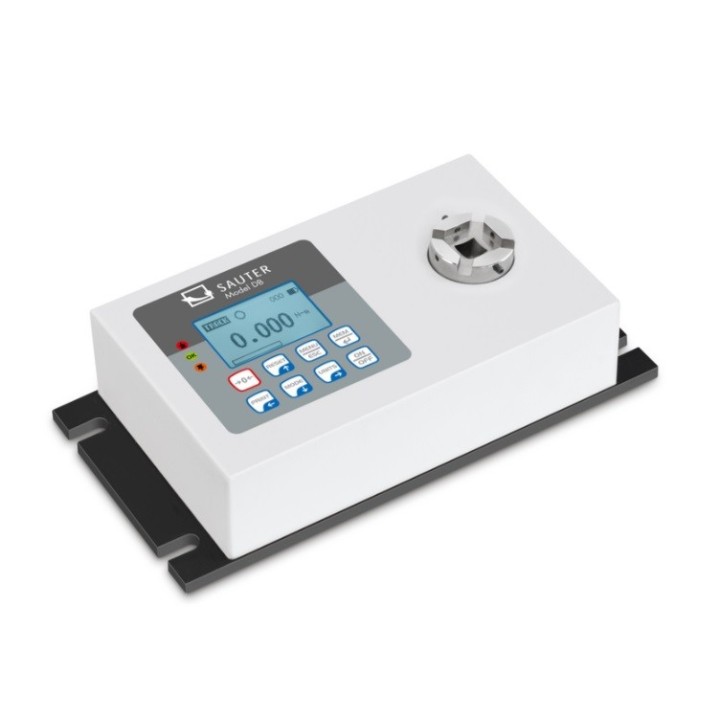

Stable mounting plate for solid fixation

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

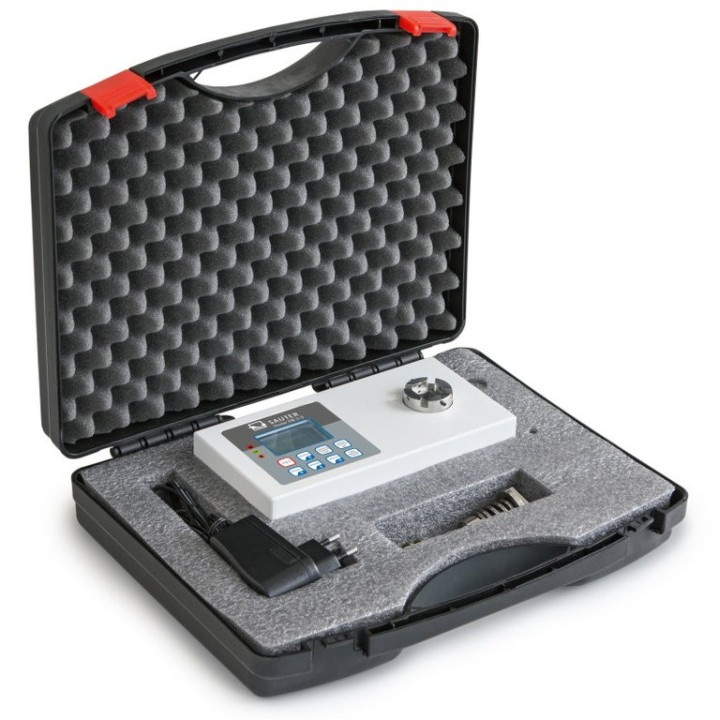

Scope of delivery: Torque pick-up, sturdy carry case, mounting plate
