SAUTER FC

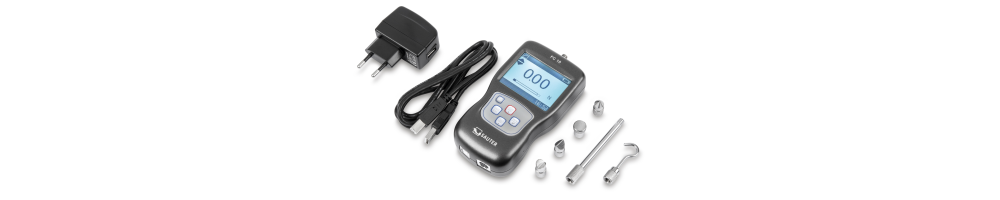

Force gauge SAUTER FC

Force gauge SAUTER FC

Compact force-measuring device

  • Turnable display with backlight
  • Real time or Peak Hold Mode to observe transcients or capture peaks
  • Metal housing for durable usage in harsh environmental conditions
  • Capacity display: A bar lights up to show how much of the measuring range is still available
  • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal
  • Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
  • Internal memory for up to 1000 measurements
  • USB data interfaces as standard
  • Data interface RS-232 (only for connection to the printer)
  • Selectable: AUTO-OFF function or permanent operation
  • Delivered in a hard carrying case
  • Selectable measuring units: N, kg, oz, lb
  • Standard attachments: as shown below, extension rod: 90 mm
  • Can be mounted on all SAUTER test stands (with adapter plate)

Features SAUTER FC

  • Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
  • Peak hold function: capturing a peak value within a measuring process.
  • Push and Pull: the measuring device can capture tension and compression forces.
  • Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.
  • Data interface RS-232: To connect the balance to a printer, PC or network
  • USB data interface: To connect the balance to a printer, PC or other peripherals.
  • GLP/ISO record keeping of weighing data with date, time and identification-no. Only with printers from KERN.
  • Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
  • Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
  • Resets the display to “0”
  • Rechargeable battery pack: rechargeable set
  • Mains adapter: 100-230V/50-60Hz EU. On request GB or USA version.
  • 2 years warranty

Option

  • PC software: to transfer the measurements from the device to a PC.
  • ISO calibration possible.

Technical data SAUTER FC

  • Measuring precision: 0,3 % of [Max]
  • Transmission rate to PC: up to 200 measured values/second
  • Overload protection: 150 % of [Max]
  • Overall dimensions W×D×H 145×73×34 mm
  • Thread: M6
  • Rechargeable battery pack integrated,  standard, operating time up to 20 h without backlight, charging time approx. 4 h
  • Net weight approx. 0,94 kg

Accessories SAUTER FC

  • Data transfer software with graphic display of the measurement process, Force-time, SAUTER AFH FAST
  • Force-displacement only in combination with SAUTER LB, SAUTER AFH FD
  • Standard attachments - AC 43
  • RS-232/PC connection cable to connect models from the SAUTER FC range to a printer - FC-A01
  • Standard attachments for Force gauges 10 - 500 N, 6 items (M6-Thread) - AC 43
  • M10 External thread, M6 Threaded hole - AFM 05
  • M10 External thread, M6 Threaded hole - AFM 07
  • M6 Threaded hole, M5 External thread - AFM 102
  • M12 Threaded hole, M6 Threaded hole - AFM 15

Force gauge SAUTER FC

Active filters

SAUTER SAUTER FC 10 compact force gauge

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 10

Measuring range force [Max] (N) 10 N
Readability force [d] (N) 0,01 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
€373.50 Regular price €415.00
SAUTER SAUTER FC 50 compact force gauge

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 50

Measuring range force [Max] (N) 50 N
Readability force [d] (N) 0,01 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
€373.50 Regular price €415.00
SAUTER SAUTER FC 100 compact force gauge

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 100

Measuring range force [Max] (N) 100 N
Readability force [d] (N) 0,1 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
€373.50 Regular price €415.00
SAUTER SAUTER FC 500 compact force gauge

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 500

Measuring range force [Max] (N) 500 N
Readability force [d] (N) 0,1 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
€373.50 Regular price €415.00
SAUTER SAUTER FC 1K compact force gauge

Compact force gauge for tensile and compressive force measurements

Technical Data SAUTER FC 1K

Measuring range force [Max] (N) 1 kN
Readability force [d] (N) 1 N
Tolerance (% of [Max]) 0,3%
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 1
Supplied power supply Accu & Power supply
Memory function
Limit-setting function
Hold function
Peak function
Material housing metal
Dimensions completely mounted (W×D×H) 145×73×34 mm
Net weight approx. 0,50 kg
Interfaces RS-232 standard, USB-Device
€373.50 Regular price €415.00
