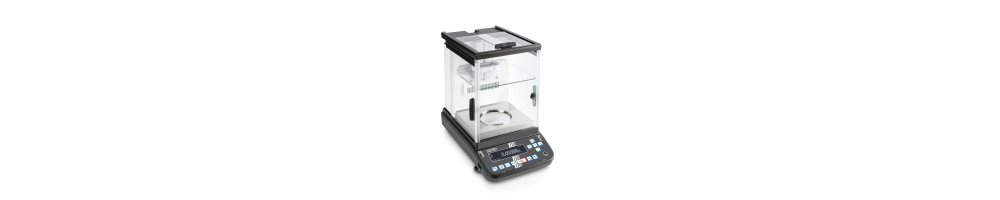

Analytical balances
Analytical Balances Premium class
are right at the top of the precision balance segment. The numerous equipment features of the standard balances are complemented by high-quality materials with robust, sturdy construction, high-quality, high-performance weighing systems, optimised operating sequences, speed benefits and in some cases, the most modern touchscreen technology. With its touchscreen technology a premium laboratory balance will support your users in their typical procedures. In this way these scales can be operated more efficiently and quickly than devices from other quality classes. In particular these balances are used in demanding laboratory applications and anywhere where the environmental conditions are not ideal because of vibrations or other interference, but where, naturally, the balance is expected to provide accurate weighing results. Another field of application for these balances is the pharmaceutical industry, which is subject to particularly demanding requirements and authorities such as, for example, the FDA (Food and Drug Administration).

Subcategories
-
KERN ALJ
Analytical balance with large weighing range, intuitive graphics display and extensive recipe database
- Rapid and efficient operation thanks to the graphic display. Simple plain text user guidance in the display, following languages available: DE, EN, FR, IT, ES, PT
- KERN ALJ-A03: Ioniser to neutralise electrostatic charge for fixed installation in the analytical balance. This it makes for convenient handling as you no longer need a separate device. Simply enable the ioniser fan at the push of a button. Suitable for all models in this range. see accessories
- Short stabilisation time: Steady weight values within approx. 4 sec under laboratory conditions (on all models with readout [d] = 0,1 mg), 10 | 6 s (on all models with readout [d] = 0,01 mg)
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual and audible signal assists with portion division, dispensing or grading
- Dosage aid: High stability mode and other filter settings can be selected
- Internal memory for complete recipes with name and target value of therecipe ingredients. User guidance through display
- Large glass draught shield with 3 sliding doors for easy access to the items being weighed
- Compact size, practical for small spaces
- Protective working cover included with delivery
Features KERN ALJ
- Internal adjusting (CAL): Quick setting of the balance's accuracy with internal adjusting weight (motordriven)
- Data interface RS-232: To connect the balance to a printer, PC or network
- GLP/ISO log: the balance displays the weight, date and time, regardless of printer connected
- Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
- Recipe level B: Internal memory for complete recipes with name and target value of the recipe ingredients. User guidance through displays.
- Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
- Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
- Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
- Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
- Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA, AUS
- Measuring system: Electromagnetic force compensation
Technical data KERN ALJ
- Backlit LCD display, digit height 15 mm
- Dimensions weighing surface, stainless steel, ∅ 80 mm
- Overall dimensions (incl. draught shield) W×D×H 210×340×330 mm
- Weighing space W×D×H 160×140×205 mm
- Net weight 7 kg
- Permissible ambient temperature 5 °C/35 °C
ModelWeighing range
[Max]
gReadout
[d]
mgVerific. value
[e]
mgMinimum load
[Min]
mgLinearity
mgOption
VerificationOption
Calibration
CertificateALJ 210-5A2100,010,1- yes 82 | 2200,01 | 0,10,1 | 0,2- yes 1600,10,3- yes ALJ 160-4AM1600,11100,3yes yes 2500,10,3- yes ALJ 250-4AM2500,11100,3yes yes 3100,10,3- yes 5100,10,4- yes -
KERN ACJ
Analytical balance KERN ACJ with high-quality single-cell weighing system and OIML verification class I
- Verification class: I with certificate
- Automatic internal calibration in the case of a temperature change > 2 °C and time-controlled every 4 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
- Data interface RS-232: To connect the balance to a printer, PC or network
- USB data interface: To connect the balance to a printer, PC or other peripherals.
- GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
- Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
- Recipe level A: Separate memory for the weight of the tare container and the recipe ingredients (net total).
- Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
- Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
- Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
- Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
- Single cell technology: Advanced version of the classic electromagnetic force compensation principle. The load cells are milled from a single aluminium block achieving high mechanical stre
- 3 years warranty
-
KERN ACS
Analytical balance KERN ACS with Data interface USB and RS-232
- Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
- Data interface RS-232: To connect the balance to a printer, PC or network
- USB data interface: To connect the balance to a printer, PC or other peripherals.
- GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
- Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
- Recipe level A: Separate memory for the weight of the tare container and the recipe ingredients (net total).
- Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
- Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
- Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
- Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
- Single cell technology: Advanced version of the classic electromagnetic force compensation principle. The load cells are milled from a single aluminium block achieving high mechanical stre
- 3 years warranty
-
KERN ADB
Analytical balance KERN ADB
-
KERN ADS/ADT
KERN ADS/ADT Analytical Balance – Precision Meets Innovation
The KERN ADS Analytical Balance is designed for high-precision weighing tasks, offering flexible functionality and an intuitive touch display for seamless operation. This advanced balance ensures exceptional accuracy and user-friendly handling, making it ideal for laboratories, research facilities, and quality control applications.
Key Features:
✔ High Precision & Reliability – Delivers exact measurement results with superior stability and repeatability.
✔ Innovative Touch Display – Intuitive, high-resolution touchscreen for effortless operation and customizable settings.
✔ Flexible Weighing Functions – Adaptable to various laboratory applications, including density determination, formulation, and piece counting.
✔ Smart Connectivity – Equipped with modern interfaces for efficient data transfer and integration into laboratory networks.
✔ Robust & Ergonomic Design – Built for long-term durability with user-centric features to optimize workflow efficiency.The KERN ADS is the ideal choice for professionals who demand accuracy, efficiency, and cutting-edge technology in analytical weighing.
Technical Data
Units g, mg, gn, dwt, tl (Tw), ozt, ct, lb, oz, ffa Stabilization time 3 s Tolerance weighing Interfaces RS-232 standard, USB-Device Adjustment options Adjusting with external weight Ambient temperature 15 °C – 25 °C Dimensions weighing surface (Ø) 90 mm Material draught shield glass Material housing ABS plastic Material weighing plate stainless steel Net weight approx. 6 kg
Analytical balance with flexible functionality and touch display
Weighing capacity [Max] | 120 g |
Readability [d] | 0,1 mg |
Units | g, mg, gn, dwt, tl (Tw), ozt, ct, lb, oz, ffa |
Linearity | ± 0,3 mg |
Reproducibility | 0,3 mg |
Stabilization time | 3 s |
Tolerance weighing | |
Interfaces | RS-232 standard, USB-Device |
Adjustment options | Adjusting with external weight |
Recommended adjusting weight | 100 g (E2) |
Ambient temperature | 15 °C – 25 °C |
Dimensions weighing surface (Ø) | 90 mm |
Material draught shield | glass |
Material housing | ABS plastic |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
ioniser to neutralise electrostatic charge for fixed installation in the analytical balance. This it makes for convenient handling as you no longer need a separate device. Simply enable the ioniser fan at the push of a button
- Is fitted in place of the existing glass rear panel of the draft shield
- Please order at the time you order your balance
- Scope of delivery: rear panel, ioniser, power supply
Analytical balance with flexible functionality and touch display
Weighing capacity [Max] | 220 g |
Readability [d] | 0,1 mg |
Units | g, mg, gn, dwt, tl (Tw), ozt, ct, lb, oz, ffa |
Linearity | ± 0,3 mg |
Reproducibility | 0,3 mg |
Stabilization time | 3 s |
Tolerance weighing | |
Interfaces | RS-232 standard, USB-Device |
Adjustment options | Adjusting with external weight |
Recommended adjusting weight | 200 g (E2) |
Ambient temperature | 15 °C – 25 °C |
Dimensions weighing surface (Ø) | 90 mm |
Material draught shield | glass |
Material housing | ABS plastic |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
Analytical balance with flexible functionality and touch display
Weighing capacity [Max] | 320 g |
Readability [d] | 0,1 mg |
Units | g, mg, gn, dwt, tl (Tw), ozt, ct, lb, oz, ffa |
Linearity | ± 0,4 mg |
Reproducibility | 0,4 mg |
Stabilization time | 5 s |
Tolerance weighing | |
Interfaces | RS-232 standard, USB-Device |
Adjustment options | Adjusting with external weight |
Recommended adjusting weight | 300 g (E2) |
Ambient temperature | 15 °C – 25 °C |
Dimensions weighing surface (Ø) | 90 mm |
Material draught shield | glass |
Material housing | ABS plastic |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
Input voltage: 100-240V ~ 50/60Hz
Output voltage: Output: 12V ⎓ 2000 mA
Suitable for KERN scales: ADB, ADJ
Mains plug with the following adapter: EU | CH | UK
Weighing capacity [Max] | 320 g |
Readability [d] | 0,1 mg |
Units | g, mg, ct |
Linearity | ± 0,3 mg |
Reproducibility | 0,2 mg |
Stabilization time | 3 s |
Tolerance weighing | |
Interfaces | RS-232 standard, USB-Device |
Adjustment options | Adjusting with external weight |
Recommended adjusting weight | 300 g (E2) |
Ambient temperature | 10 °C – 30 °C |
Dimensions weighing surface (Ø) | 91 mm |
Material draught shield | glass |
Material housing | plastic |
Dimension housing (W×D×H) | 213×333×338 mm |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
Analytical balance with flexible functionality and touch display
Technical Data KERN ADT 100-4
Weighing capacity [Max] | 120 g |
Readability [d] | 0,1 mg |
Units | kg, g, mg, gn, dwt, tl (Tw), ozt, ct, lb, N, oz, ffa |
Linearity | ± 0,3 mg |
Reproducibility | 0,3 mg |
Stabilization time | 3 s |
Tolerance weighing | |
Interfaces | RS-232, USB-Device |
Adjustment | Internal calibration (automatic) |
Recommended adjusting weight | 100 g (E2) |
Ambient temperature | 15 °C – 25 °C |
Dimensions weighing surface (Ø) | 90 mm |
Material draught shield | glass |
Material housing | ABS plastic |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
- Data interface RS-232
- Suitable for Analytical balance KERN ACS/ACJ, KERN ABS-N/ABJ-NM
Analytical balance with flexible functionality and touch display
Technical Data KERN ADT 200-4
Weighing capacity [Max] | 220 g |
Readability [d] | 0,1 mg |
Units | kg, g, mg, gn, dwt, tl (Tw), ozt, ct, lb, N, oz, ffa |
Linearity | ± 0,3 mg |
Reproducibility | 0,3 mg |
Stabilization time | 3 s |
Tolerance weighing | |
Interfaces | RS-232, USB-Device |
Adjustment | Internal calibration (automatic) |
Recommended adjusting weight | 200 g (E2) |
Ambient temperature | 15 °C – 25 °C |
Dimensions weighing surface (Ø) | 90 mm |
Material draught shield | glass |
Material housing | ABS plastic |
Material weighing plate | stainless steel |
Net weight approx. | 6 kg |
