Weight OIML class | M1 |
Shape weight | Slot weight Type A |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 1 g |
Permissible tolerance according to OIML (+/-) | 1 mg |
Type A

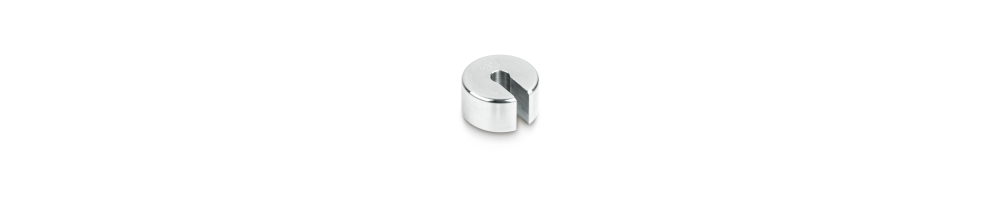

KERN Slot weight Type A
The KERN Slot Weight Type A, identified as Single Weight 347-125-A, is a high-precision test weight with a nominal value of 2 kg. This individual weight is classified as OIML Class M1, ensuring its accuracy and reliability for various applications. It features a slot shape, making it compatible with all slot weights/supporting bars of type A, and is constructed from finely turned stainless steel in accordance with OIML standards. The permissible tolerance for this weight is +/- 100 mg.
This product is particularly useful in settings requiring precise calibration and is suitable for laboratory use, among other applications. It also needs a box for verification purposes, which must be purchased separately.

Weight OIML class | M1 |
Shape weight | Slot weight Type A |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 2 g |
Permissible tolerance according to OIML (+/-) | 1,2 mg |
Weight OIML class | M1 |
Shape weight | Slot weight Type A |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 5 g |
Permissible tolerance according to OIML (+/-) | 1,6 mg |
Weight OIML class | M1 |
Shape weight | Slot weight Type A |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 10 g |
Permissible tolerance according to OIML (+/-) | 2 mg |
Weight OIML class | M1 |
Shape weight | Slot weight Type A |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 20 g |
Permissible tolerance according to OIML (+/-) | 2,5 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 50 g |
Permissible tolerance according to OIML (+/-) | 3 mg |
Supporting bar, OIML Class M1, 100 g, stainless steel fine turned
Technical Data
Weight OIML class | M1 |
Shape weight | Supporting bar (Type A) |
Material | stainless steel fine turned |
Test weight - nominal value | 100 g |
Permissible tolerance according to OIML (+/-) | 5 mg |
Max. total weight | 2 kg |
Max. single weight | 1 kg |
Supporting bar, OIML Class M1, 500 g, stainless steel fine turned
Technical Data
Weight OIML class | M1 |
Shape weight | Supporting bar (Type A) |
Material | stainless steel fine turned |
Test weight - nominal value | 500 g |
Permissible tolerance according to OIML (+/-) | 25 mg |
Max. total weight | 20 kg |
Max. single weight | 10 kg |
Supporting bar, OIML Class M1, 1 kg, stainless steel fine turned
Technical Data
Weight OIML class | M1 |
Shape weight | Supporting bar (Type A) |
Material | stainless steel fine turned |
Test weight - nominal value | 1 kg |
Permissible tolerance according to OIML (+/-) | 50 mg |
Max. total weight | 40 kg |
Max. single weight | 10 kg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 100 g |
Permissible tolerance according to OIML (+/-) | 5 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 200 g |
Permissible tolerance according to OIML (+/-) | 10 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 500 g |
Permissible tolerance according to OIML (+/-) | 25 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 1 kg |
Permissible tolerance according to OIML (+/-) | 50 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 2 kg |
Permissible tolerance according to OIML (+/-) | 100 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 5 kg |
Permissible tolerance according to OIML (+/-) | 250 mg |
Weight OIML class | M1 |
Shape weight | Slot weight (Type A) |
Material | stainless steelfine turned (OIML) |
Test weight - nominal value | 10 kg |
Permissible tolerance according to OIML (+/-) | 500 mg |
