SAUTER TE

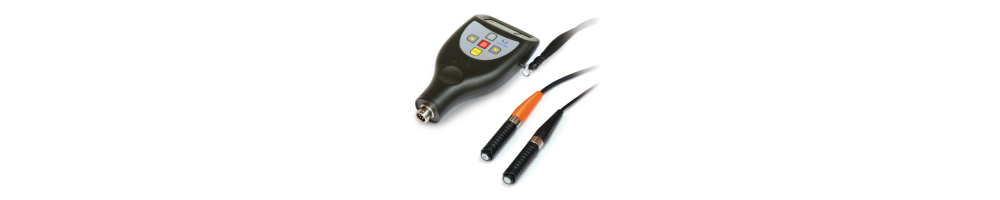

Coating thickness gauge SAUTER TE external sensor

Coating thickness gauge SAUTER TE external sensor

Active filters

SAUTER SAUTER TE 1250-0.1F Coating thickness gauge - FE

Ergonomic design and external measuring head for highest ease of use

TECHNICAL DATA

Measuring range coating thickness [d] (µm)100 µm; 1250 µm
Readability coating thickness [d] (µm)0,1 µm; 1 µm
Tolerance (% of [Max])3%
Unitsµm, inch (mil)
Coating thickness gauge sensor typeFE
Test object thickness coatingNon-magnetic coatings on iron, steel, Type F
Battery4×1.5 V AAA
Increase in measurement accuracy possible
Material housingplastic
Dimensions completely mounted (W×D×H)131×65×28 mm
Sensor placement positionexternal
€369.00 Regular price €410.00
SAUTER SAUTER TE 1250-0.1N Coating thickness gauge - NFE

Ergonomic design and external measuring head for highest ease of use

TECHNICAL DATA

Measuring range coating thickness [d] (µm)100 µm; 1250 µm
Readability coating thickness [d] (µm)0,1 µm; 1 µm
Tolerance (% of [Max])3%
Unitsµm, inch (mil)
Coating thickness gauge sensor typeNFE
Test object thickness coatingCoatings on non-magnetic metals, type N
Battery4×1.5 V AAA
Increase in measurement accuracy possible
Material housingplastic
Dimensions completely mounted (W×D×H)131×65×28 mm
Sensor placement positionexternal
€405.00 Regular price €450.00
SAUTER SAUTER TE 1250-0.1FN Coating thickness gauge - FE/NFE

Ergonomic design and external measuring head for highest ease of use

TECHNICAL DATA

Measuring range coating thickness [d] (µm)100 µm; 1250 µm
Readability coating thickness [d] (µm)0,1 µm; 1 µm
Tolerance (% of [Max])3%
Unitsµm, inch (mil)
Coating thickness gauge sensor typeFE/NFE
Test object thickness coatingNon-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Battery4×1.5 V AAA
Increase in measurement accuracy possible
Material housingplastic
Dimensions completely mounted (W×D×H)131×65×28 mm
Sensor placement positionexternal
€468.00 Regular price €520.00
