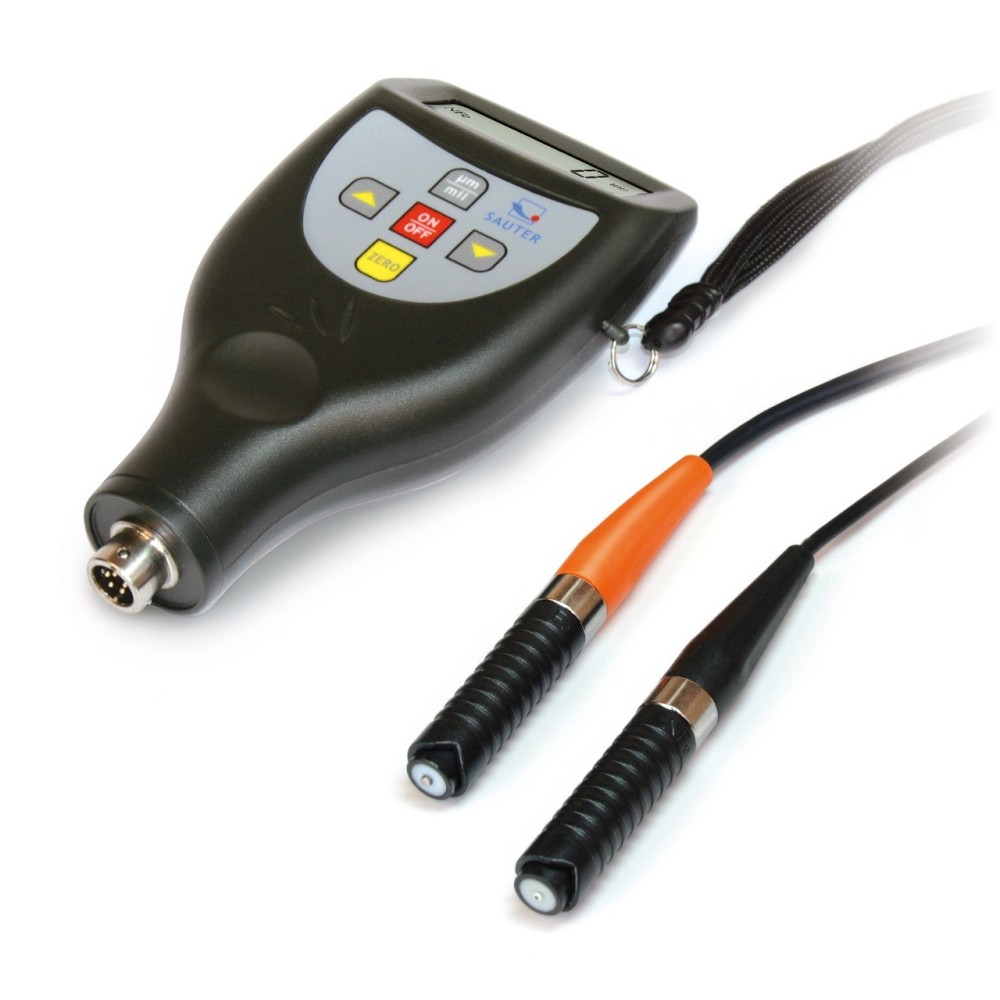

SAUTER TE 1250-0.1FN Coating thickness gauge - FE/NFE

SAUTER TE 1250-0.1FN Coating thickness gauge - FE/NFE

SAUTER
TE 1250-0.1FN

Ergonomic design and external measuring head for highest ease of use

TECHNICAL DATA

Measuring range coating thickness [d] (µm) 100 µm; 1250 µm
Readability coating thickness [d] (µm) 0,1 µm; 1 µm
Tolerance (% of [Max]) 3%
Units µm, inch (mil)
Coating thickness gauge sensor type FE/NFE
Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
Battery 4×1.5 V AAA
Increase in measurement accuracy possible
Material housing plastic
Dimensions completely mounted (W×D×H) 131×65×28 mm
Sensor placement position external
Certificate : without Certificate
Hurry! only 15 items left in stock.
€468.00
€520.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

External sensor for difficult-to-access measuring points

Data interface RS-232 as standard

Base plate and calibration foils included

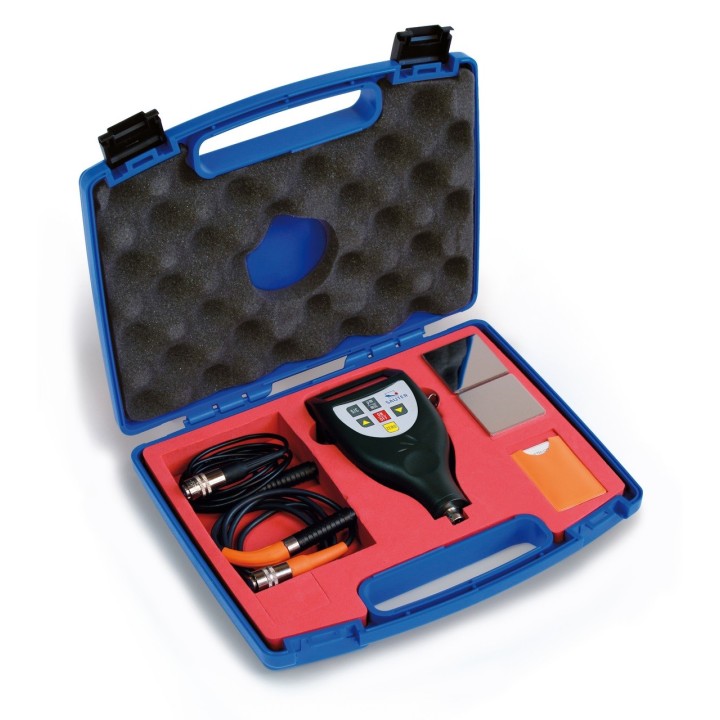

Delivered in a robust carrying case

Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value

Selectable measuring units: µm inch (mil)

Auto-Power-Off

: TE 1250-0.1FN
