Torque measurement

Measurement of static and dynamic rotary forces

Dynamic rotary force measurement is typically carried out using torque sensors on test objects which are rotated – during the movement.

Static rotary force measurement, on the other hand, is always carried out when the item is at rest.

The SAUTER range includes static torque measuring devices for determining the force expended when opening rotary or screw caps of bottles.

Further typical applications of static torque measuring devices are testing of assembly tools for screws and nuts, in particular torque keys and mechanical assembly tools such as cordless electric screw drivers.

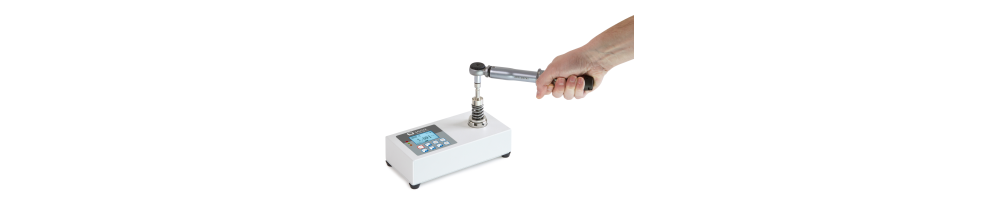

Torque measurement - measurement of static and dynamic rotary forces

Subcategories

  • SAUTER DB

    The SAUTER DB Torque Measuring Device is a premium tool designed for precise torque testing and calibration of tools such as torque wrenches and cordless screwdrivers. With its high accuracy, robust build, and user-friendly design, the SAUTER DB is indispensable across various industries where accurate torque measurement is critical.

    Areas of Application

    The SAUTER DB is ideal for multiple industries and applications, where maintaining consistent torque values is essential:

    • Automotive Industry: Ensures precision during the assembly and maintenance of automotive components, supporting both safety and durability standards.
    • Aerospace Sector: Used in the assembly and maintenance of high-stakes aerospace components, where exact torque settings are crucial for compliance and safety.
    • Manufacturing and Mechanical Engineering: Vital for testing and calibrating torque tools in production environments, ensuring consistent quality and adherence to stringent standards.
    • Service and Repair Workshops: For the regular testing and calibration of torque tools to guarantee accurate performance and reliability over time.

    Technical Data and Highlights

    • Measuring Range: Depending on the model, the SAUTER DB offers a broad range of measurement options, from low to high torque, accommodating diverse testing needs.
    • Precision: Designed with a high level of accuracy, allowing for the detection of even the smallest variations in torque to ensure optimal tool performance.
    • Digital Display: The easy-to-read digital display provides real-time feedback, making it quick and convenient to interpret results on the spot.
    • Data Storage: Features an internal memory function to store measurement results, facilitating series testing, calibration records, and data traceability.
    • Compact Design: With its sturdy yet compact design, the device is highly portable and well-suited for use both in workshops and on-site environments.
    • User-friendly Calibration: Simple calibration features allow operators to perform accurate measurements with minimal setup, maximizing productivity.

    The SAUTER DB Torque Measuring Device is the go-to solution for ensuring tool accuracy and compliance with industry standards. With this device, you can confidently verify and adjust torque settings, reducing the risk of under- or over-torquing, which is essential for quality assurance and safety in any torque-dependent operation.

Active filters

SAUTER SAUTER DB 0.5-4 digital torquemeter 0,5 Nm

Convenient way to test the torque of tools

TECHNICAL DATA

Measuring range torque [Max] (Nm) 0,5 Nm
Readability torque [d] (Nm) 0,1 mNm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Battery & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,593.00 Regular price €1,770.00
SAUTER SAUTER DB 1-4 digital torquemeter max 1 Nm

Convenient way to test the torque of tools

Technical Data

Measuring range torque 0,05 Nm – 1 Nm
Readability torque [d] (Nm) 0,2 mNm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,593.00 Regular price €1,770.00
SAUTER SAUTER DB 5-3 Torque gauge

Convenient way to test the torque of tools

Technical Data

Measuring range torque 0,25 Nm – 5 Nm
Readability torque [d] (Nm) 0,001 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,593.00 Regular price €1,770.00
SAUTER SAUTER DB 10-3 Torque gauge

Convenient way to test the torque of tools

Technical Data

Measuring range torque 0,5 Nm – 10 Nm
Readability torque [d] (Nm) 0,002 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,593.00 Regular price €1,770.00
SAUTER SAUTER DB 20-3 Torque gauge

Convenient way to test the torque of tools

Technical data

Measuring range torque 1 Nm – 20 Nm
Readability torque [d] (Nm) 0,005 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,809.00 Regular price €2,010.00
SAUTER SAUTER DB 50-2 Torque gauge

Convenient way to test the torque of tools

Technical data

Measuring range torque 2,5 Nm – 50 Nm
Readability torque [d] (Nm) 0,01 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,809.00 Regular price €2,010.00
SAUTER SAUTER DB 100-2 torque gauge

Convenient way to test the torque of tools

Technical Data

Measuring range torque 5 Nm – 100 Nm
Readability torque [d] (Nm) 0,02 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,809.00 Regular price €2,010.00
SAUTER SAUTER DB 200-2 Torque gauge

The SAUTER DB Torque Measuring Device is a premium tool designed for precise torque testing and calibration of tools such as torque wrenches and cordless screwdrivers

Technical Data

Measuring range torque 10 Nm – 200 Nm
Readability torque [d] (Nm) 0,05 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 1/2 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,809.00 Regular price €2,010.00
SAUTER SAUTER DB 500-2 Torque gauge

Convenient way to test the torque of tools

Technical Data

Measuring range torque 25 Nm – 500 Nm
Readability torque [d] (Nm) 0,1 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 3/4 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
€1,809.00 Regular price €2,010.00
