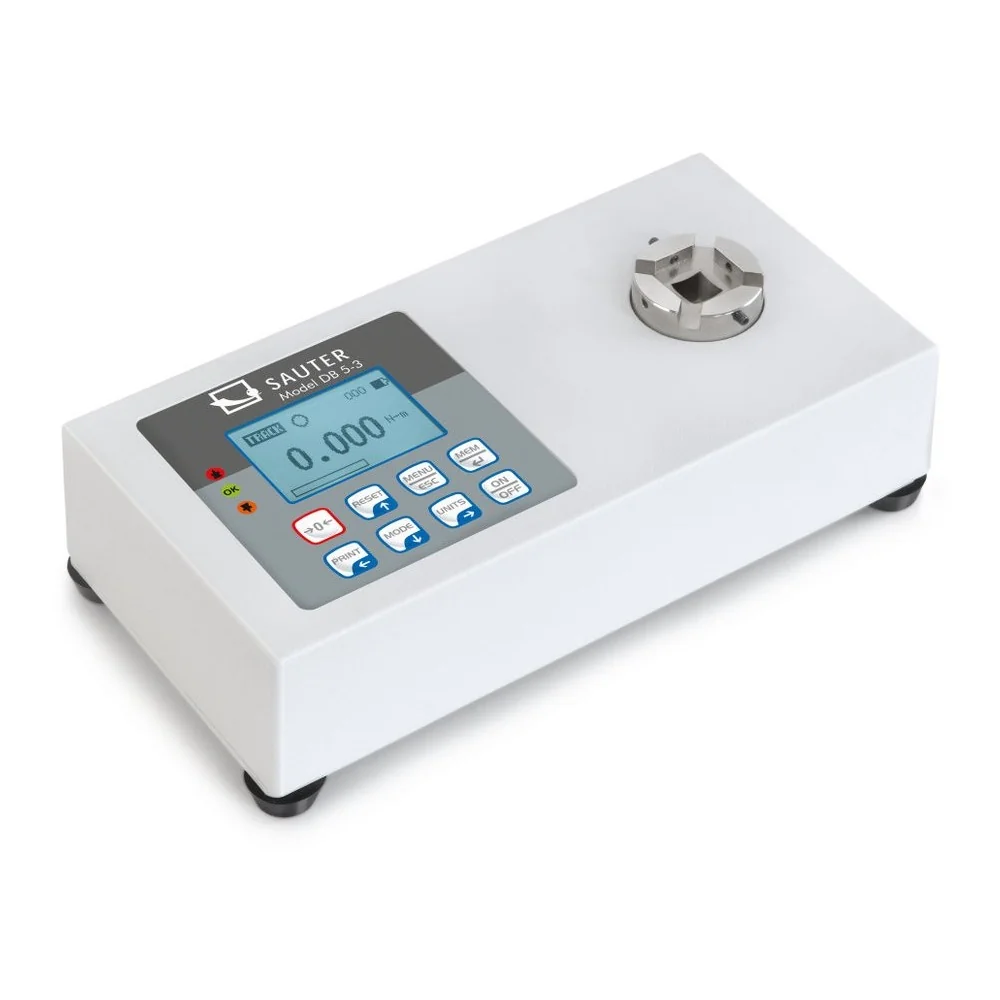

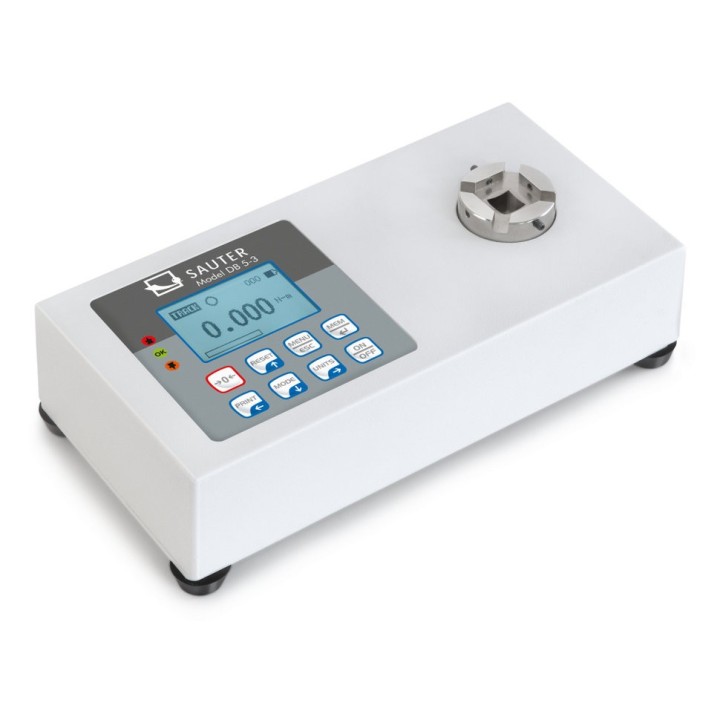

SAUTER DB 10-3 Torque gauge

SAUTER DB 10-3 Torque gauge

SAUTER
DB 10-3

Convenient way to test the torque of tools

Technical Data

Measuring range torque 0,5 Nm – 10 Nm
Readability torque [d] (Nm) 0,002 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 20 mm, 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
Certificate : without Certificate
Hurry! only 9 items left in stock.
€1,593.00
€1,770.00
Save 10%
Tax excluded
Quantity

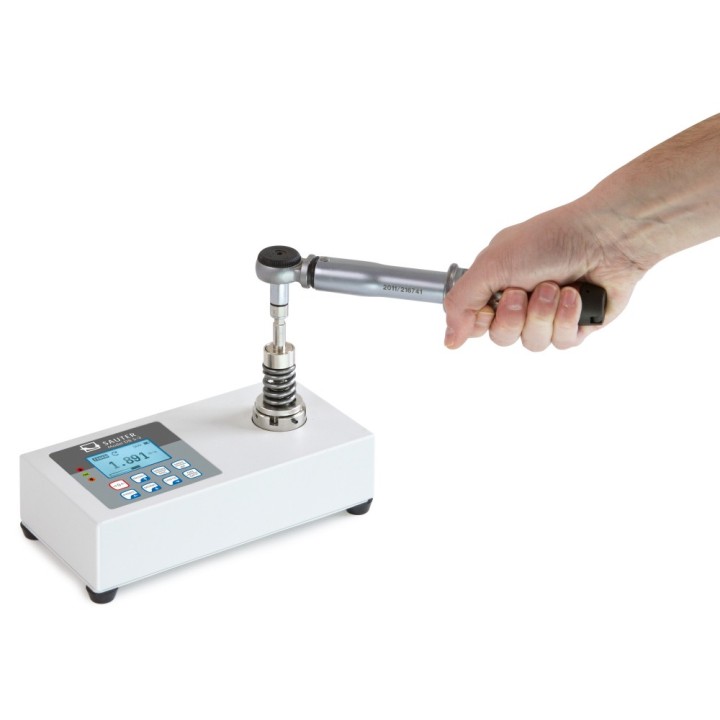

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

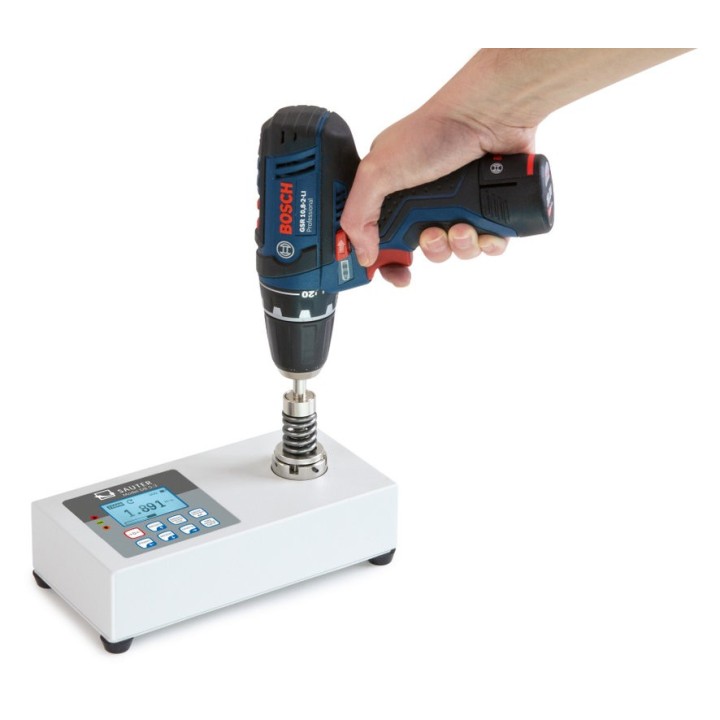

Screw joint simulator for dynamic testing of electric screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

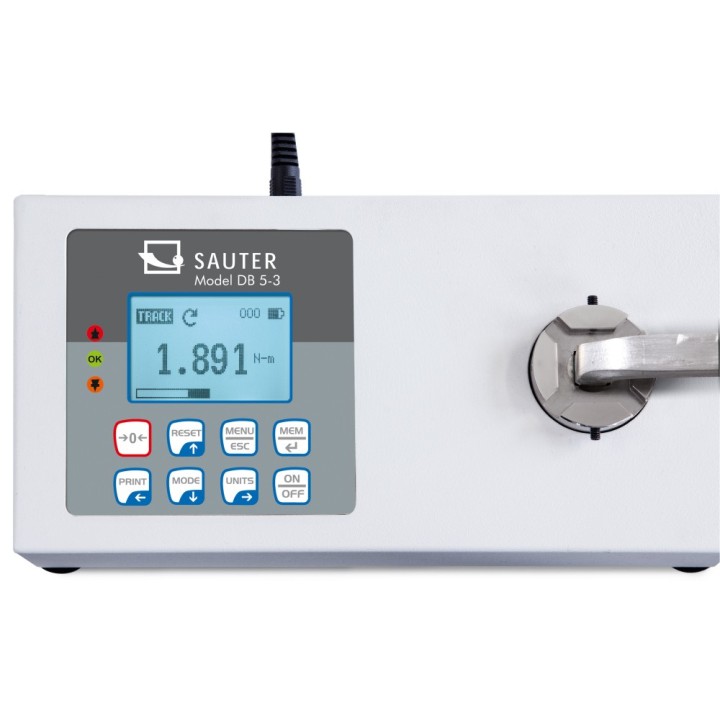

LCD graphics display with backlight

Rubber feet with anti-slip feature

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

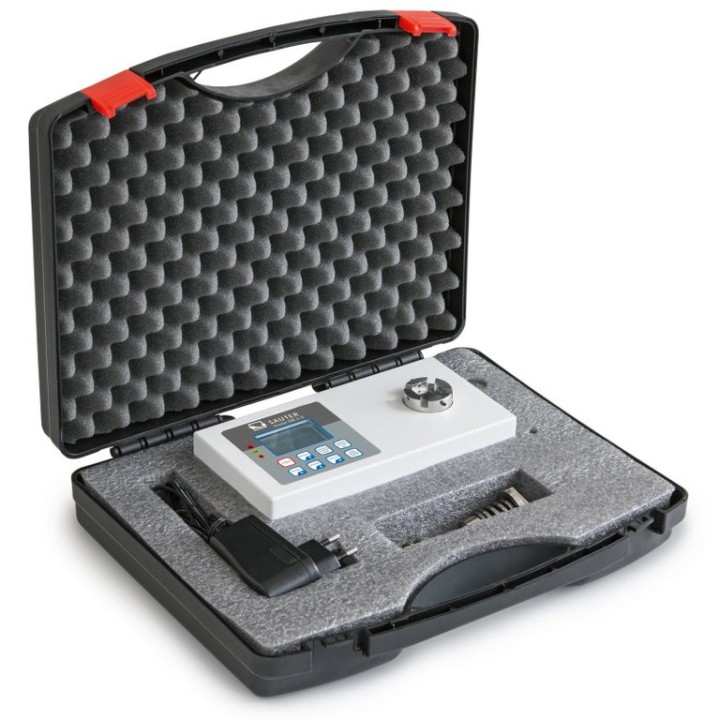

Scope of delivery: Torque pick-up, sturdy carry case

: DB 10-3
