KERN EG

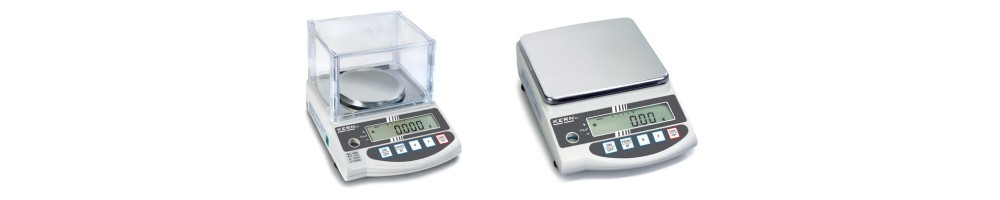

Precision balance KERN EG

Verification: approved to OIML class II with certificate
internal automatic adjustment when there are variations in temperature or at defined, time-controlled intervals. Guarantees high degree of accuracy and makes the location irrelevant
Stable temperature behaviour
Short stabilisation time
Shock proof construction
High corner load performance
Capacity display: A bar lights up to show how much of the weighing range is still available
GLP/ISO record keeping of weight values
Totalising of pieces when counting
Protective working cover included with delivery

FEATURES

Internal adjusting (CAL): Quick setting of the balance's accuracy with internal adjusting weight (motordriven).
Data interface RS-232: To connect the balance to a printer, PC or network
GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.
Suspended weighing: load support with hook on the underside of the balance.
Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
Tuning fork principle: A resonating body (like a tuning fork) is electromagnetically excited, causing it to oscillate. The measured value is calculated via the change in frequency correspon
3 years warranty

Technical Data:

Model	Weighing capacity [Max] g	Readability [d] g	Verific. value [e] g	Minimum load [Min] g	Linearity g	Weighing plate mm	Option Verification	Option DAkkS Calibration Certificate
EG 220-3NM	220	0,001	0,01	0,02	0,002	118	1	1
EG 420-3NM	420	0,001	0,01	0,02	0,003	118	1	1
EG 620-3NM	620	0,001	0,01	0,1	0,004	118	1	1
EG 2200-2NM	2200	0,01	0,1	0,5	0,01	180 × 160	1	1
EG 4200-2NM	4200	0,01	0,1	0,5	0,02	180 × 160	1	1
