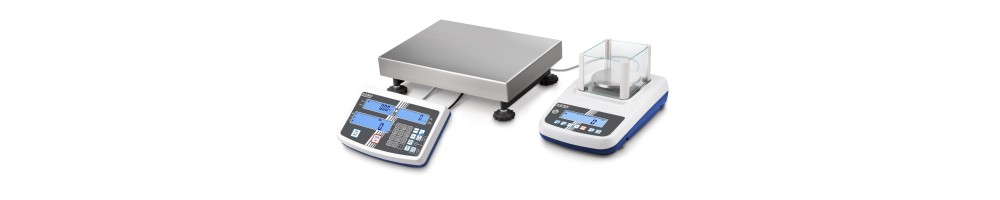

KERN Counting system KERN CCA 100K-5M
High-resolution counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999, verification optional
TECHNICAL DATA
| Quantity scale - Weighing capacity [Max] | 60 kg; 150 kg |
| Reference scale - Readability [d] | 10 mg |
| Units | kg |
| Dimensions weighing platform (W×D×H) | 500×400×140 mm |
| Dimensions weighing surface (W×D) | 500×400 mm |
| Reference scale - Linearity | 30 mg |
| Quantity scale - Linearity | 0,02 kg; 0,05 kg |
| Ambient temperature | 0 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 200 mg |
| Conformity assessment possible ex works | |
| Display type | LCD |
| Display digit height | 20 mm |
| Material weighing plate | coated metal |
| Display device cable length | 5 m |
| Material housing | plastic |
| Net weight approx. | 16 kg |
| IP protection - complete device | IP23 |
| IP protection - platform | IP65 |
| IP protection - load cell | IP65 |
€1,170.00 Regular price €1,300.00
