Counting system KERN CCA 6K-5M

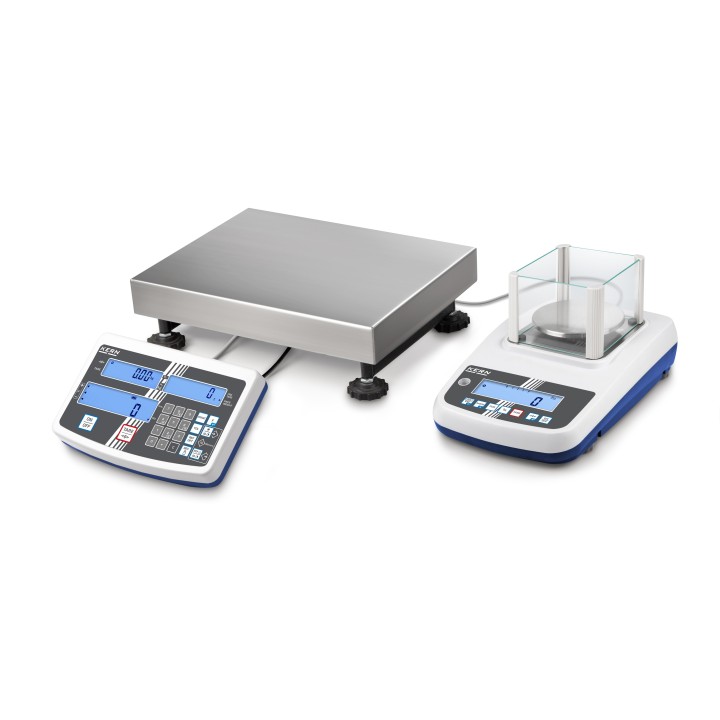

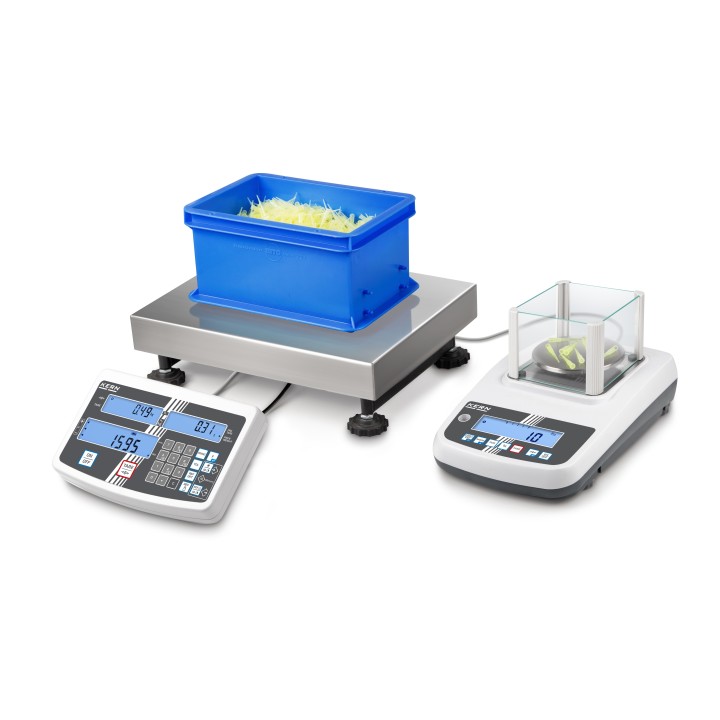

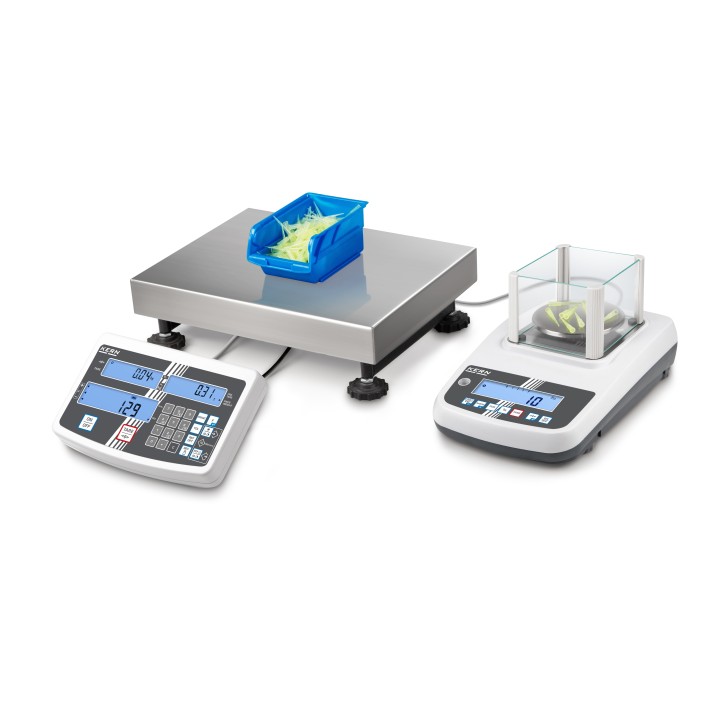

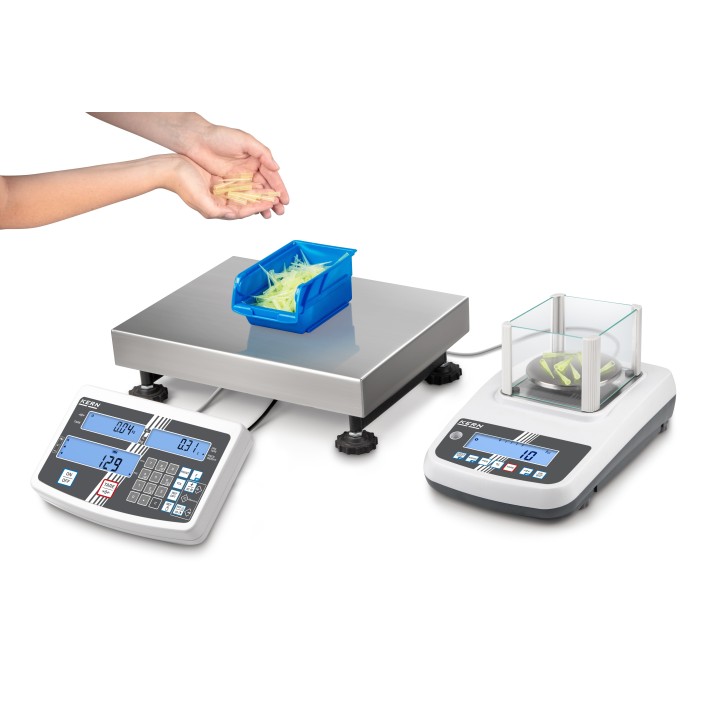

Name: Counting system KERN CCA 6K-5M
Brand: KERN
SKU: CCA 6K-5M
Price: 936 EUR
Availability: InStock

KERN

€1,040.00 (Save 10%)

€936.00

Tax excluded

High-resolution counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999, verification optional

TECHNICAL DATA

Quantity scale - Weighing capacity [Max]	3 kg; 6 kg
Reference scale - Readability [d]	10 mg
Units	kg
Dimensions weighing platform (W×D×H)	300×240×105 mm
Dimensions weighing surface (W×D)	300×240 mm
Reference scale - Linearity	30 mg
Quantity scale - Linearity	0,001 kg; 0,002 kg
Ambient temperature	0 °C – 40 °C
Smallest piece weight when piece counting - normal conditions	200 mg
Conformity assessment possible ex works
Display type	LCD
Display digit height	20 mm
Material weighing plate	coated metal
Display device cable length	5 m
Material housing	plastic
Net weight approx.	9 kg
IP protection - complete device	IP23
IP protection - platform	IP65
IP protection - load cell	IP65

The highly accurate KERN counting system can replace a whole range of individual balances, efficiently and at a reasonable price
Thanks to EC type approval [M] this counting system can also be used in verified applications, e.g. for order picking packaged items, etc.
The balances are connected to one another with an RS 232 Y-cable, which also allows you to connect an end unit, such as, for example, signal lamps, barcode scanners or printers (KERN TCCA-A01-A, included in the scope of supply)

Reference scale KERN EWJ

This professional precision scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
Concept of easy use: All primary functions have their own key on the keypad
Automatic internal adjustment time-controlled every 2 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
Draft shield standard, weighing space W×D×H 134×128×80 mm
Protective working cover included with delivery

Quantity scale KERN IFS

The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN . In this way even the smallest of parts can be counted in large volumes
Tough industry standard suitable for use in harsh industrial applications
Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
Three displays for total weight (verifiable), piece weight, total quantity
100 item memories for master data, such as item number, PRE-TARE (container weight), reference quantity, refere. weight etc.
Precise counting: The manual optimisation of reference weight gradually improves the average value of the piece weight
Totalising of pieces when counting
Printout with date and time
Aluminium singlepoint load cell (1x3000e), protection against dust and water splashes IP65
Protective working cover included with delivery
