SAUTER 283

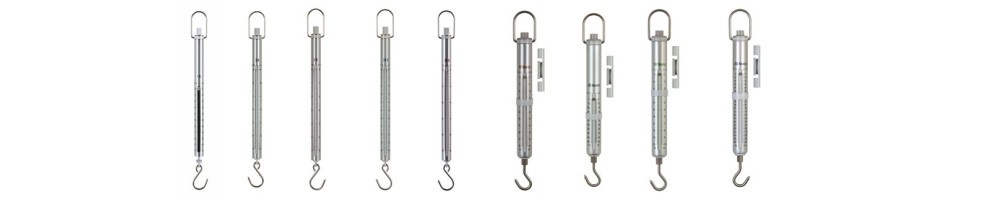

Mechanical force gauge SAUTER 283

Precise, mechanical force gauge in robust aluminium housing with Newton readout

  • Aluminium scale tube: robust, long service life, rustproof
  • Newton scale: Measuring result display in Newton
  • Compressive force measurement: possible using an optional pressure set, see accessories
  • Carrying handle standard
  • Drag pointer standard for all models in the series SAUTER 283 with [Max] ≥ 50 N
  • Handrail: thanks to the rotating handrail the scale can always be aligned to be at the very best line of sight, for all models in the series SAUTER 283 with [Max] ≥ 50 N
  • Non-fatigue stainless steel spring
  • No power supply required, independent Ready for use at any location
  • Clip eyelet with free rotation of the lower suspension by 360°
  • High-quality workmanship: Wear-resistant, colour-anodised precision scale with high resolution for accurate readout of the measuring result

Technical data SAUTER 283

  • Measuring precision: ± 0,3 % of [Max]
  • Tare range: 20 % of [Max]
Model
Measuring
capacity
[Max]
N
Readability
[d]
N
Load
support
Dimensions
L min
mm
Dimensions
L max
mm
Diameter

mm
Option
Factory
calibration
certificate
1
0,01
Clip
225
305
12
+
3
0,02
Clip
225
325
12
-
6
0,05
Clip
225
325
12
+
10
0,1
Hook
225
325
12
+
25
0,2
Hook
225
325
12
+
50
0,5
Hook
370
510
32
+
100
1
Hook
370
510
32
+
200
2
Hook
370
510
32
+
500
5
Hook
370
460
32
+

Mechanical force gauge SAUTER 283

Active filters

SAUTER SAUTER 283-152 mechanical force gauge 1 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)1 N
Readability force [d] (N)0,01 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])225 mm
Length loaded (l [Max])305 mm
Housing diameter (Ø)12 mm
Dimensions completely mounted (W×D×H)225×12×12 mm
Material housingaluminium
€97.75 Regular price €115.00
SAUTER SAUTER 283-252 mechanical force gauge 3 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)3 N
Readability force [d] (N)0,02 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])225 mm
Length loaded (l [Max])325 mm
Housing diameter (Ø)12 mm
Dimensions completely mounted (W×D×H)225×12×12 mm
Material housingaluminium
€115.20 Regular price €128.00
SAUTER SAUTER 283-302 mechanical force gauge 6 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)6 N
Readability force [d] (N)0,05 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])225 mm
Length loaded (l [Max])325 mm
Housing diameter (Ø)12 mm
Dimensions completely mounted (W×D×H)222×22×12 mm
Material housingaluminium
€115.20 Regular price €128.00
SAUTER SAUTER 283-402 mechanical force gauge 10 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)10 N
Readability force [d] (N)0,1 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])225 mm
Length loaded (l [Max])325 mm
Housing diameter (Ø)12 mm
Dimensions completely mounted (W×D×H)225×12×12 mm
Material housingaluminium
€112.50 Regular price €125.00
SAUTER SAUTER 283-422 mechanical force gauge 25 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)10 N
Readability force [d] (N)0,1 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])225 mm
Length loaded (l [Max])325 mm
Housing diameter (Ø)12 mm
Dimensions completely mounted (W×D×H)225×12×12 mm
Material housingaluminium
€112.50 Regular price €125.00
SAUTER SAUTER 283-483 mechanical force gauge 50 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)50 N
Readability force [d] (N)0,5 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])370 mm
Length loaded (l [Max])510 mm
Housing diameter (Ø)32 mm
Dimensions completely mounted (W×D×H)370×32×32 mm
Material housingaluminium
€229.50 Regular price €255.00
SAUTER SAUTER 283-502 mechanical force gauge 100 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)100 N
Readability force [d] (N)1 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])370 mm
Length loaded (l [Max])510 mm
Housing diameter (Ø)32 mm
Dimensions completely mounted (W×D×H)225×12×12 mm
Material housingaluminium
€234.00 Regular price €260.00
SAUTER SAUTER 283-602 mechanical force gauge 200 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)200 N
Readability force [d] (N)2 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])370 mm
Length loaded (l [Max])510 mm
Housing diameter (Ø)32 mm
Dimensions completely mounted (W×D×H)370×32×32 mm
Material housingaluminium
€243.00 Regular price €270.00
SAUTER SAUTER 283-902 mechanical force gauge 500 N

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N)500 N
Readability force [d] (N)5 N
Tolerance (% of [Max])0,3%
Load support (tensile force)Hook
Length unloaded (l [Min])370 mm
Length loaded (l [Max])510 mm
Housing diameter (Ø)32 mm
Dimensions completely mounted (W×D×H)370×32×32 mm
Material housingaluminium
€288.00 Regular price €320.00
