Stainless steel scales

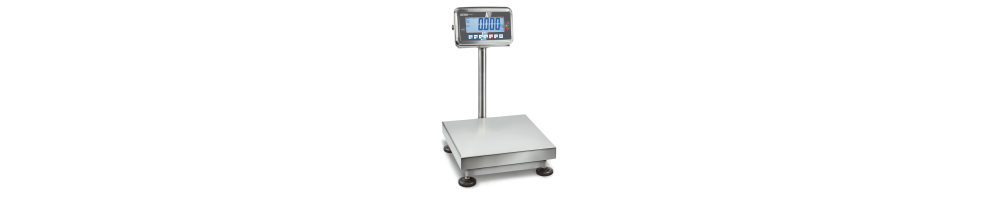

Stainless steel scales protected against dust and water splashes

Scales used in industrial situations or the food industry are often exposed to extreme stresses and strains. Water, oils, fats, varnish, dust, dirt, flour, small parts etc. are all natural enemies of a scale. In industries such as the chemical, pharmaceutical, food, manufacturing industries, etc. scales must be able to cope with these stresses without this affecting their performance.

For use in such harsh environmental conditions, levels of protection are defined, which specify which environmental stresses a system can be exposed to with respect to the level of contact, foreign object and moisture protection, without damage being caused to the unit. These levels of protection are described in the following standard: “DIN EN 60529: protection types through housing” The IP code usually consists of a two-digit combination, which gives the relevant level of protection, e.g. IP68.

High quality stainless steel

All stainless steel components of the IP65...68 protected KERN stainless steel scales are made of corrosion-resistant steel of quality class 1.4301 (DIN X5CrNi18-10). The material properties support you in your HACCP-compliant quality system.

.

Stainless steel scales Protection type DIN EN 60529

Stainless steel scales protected against dust and water splashes

Active filters

KERN KERN FOB 0.5K-4NS Stainless steel food scale

Compact stainless food scale with protection type IP65 against dust and water splashes

TECHNICAL DATA KERN FOB 0.5K-4NS

Weighing capacity [Max]500 g
Readability [d]0,1 g
Dimensions weighing platform (W×D×H)150×120×8 mm
Reproducibility0,1 g
Linearity± 0,2 g
Ambient temperature10 °C – 35 °C
Battery operating time - backlight off20 h
Display typeLCD
Display digit height20 mm
Material weighing platestainless steel
Material platformStainless steel
Material housingstainless steel
Net weight approx.0,80 kg
IP protection - complete deviceIP65
Weighing unitsg lb
€112.50 Regular price €125.00
KERN KERN EOC 6K-3 Platform scale

Robust and high-resolution platform scale with practical Flip/Flop display device for greatest ease of use

Technical Data KERN EOC 6K-3

Weighing capacity [Max]3 kg | 6 kg
Readability [d]1 g | 2 g
Unitskg, g, lb, oz, PCS
Dimensions weighing platform (W×D×H)300×300×110 mm
Dimensions weighing surface (W×D)300×300 mm
Reproducibility1 g | 2 g
Linearity± 3 g | 6 g
Ambient temperature-10 °C – 40 °C
Smallest piece weight when piece counting - normal conditions20 g
Display typeLCD
Display digit height25 mm
Material weighing platestainless steel
Material platformmild steel
Display device cable length3 m
Tolerance weighing
Net weight approx.6 kg
IP protection - complete device-
IP protection - displayno IP protection
IP protection - platformIP65
IP protection - load cellIP65
€283.50 Regular price €315.00
