SAUTER FL-M

Digital force gauge SAUTER FL-M external cell

Digital force gauge SAUTER FL-M

Premium force-measuring device with graphics display for tensile and compressive force measurement with external measuring cell

  • Premium force-measuring device external measuring cell, tension loops included with delivery
  • Turnable display with backlight
  • Real time or Peak Hold Mode to observe transcients or capture peaks
  • Metal housing for durable usage in harsh environmental conditions
  • Can be mounted on all SAUTER test stands
  • Capacity display: A bar lights up to show how much of the measuring range is still available
  • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed, in pull and push direction. The process is supported by an acoustic and visual signal
  • Internal memory for up to 500 measurements
  • Continuous analogue output: Linear voltage signal in relation to the load (-2 – +2 V)
  • Selectable measuring units: N, kN, kg, oz, lb
  • Delivered in a hard carrying case

Features SAUTER FL-M

  • Peak hold function: capturing a peak value within a measuring process.
  • Push and Pull: the measuring device can capture tension and compression forces.
  • Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.
  • Data interface RS-232: To connect the balance to a printer, PC or network
  • USB data interface: To connect the balance to a printer, PC or other peripherals.
  • Analog Data Interface
  • GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
  • Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
  • Measuring with tolerance range  (limit-setting function):  Upper and lower limiting can be programmed individually. The process is supported by an audible or visual signal, see the relevant model
  • Rechargeable battery pack: rechargeable set
  • Mains part: 100-230V/50-60Hz

Option

  • PC software: to transfer the measurements from the device to a PC.
  • Calibration certificate possible.

Accessories SAUTER FL-M

  • Plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®,  SAUTER AFI-1.0
  • Data transfer software with graphic  display of the measurement process SAUTER AFH FAST
  • Force-displacement only in combination with SAUTER LD - SAUTER AFH LD
  • Force-displacement only in combination with SAUTER LB - SAUTER AFH FD
  • USB cable, as standard, can be reordered SAUTER FL-A01
  • RS-232 adapter cable SAUTER FL-A04

ALL MODELS

Model
Measuring
capacity
[Max]
N
Readability
[d]
N
Option
Factory
calibration
certificate (Tension)
Option
Factory
calibration
certificate (Compressio)
Option
Factory calibration
certificate (T+C)
FL 2K
2500
1
FL 5K
5000
2
FL 10K
10000
5
FL 20K
20000
10

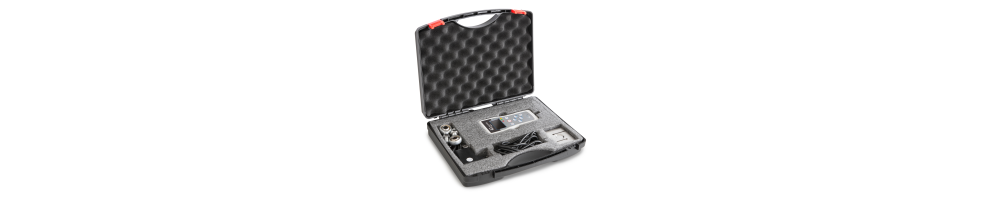

Force gauge SAUTER FL-M with external measuring cell

Active filters

SAUTER SAUTER FL 2K force gauge with external load cell

Powerful digital force gauge with graphic assisted display for tensile and compressive force measurements with external load cell

Technical Data SAUTER FL 2K

Measuring range force [Max] (N)2,5 kN
Readability force [d] (N)1 N
Tolerance (% of [Max])0,2%
Measuring head measuring frequency1000 Hz
Number of platforms / channels1
Supplied power supplyAccu & Power supply
Rechargeable battery4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)170×75×30 mm
Net weight approx.0,55 kg
InterfacesRS-232 standard, USB-Device, analogue (0 +/-2V)
€621.00 Regular price €690.00
SAUTER SAUTER FL 5K force gauge with external load cell

Powerful digital force gauge with graphic assisted display for tensile and compressive force measurements with external load cell

Technical Data SAUTER FL 5K

Measuring range force [Max] (N)5 kN
Readability force [d] (N)2 N
Tolerance (% of [Max])0,2%
Measuring head measuring frequency1000 Hz
Number of platforms / channels1
Supplied power supplyAccu & Power supply
Rechargeable battery4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)170×75×30 mm
Net weight approx.0,55 kg
InterfacesRS-232 standard, USB-Device, analogue (0 +/-2V)
€963.00 Regular price €1,070.00
SAUTER SAUTER FL 10K force gauge with external load cell

Powerful digital force gauge with graphic assisted display for tensile and compressive force measurements with external load cell

Technical Data SAUTER FL 10K

Measuring range force [Max] (N)10 kN
Readability force [d] (N)5 N
Tolerance (% of [Max])0,2%
Measuring head measuring frequency1000 Hz
Number of platforms / channels1
Supplied power supplyAccu & Power supply
Rechargeable battery4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)170×75×30 mm
Net weight approx.0,55 kg
InterfacesRS-232 standard, USB-Device, analogue (0 +/-2V)
€1,125.00 Regular price €1,250.00
SAUTER SAUTER FL 20K force gauge with external load cell

Powerful digital force gauge with graphic assisted display for tensile and compressive force measurements with external load cell

Technical Data SAUTER FL 20K

Measuring range force [Max] (N)20 kN
Readability force [d] (N)10 N
Tolerance (% of [Max])0,2%
Measuring head measuring frequency1000 Hz
Number of platforms / channels1
Supplied power supplyAccu & Power supply
Rechargeable battery4,8 V 750 mA
Memory function
Limit-setting function
Hold function
Peak function
Material housingmetal, lacquered
Dimensions completely mounted (W×D×H)170×75×30 mm
Net weight approx.0,55 kg
InterfacesRS-232 standard, USB-Device, analogue (0 +/-2V)
€1,161.00 Regular price €1,290.00
