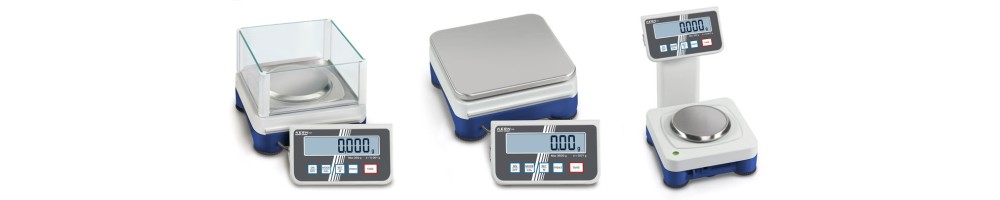

KERN PCD

High-resolution precision balance with removable display for maximum flexibility

• Laboratory balance with separate platform: Ideal when working in the glove bag or fume cupboard. Particularly practical for weighing toxic, volatile or contaminated substances
• PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
• Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
• Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
• Draught shield standard for models with weighing plate size Ø mm, weighing space W×D×H 146×146×80 mm
• Protective working cover included with delivery

Note: Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers 911-013, YKN-01, YKB-01N, YKE-01 and YKC-01 (in combination with YKI-02). You can easily download the software here (unfortunately it cannot be sent out as a CD): Software full-version

Features KERN PCD

• Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
• Data interface RS-232: To connect the balance to a printer, PC or network
• GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
• Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
• Recipe level A: Separate memory for the weight of the tare container and the recipe ingredients (net total).
• Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
• Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
• Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
• Battery operation: The battery type is specified for each device.
• Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
• Measuring System: Strain gauge

Technical data KERN PCD

• Large backlit LCD display, digit height 21 mm
• Dimensions weighing surface ∅ 105 mm and 160 x 160 mm
• Weighing plate material plastic or Stainless Steel
• Dimensions of display device W×D×H 165 x 280 x 141 mm
• Optional battery operation, 9 V block not included in scope of delivery, operating time up to 12 h, AUTO-OFF function to preserve the battery
• Overall dimensions W×D×H, without draught shield 165×280×75 mm
• Cable length of display device approx. 1,2 m
• Net weight approx.  1,2 kg
• Permissible ambient temperature 5 °C/35 °C
