- CE and RoHS compliant
- Accuracy class L
- protection against dust and water splashes IP65 (in accordance with EN 60529)
- Aluminium, anodised
- Suitable for price-computing scales, bench scales, platform scales, etc.
- Maximum platform size 200×200 mm
- 4-wire connection
- Nominal sensitivity: 0,9 mV/V
Measuring cells

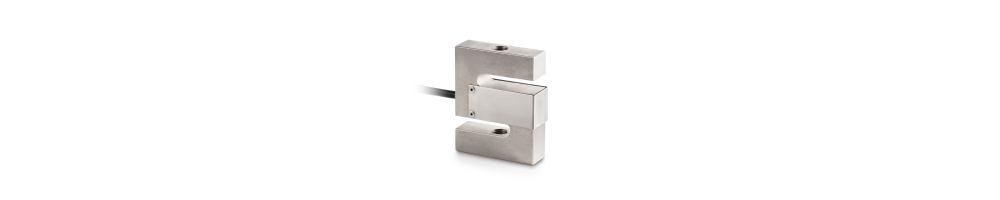

Measuring cells made of stainless steel or aluminium
Accuracy classes with nominal loads from 300 g to 100 t and protection classes up to IP69K as well as cells protected according to ATEX or OIML approved cells are available to you from now in the SAUTER product range. Whatever the project – whether it’s the development of customised weighing systems, installation in silos and storage tanks or in shelving for continuous inventory, for special application in mechanical engineering or in any type of test bench – SAUTER can offer you just the right measuring cell.
Of course, we can also supply you with the appropriate accessories such as load corners, pivot heads, display devices, junction boxes or the relevant calibration certificate at the same time.
Subcategories
-
SAUTER CS Q1
SAUTER CS Q1 6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 50-3Q1
Weighing capacity [Max] | 50 kg |
Measuring range force [Max] (N) | 500 N |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
The robust aluminium cast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use with protection against dust and water splashes IP65
- Prepared for 4-wire and 6-wire measuring cells
- Models available for 2, 4, 6 or 8 load cells
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 100-3Q1
Weighing capacity [Max] | 100 kg |
Measuring range force [Max] (N) | 1 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
The robust aluminium cast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use with protection against dust and water splashes IP65
- Prepared for 4-wire and 6-wire measuring cells
- Models available for 2, 4, 6 or 8 load cells
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 150-3Q1
Weighing capacity [Max] | 150 kg |
Measuring range force [Max] (N) | 1.5 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
- RoHS compliant
- protection against dust and water splashes IP65
- Area of application: Tensile and compressive applications , weight and force measurement
- Suitable for hanging scales, silo scales, force test benches and other types of balances
S measuring cells and S load cells made from stainless steel
- Combined Error: 0,050 %
- Load cell connection: 4-wire
- Nominal sensitivity: 2
- Weighing capacity [Max]: 1 kg
- Cable length: 2 m
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 200-3Q1
Weighing capacity [Max] | 200 kg |
Measuring range force [Max] (N) | 2 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
Miniature S load cell made from stainless steel
Nominal Load: 2 kg/20 N
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 300-3Q1
Weighing capacity [Max] | 300 kg |
Measuring range force [Max] (N) | 3 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
Miniature S load cell made from stainless steel
Nominal Load: 5 kg/50 N
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 500-3Q1
Weighing capacity [Max] | 500 kg |
Measuring range force [Max] (N) | 5 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
Miniature S load cell made from stainless steel
Nominal Load: 10 kg/100 N
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 1000-3Q1
Weighing capacity [Max] | 1000 kg |
Measuring range force [Max] (N) | 10 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
Miniature S load cell made from stainless steel
Nominal Load: 20 kg/200 N
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 1500-3Q1
Weighing capacity [Max] | 1500 kg |
Measuring range force [Max] (N) | 15 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M16 |
Mounting - force dissipation | Threaded hole M16 |
- Miniature button stainless steel IP67 (acc. to EN 60529) load cell
- Force measuring compatible
- RoHS conform
- Suitable for testing facilities and test stands
- High precission (comprehensive Error 0,5%F.S.)
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 2000-3Q1
Weighing capacity [Max] | 2000 kg |
Measuring range force [Max] (N) | 20 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M16 |
Mounting - force dissipation | Threaded hole M16 |
- Miniature button stainless steel IP65 (acc. to EN 60529) load cell
- Force measuring compatible
- RoHS conform
- Suitable for testing facilities and test stands
- Tension and compression measuring
- High precision (comprehensive Error 0,3%F.S.)
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 3000-3Q1
Weighing capacity [Max] | 3000 kg |
Measuring range force [Max] (N) | 30 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M24 |
Mounting - force dissipation | Threaded hole M24 |
- Miniature button stainless steel IP67 (acc. to EN 60529) measuring and load cell
- Force measuring compatible
- RoHS conform
- Suitable for testing facilities and test stands
- Tension and compression measuring
- High precision (comprehensive Error 0,5%F.S.)
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 5000-3Q1
Weighing capacity [Max] | 5000 kg |
Measuring range force [Max] (N) | 50 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M24 |
Mounting - force dissipation | Threaded hole M24 |
6-wire connection: 2 additional wires to maintain a constant voltage supply at the load cell when used with proper instrumentation. Use specially when long wires and wide temperature range
- Nickel plated alloy steel IP67 (acc. to EN 60529) “S” type load cell
- Force measuring compatible
- Tension and compression applications
- RoHS conform
- Suitable for hanging, hopper and other weighing devices
- Suitable for testing facilities and test stands
- Accuracy OIML R60 C3
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 6000-3Q1
Weighing capacity [Max] | 6000 kg |
Measuring range force [Max] (N) | 60 kN |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M24x2 |
Mounting - force dissipation | Threaded hole M24x2 |
