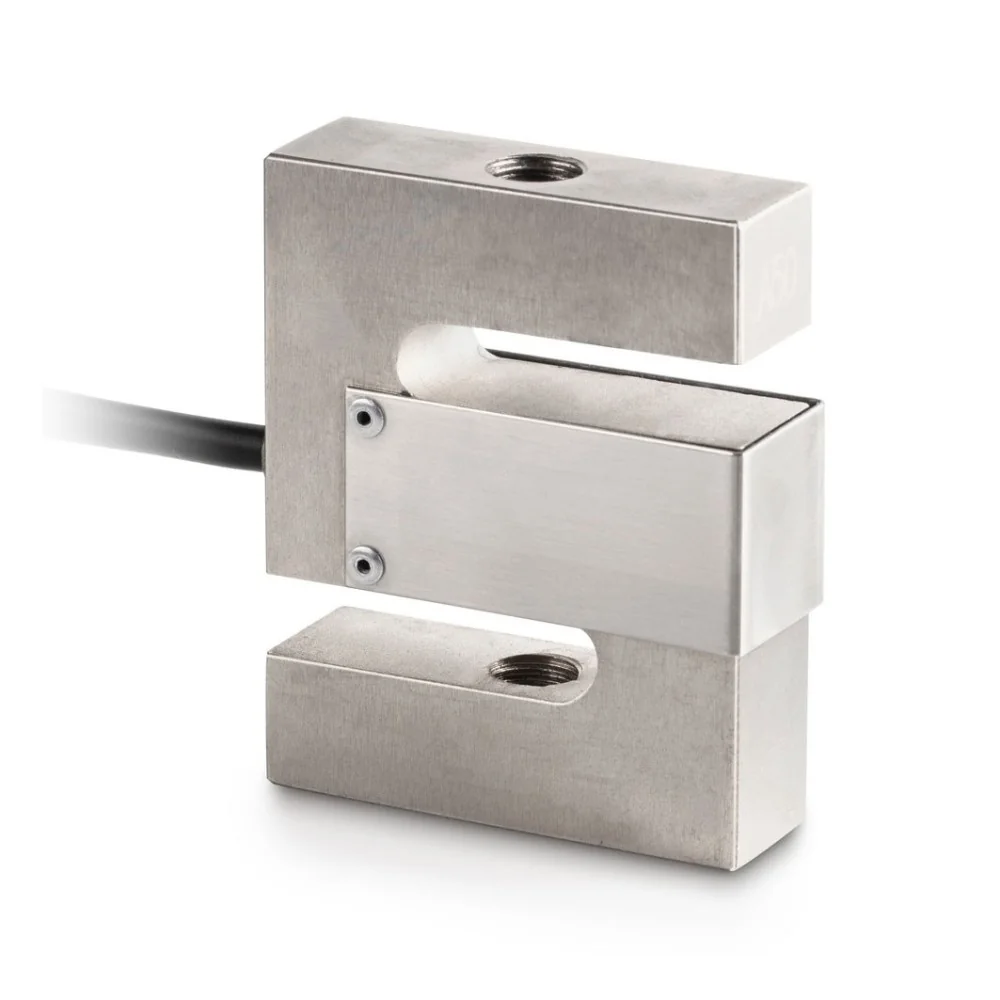

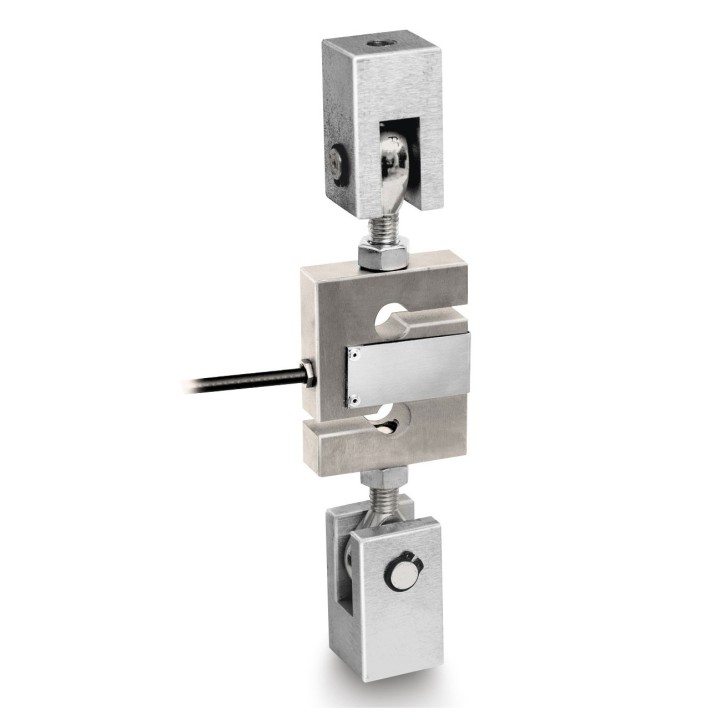

SAUTER CS 50-3Q1 Load and force measuring cell
CS 50-3Q1
6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement
Technical Data SAUTER CS 50-3Q1
Weighing capacity [Max] | 50 kg |
Measuring range force [Max] (N) | 500 N |
Design | "S" shaped cell |
Directions of force | tension, compression |
Measuring applications | force, mass |
Load cell - Combined error | 0,017% |
Load cell OIML class | C3 |
Load cell - Resolution (verifiable) | 3000 e |
Load cell - Y-value | 10000 |
Load cell - characteristic value - nominal | 2 mV/V |
IP protection - complete device | IP67 |
Material | steel, nickel-plated |
Load cell connection | 6-wire |
Cable length | 5 m |
Mounting - force application | Threaded hole M12 |
Mounting - force dissipation | Threaded hole M12 |
