SAUTER CS Q1

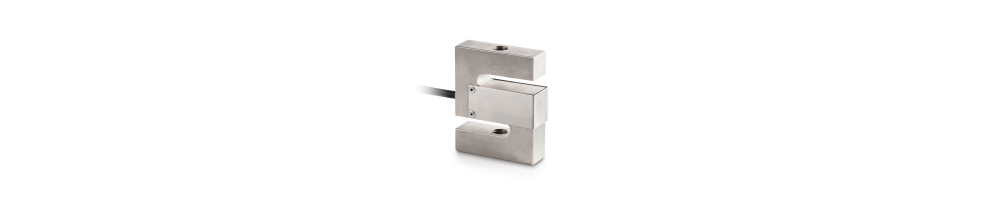

SAUTER CS Q1 6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

Technical data

• Accuracy in accordance with OIML R60 C3
• RoHS compliant
• Protection against dust and water splashes IP67 (in accordance with EN 60529), ermetically encapsulated
• Nickelplated steel
• Area of application: for tensile and compressive force measurement
• Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands
• 6 wire connection
• Nominal sensitivity: 2 mV/V
• Cable length: 5 m

With 6-wire measuring circuits, the cable can be shortened without affecting the  temperature compensation and the actual characteristic value. For 4wire measuring  circuits the cable length should not be changed
