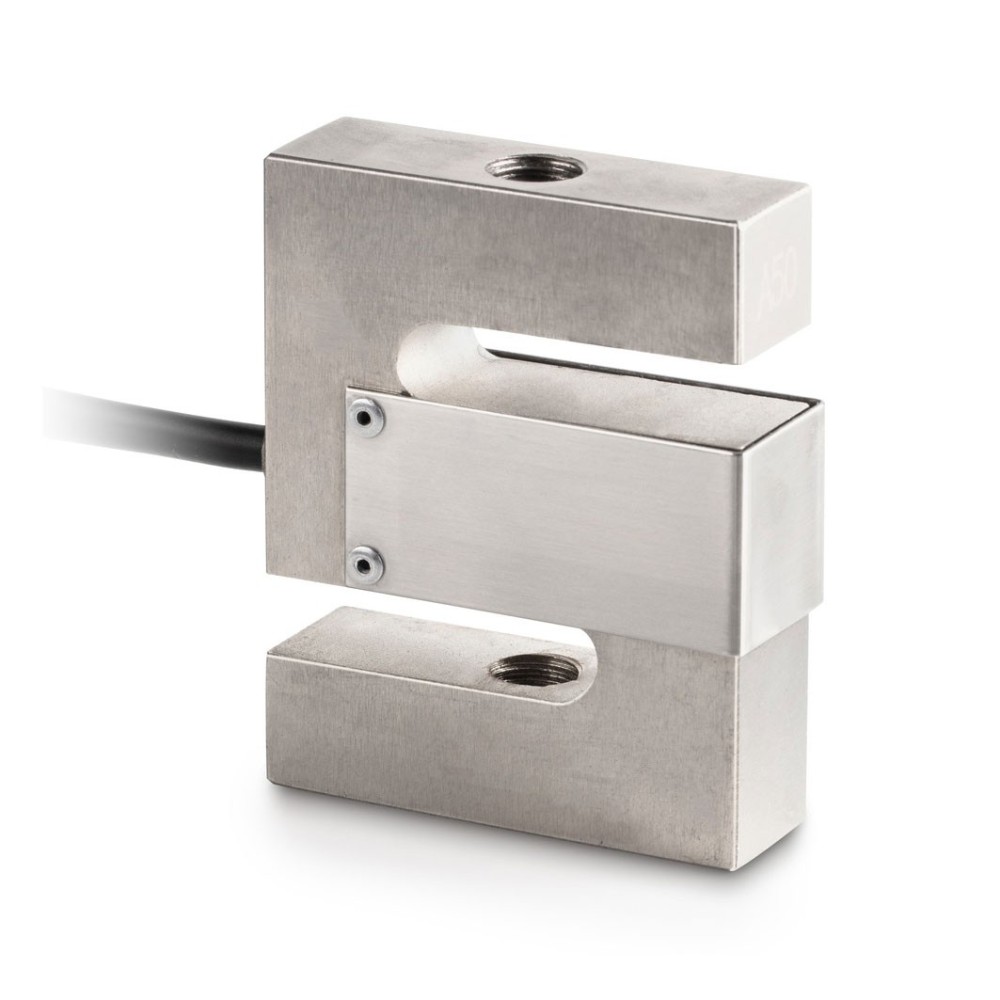

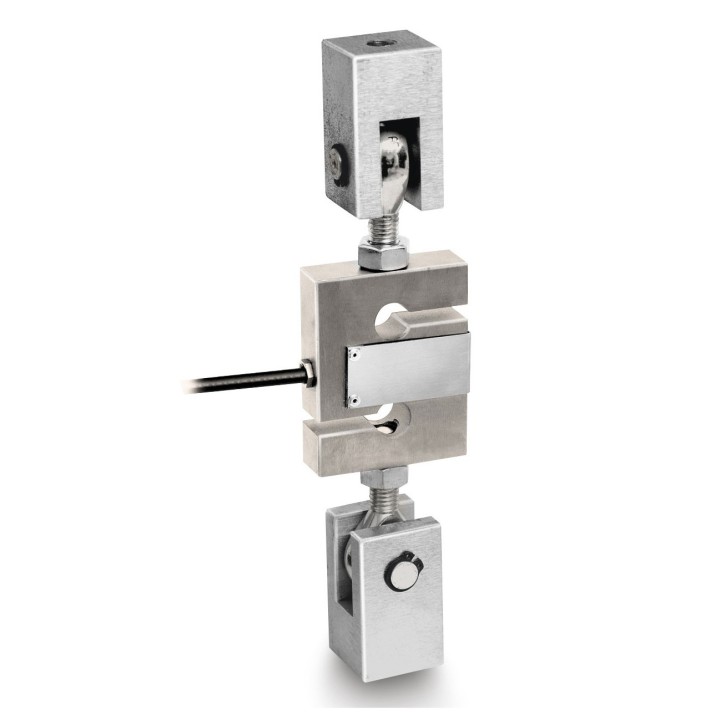

SAUTER CS 5000-3Q1 Load and force measuring cell

SAUTER CS 5000-3Q1 Load and force measuring cell

SAUTER
CS 5000-3Q1

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

Technical Data SAUTER CS 5000-3Q1

Weighing capacity [Max] 5000 kg
Measuring range force [Max] (N) 50 kN
Design "S" shaped cell
Directions of force tension, compression
Measuring applications force, mass
Load cell - Combined error 0,017%
Load cell OIML class C3
Load cell - Resolution (verifiable) 3000 e
Load cell - Y-value 10000
Load cell - characteristic value - nominal 2 mV/V
IP protection - complete device IP67
Material steel, nickel-plated
Load cell connection 6-wire
Cable length 5 m
Mounting - force application Threaded hole M24
Mounting - force dissipation Threaded hole M24
Hurry! only 11 items left in stock.
€333.00
€370.00
Save 10%
Tax excluded
Quantity

RoHS compliant

Area of application: for tensile and compressive force measurement

Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands

: CS 5000-3Q1
