SAUTER CS 2000-3Q1 Load and force measuring cell

Name: SAUTER CS 2000-3Q1 Load and force measuring cell
Brand: SAUTER
SKU: CS 2000-3Q1
Price: 225.00 EUR
Availability: InStock

Brand : SAUTER

Reference : CS 2000-3Q1

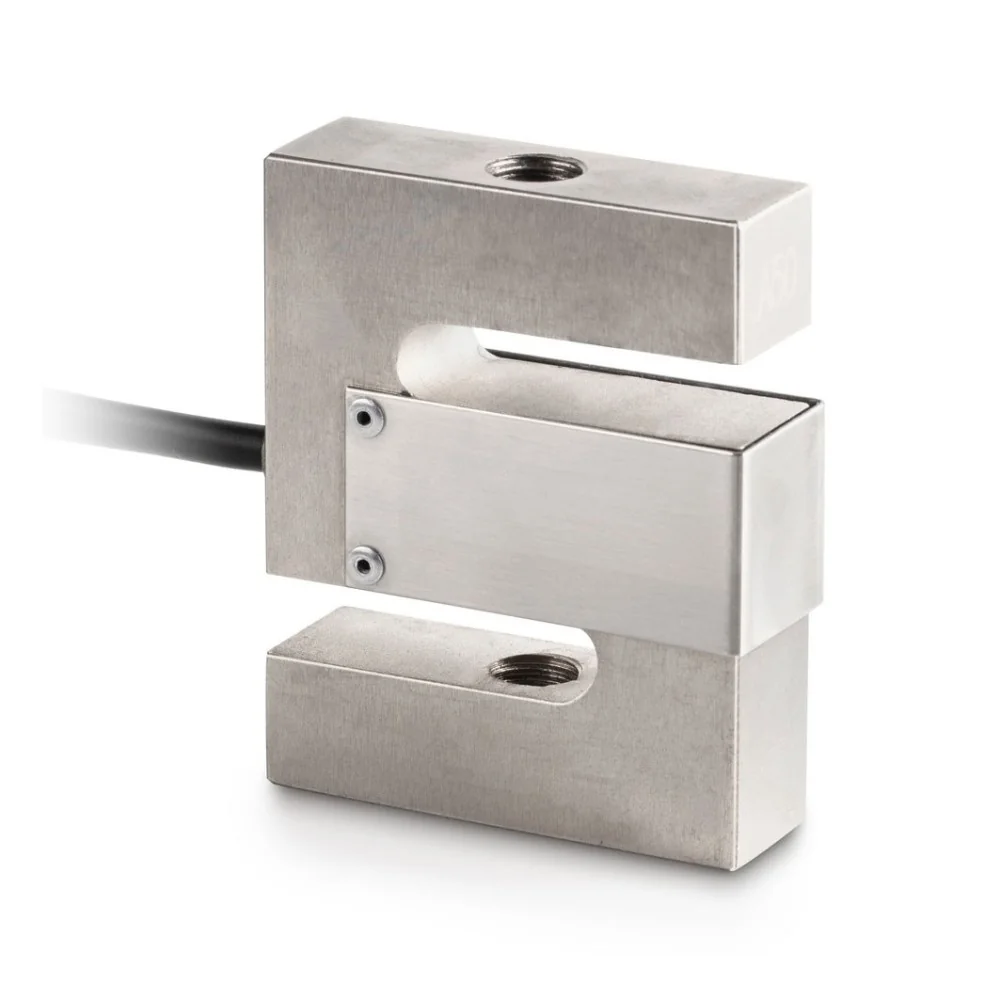

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

Technical Data SAUTER CS 2000-3Q1

Weighing capacity [Max]	2000 kg
Measuring range force [Max] (N)	20 kN
Design	"S" shaped cell
Directions of force	tension, compression
Measuring applications	force, mass
Load cell - Combined error	0,017%
Load cell OIML class	C3
Load cell - Resolution (verifiable)	3000 e
Load cell - Y-value	10000
Load cell - characteristic value - nominal	2 mV/V
IP protection - complete device	IP67
Material	steel, nickel-plated
Load cell connection	6-wire
Cable length	5 m
Mounting - force application	Threaded hole M16
Mounting - force dissipation	Threaded hole M16

Guarantee safe checkout

RoHS compliant

Area of application: for tensile and compressive force measurement

Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands
