KERN DS

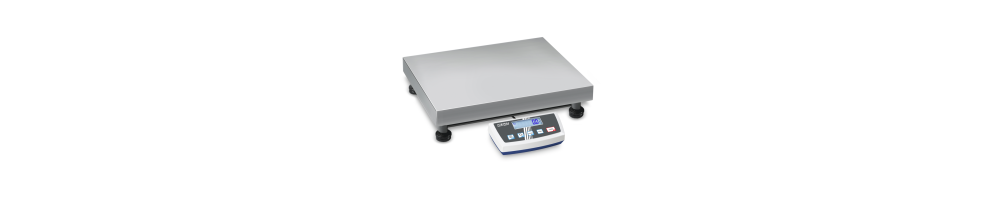

Platform scale KERN DS
Precision industrial scale with laboratory accuracy
High-resolution scale in heavy version, ideal for high volume or heavy samples to be weighed with a high degree of accuracy
User guidance step by step on display by Yes/No dialogue
Numerical subtraction of tare weight for known container weight. Useful for checking fill-levels
Precise counting: The automatic reference weight optimisation of reference weight gradually improves the averag piece weight value
Freely programmable weighing unit, e. g. display directly in special units such as length of wire g/m, paper weight g/m2, or similar
KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS 232 or USB, for the exchange of data and control commands, without any installation outlay
KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers
Standardised, simplified concept of operation
Protective working cover included with delivery
Features KERN DS
- Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
- KERN Universal Port (KUP): allows the connection of external KUP interface adapters, e.g. RS-232, RS-485, SB, Bluetooth, WLAN, Analogue, Ethernet etc. for the exchange of data and control commands, without installation effort
- KERN Communication Protocol (KCP): It is a standardized interface command set for KERN balances and other instru ments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems
- GLP/ISO log: with weight, date and time. Only with KERN printers, see Accessories
- Piece counting: Reference quantities selectable. Display can be switched from piece to weight.
- Totalising level A: The weights of similar items can be added together and the total can be printed out.
- Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.
- Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
- Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.
- Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA
- Measuring System Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
Option KERN DS
- Data interface RS-232: To connect the balance to a printer, PC or network
- USB data interface: To connect the balance to a printer, PC or other peripherals.
- Suspended weighing: load support with hook on the underside of the balance.
- Rechargeable battery pack: rechargeable set
- DAkkS calibration possible
Technical data KERN DS
- Cable length of display device: 2 m
- Casing material: plastic
- Dimensions of display device (W×D×H): 225 x 115 x 60 mm
- Level indicator
- Material weighing plate: stainless steel
- Revolving screw feet
- Wall mount: yes
- Input voltage: 100-240V AC 50/60 Hz
- Mains adapter: Mains adapter external
- Mains adapter/adapter included: US UK EURO CH
- Weighing system: Strain gauge
- Weighing units: ffa ct oz ozt tl (HK) g mo lb tl (Singap. Malays) dwt tl (Tw)
- Maximum humidity: 80 %
- Maximum operating temperature: 40 °C
- Minimum ambient temperature: -10 °C
- Net weight: 4,100 kg
All Model
Model
|
Weighing
capacity [Max] kg |
Readability
[d] g |
Min. piece
weight (Normal) g/piece |
Counting
resolution Points |
Weighing plate
W×D×H mm |
---|---|---|---|---|---|
3
|
0,01
|
0,1
|
300000
|
228 × 228 × 95
|
|
5
|
0,05
|
0,1
|
500000
|
228 × 228 × 95
|
|
8
|
0,05
|
0,5
|
160000
|
308 × 318 × 75
|
|
10
|
0,1
|
1
|
100000
|
228 × 228 × 95
|
|
16
|
0,1
|
1
|
160000
|
308 × 318 × 75
|
|
20
|
0,1
|
1
|
200000
|
308 × 318 × 75
|
|
30
|
0,1
|
1
|
300000
|
308 × 318 × 75
|
|
30
|
0,1
|
1
|
300000
|
500 × 400 × 125
|
|
36
|
0,2
|
1
|
360000
|
308 × 318 × 75
|
|
36
|
0,2
|
1
|
360000
|
500 × 400 × 125
|
|
60
|
0,2
|
2
|
300000
|
500 × 400 × 125
|
|
65
|
0,5
|
2
|
325000
|
500 × 400 × 125
|
|
100
|
0,5
|
5
|
200000
|
500 × 400 × 125
|
|
150
|
1
|
10
|
150000
|
500 × 400 × 125
|

- Height of stand approx. 480 mm
- Suitable for Platform scales KERN DE and KERN DS
- (for models with weighing plate size W×D×H 308×318×75 mm and 450×350×115 mm)
DE-A11N Mount to fasten the display device to the platform for Platform scales KERN DE-D and KERN DS
Dimensions (WxDxH): 200mm x 100mm x 40mm
- Protective working cover for KERN DE, DS
- scope of delivery: 5 items
