KERN HFA

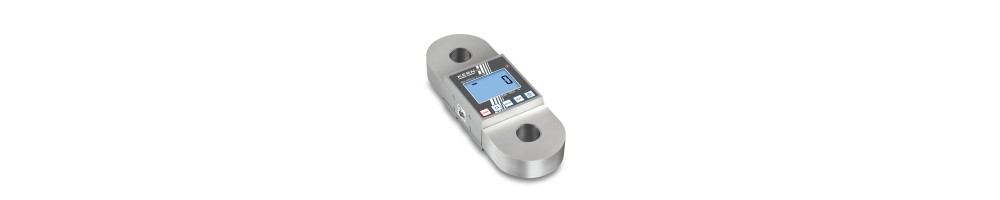

KERN HFA Compact crane scale

  • With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
  • With its high-quality finish, low weight and compact dimensions, this crane scale is an essential device for industrial use, on building sites, in freight centres, ports etc.
  • Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
  • Ideally suited for determining weight quickly while loading and unloading
  • Peak load display (peak hold)
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically "frozen" until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Material and design of housing/load support: steel/steel

Technical data KERN HFA

  • Large backlit LCD display, digit height 23 mm
  • Material and design of housing/load support: steel/steel
  • Rechargeable battery pack internal, operating time up to 30 h without backlight, charging time approx. 12 h
  • Optional battery operation, 3×1.5 V AA not included, operating time up to 40 h
  • Precision: 0,2 % of [Max]
  • Measuring frequency 60 Hz
  • Further weighing units: kg, lb, N
  • Permissible ambient temperature 5 °C/35 °C

KERN HFA Datasheet

KERN HFA Compact crane scale

Active filters

Crane scale KERN HFA 600K-1 hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN HFA 600K-1 Crane scale

Compact crane scale with integrated display

Technical Data KERN HFA 600K-1

Weighing capacity [Max]600 kg
Readability [d]200 g
Unitskg, lb, N
Reproducibility200 g
Linearity± 600 g
Ambient temperature5 °C – 35 °C
Display typeLCD
Display digit height23 mm
Material housingaluminium
Tolerance weighing
Net weight approx.1,8 kg
Housing dimensions (W×D×H)90×62×255 mm
Add to Compare
Add to Wishlist
€612.00 Regular price €680.00
Crane scale KERN HFA 1T-4 hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN HFA 1T-4 Crane scale

Compact crane scale with integrated display

Technical Data KERN HFA 1T-4

Weighing capacity [Max]1000 kg
Readability [d]500 g
Unitskg, lb, N
Reproducibility500 g
Linearity± 1 kg
Ambient temperature5 °C – 35 °C
Display typeLCD
Display digit height23 mm
Material housingaluminium
Tolerance weighing
Net weight approx.1,8 kg
Housing dimensions (W×D×H)90×62×255 mm
Add to Compare
Add to Wishlist
€612.00 Regular price €680.00
Crane scale KERN HFA 3T-3 hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN HFA 3T-3 Crane scale

Compact crane scale with integrated display

Technical Data KERN HFA 3T-3

Weighing capacity [Max]3000 kg
Readability [d]1 kg
Unitskg, lb, N
Reproducibility1 kg
Linearity± 2 kg
Ambient temperature5 °C – 35 °C
Display typeLCD
Display digit height23 mm
Material housingaluminium
Tolerance weighing
Net weight approx.2 kg
Housing dimensions (W×D×H)90×62×255 mm
Add to Compare
Add to Wishlist
€666.00 Regular price €740.00
Crane scale KERN HFA 5T-3 hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN HFA 5T-3 Crane scale

Compact crane scale with integrated display

Technical Data KERN HFA 5T-3

Weighing capacity [Max]5000 kg
Readability [d]2 kg
Unitskg, lb, N
Reproducibility2 kg
Linearity± 4 kg
Ambient temperature5 °C – 35 °C
Display typeLCD
Display digit height23 mm
Material housingsteel
Tolerance weighing
Net weight approx.4 kg
Housing dimensions (W×D×H)90×62×255 mm
Add to Compare
Add to Wishlist
€738.00 Regular price €820.00
Crane scale KERN HFA 10T-3 hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN HFA 10T-3 Crane scale

Compact crane scale with integrated display

Technical Data KERN HFA 10T-3

Weighing capacity [Max]10 t
Readability [d]5 kg
Unitskg, lb, N
Reproducibility5 kg
Linearity± 10 kg
Ambient temperature5 °C – 35 °C
Display typeLCD
Display digit height23 mm
Material housingsteel
Tolerance weighing
Net weight approx.6 kg
Housing dimensions (W×D×H)90×72×275 mm
Add to Compare
Add to Wishlist
€1,161.00 Regular price €1,290.00
KERN YSC-02 High-strength shackle for crane scales hover-image
  • -10%
Add to Compare
Add to Wishlist
KERN KERN YSC-02 High-strength shackle for crane scales

High-strength shackle, cast steel, hot-dip galvanised and lacquered, with screw bolts, suitable for models with [Max] > 5 t

Suitable for crane scales KERN HFA and KERN HFC (only for models with >= 5 t)

Scope of delivery: 2 pieces

Technical Data KERN YSC-02

Materialcast steel
Material platformstainless steel
Dimension (W×D×H)32×35×76 mm
Nominal load capacity (WLL)12500 kg
Net weight approx.4,4 kg
Add to Compare
Add to Wishlist
€243.00 Regular price €270.00
