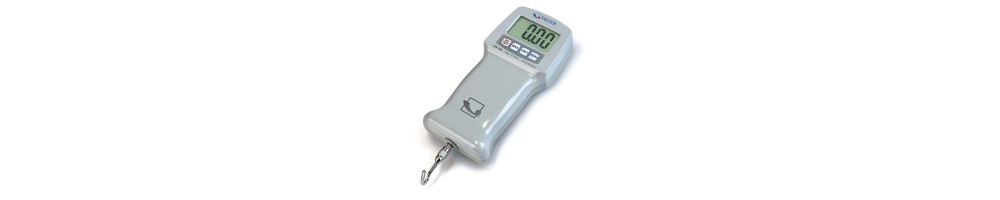

SAUTER FK Digital Force Gauges – Simple Push and Pull Force Measurement

Measure Force Quickly and Easily – Digital, Practical and Straightforward

The SAUTER FK digital force gauges are designed for quick and straightforward tension and compression force measurements. They are an excellent choice for users who need to measure force directly and read the result immediately on a digital display.

Whether in workshops, manufacturing facilities, maintenance departments or industrial quality control, the SAUTER FK series provides a practical solution for everyday mechanical testing.

Switch on. Measure force. Read the result.

The instruments focus on the essential functions of digital force measurement. A clear display, straightforward controls and compact design make them easy to use at different workplaces.

SAUTER FK force gauges measure both pulling and pushing forces, making them suitable for testing springs, switches, connectors and various mechanical components.

The integrated Peak Hold function allows users to capture the maximum force reached during a test. This is particularly useful when measuring connector extraction forces, mechanical release forces or the maximum load applied to a component.

The SAUTER FK series does not feature PC interfaces, software connectivity or electronic data transfer. Instead, it concentrates on providing immediate measurement results directly on the instrument.

For technicians, engineers, maintenance personnel and quality inspectors looking for an uncomplicated digital force gauge, SAUTER FK offers a practical and cost-effective solution.

SAUTER FK – Digital force measurement without unnecessary complexity.

Key Benefits of SAUTER FK Digital Force Gauges

• Quick force measurements: Start testing without complicated preparation.

• Simple operation: Straightforward controls for everyday measuring tasks.

• Digital display: Read measurement results directly and clearly.

• Push and pull measurement: Measure both compression and tension forces.

• Peak Hold function: Capture the maximum force reached during a test.

• Compact design: Practical for handheld measurements and different workplaces.

• Different measuring capacities: Select a suitable model for the required force range.

• Interchangeable attachments: Adapt the gauge to different mechanical components.

• Ideal for routine inspections: Suitable for quick functional checks and sample testing.

• No PC connection required: Measurements are performed directly on the instrument.

• No software needed: Straightforward operation without additional applications.

• Cost-effective solution: A practical choice when digital data transfer is unnecessary.

Digital Push and Pull Force Measurement with SAUTER FK

Pull Force Measurement – Simple Tension Testing

Pull force measurement involves applying a tensile load to a component.

Using a suitable pulling attachment, the SAUTER FK allows the operator to measure the force directly.

Typical applications include:

• Tension spring testing

• Connector extraction force measurement

• Mechanical retention testing

• Release force inspection

• Pull-force testing of mechanical components

The Peak Hold function is particularly useful when the maximum force occurs only briefly during the test.

Push Force Measurement – Practical Compression Testing

Compression testing involves applying a pushing force to a component or mechanism.

With a suitable compression attachment, the SAUTER FK can be used to measure operating forces and mechanical resistance.

Typical applications include:

• Compression spring testing

• Push-button actuation force measurement

• Mechanical switch testing

• Compression force checks

• Basic mechanical functional inspections

The digital display allows the applied force to be read immediately.

Peak Hold – Capture the Maximum Applied Force

What Is Peak Hold?

In many mechanical testing applications, the maximum force reached during a test is more important than the force currently being applied.

The Peak Hold function of the SAUTER FK allows the maximum measured force to be retained on the display.

This is useful when a component suddenly releases, separates or changes its mechanical position.

Example: Connector Extraction Force

A connector is pulled from its mating component.

As the pulling force increases, the resistance rises until the connection separates.

Immediately after separation, the applied force decreases.

With Peak Hold activated, the maximum force reached during the extraction can be read afterwards.

Typical Peak Hold Applications

• Connector extraction testing

• Maximum spring-force measurement

• Mechanical latch release testing

• Retention-force inspection

• Snap-fit connection testing

• Maximum actuation-force measurement

Peak Hold provides a practical way to identify maximum forces without requiring a computer or external recording equipment.

Applications of SAUTER FK Digital Force Gauges

Workshops and Maintenance

Mechanical components often need to be checked quickly during maintenance and repair work.

The SAUTER FK can be used to measure spring forces, operating forces and mechanical resistance.

Its straightforward operation makes it particularly suitable for occasional measurements and everyday workshop tasks.

Manufacturing and Production

In manufacturing environments, push and pull forces can provide important information about component performance.

SAUTER FK force gauges can support basic functional inspections and sample testing directly at the workplace.

The measurement result is immediately available on the digital display.

Industrial Quality Control

Not every quality inspection requires an extensive testing system.

For straightforward mechanical measurements, a compact digital force gauge can be a practical solution.

SAUTER FK instruments are suitable for basic checks involving springs, connectors, switches and mechanical assemblies.

When required, results can be read from the display and entered manually into inspection records.

Mechanical Engineering

Mechanical engineers frequently need to evaluate operating forces, spring forces and mechanical resistance.

The SAUTER FK series provides direct digital force readings for these everyday testing applications.

Technical Education and Training

Easy-to-operate force gauges are also useful in technical education.

SAUTER FK instruments can help demonstrate basic principles of force, mechanical loading and component behaviour through practical experiments.

Handheld Force Measurement and Test Stand Applications

Quick Handheld Measurements

The compact design of the SAUTER FK makes it practical for handheld testing.

This is useful when measurements must be performed at different locations or directly on installed components.

For reliable results, the applied force should be aligned with the measuring axis, and the instrument should be used within its rated capacity.

Using SAUTER FK with a Manual Test Stand

During handheld measurements, operator movement and loading direction can influence the result.

A compatible manual test stand can help apply force more consistently and maintain better alignment between the gauge and the test specimen.

This is particularly useful for repeated measurements and comparative testing.

Before mounting the force gauge, mechanical compatibility and permissible loads must be verified.

Measuring Attachments and Accessories

Adapt the Gauge to Different Testing Tasks

Different mechanical tests require different methods of applying force.

Suitable interchangeable attachments allow SAUTER FK force gauges to be adapted to the geometry of the component.

Pull Hooks

Pull hooks are used to apply tensile forces.

They are suitable for selected spring tests, connector extraction measurements and other pull-force applications.

Compression Tips

Compression tips transfer a pushing force to the surface of a component.

Different contact shapes may be suitable depending on the test specimen.

Extension Rods

Extension rods can improve access to measurement points that are difficult to reach.

Correct alignment and the permissible load must always be considered.

Compatible Test Fixtures

Depending on the application, suitable fixtures can help position the specimen and support more consistent measurements.

The compatibility of attachments and fixtures should be checked for the selected SAUTER FK model.

Technical Features of the SAUTER FK Series

The exact measuring capacities, resolution, accuracy and supplied accessories depend on the individual model.

How to Choose the Right SAUTER FK Force Gauge

1. Determine the Required Measuring Range

Start by identifying the maximum push or pull force expected during the test.

Select a gauge with a rated capacity that safely covers the required measurement range.

2. Consider Measurement Resolution

Different models may offer different display increments.

The selected measuring range should provide suitable readability for the forces being tested.

3. Define the Measuring Direction

Determine whether the application involves tension, compression or both.

This helps identify the appropriate measuring attachments.

4. Choose Between Handheld and Test Stand Measurement

For quick individual measurements, handheld operation may be sufficient.

For repeated inspections, a compatible test stand can help achieve more consistent testing conditions.

5. Consider Documentation Requirements

SAUTER FK does not provide interfaces for electronic measurement data transfer.

When results need to be documented, they can be read directly from the display and recorded manually.

6. Check Accuracy and Calibration Requirements

For measurements used in quality control, consider the required accuracy and whether documented calibration is necessary.

The relevant specifications and available calibration options should be checked for the selected model.

Frequently Asked Questions About SAUTER FK

What is a SAUTER FK digital force gauge?

SAUTER FK is a series of digital force gauges designed for straightforward tension and compression force measurements.

What is the main advantage of SAUTER FK?

Its simple operation and direct digital force indication make it particularly practical for quick mechanical measurements.

Can SAUTER FK measure both push and pull forces?

Yes. The instruments are designed for compression and tension measurements.

Does SAUTER FK have a Peak Hold function?

Yes. Peak Hold allows the maximum force reached during a measurement to be displayed.

Does SAUTER FK have a USB or RS-232 interface?

No. The SAUTER FK series does not feature these interfaces for measurement data transfer.

Can measurement results be transferred to a computer?

No. Measurement results are displayed directly on the instrument and can be documented manually when required.

Is software required to operate SAUTER FK?

No. The force gauge can be operated directly without additional software.

Can SAUTER FK be used for spring testing?

Yes. With suitable attachments, the instruments can measure tension and compression forces acting on springs.

Is SAUTER FK suitable for industrial quality control?

Yes. It is particularly useful for straightforward functional inspections and sample testing.

Can SAUTER FK be used with a test stand?

Yes, provided that the selected test stand is mechanically compatible with the force gauge.

Which measuring capacity should I choose?

Select a capacity that covers the maximum expected force while providing suitable measurement resolution and accuracy.

Is SAUTER FK suitable for occasional measurements?

Yes. Its straightforward operation makes it a practical choice for occasional inspections and quick individual measurements.

Can SAUTER FK measure connector extraction forces?

Yes. With a suitable attachment and test setup, the instrument can be used to measure extraction forces.

Can measurement results be recorded?

Results can be read from the digital display and entered manually into inspection documents.

Does SAUTER FK require complicated setup procedures?

No. The series is designed for simple operation and direct force measurement.

Buy SAUTER FK Digital Force Gauges on SMI

The SAUTER FK digital force gauges provide a practical solution for users who need to measure push and pull forces quickly and easily.

A clear digital display, straightforward operation and the Peak Hold function cover the essential requirements of everyday force measurement.

Whether checking springs, measuring actuation forces or performing basic mechanical inspections in workshops and manufacturing environments, SAUTER FK delivers direct measurement results without additional software or PC connectivity.

Its compact design also makes it suitable for measurements at different workplaces and for use with compatible manual test stands.

Explore the SAUTER FK range and choose the digital force gauge that matches your measuring requirements.

SAUTER FK – Switch on. Measure force. Done.
