SAUTER CS 300-3Q1 Load and force measuring cell

SAUTER CS 300-3Q1 Load and force measuring cell

SAUTER
CS 300-3Q1

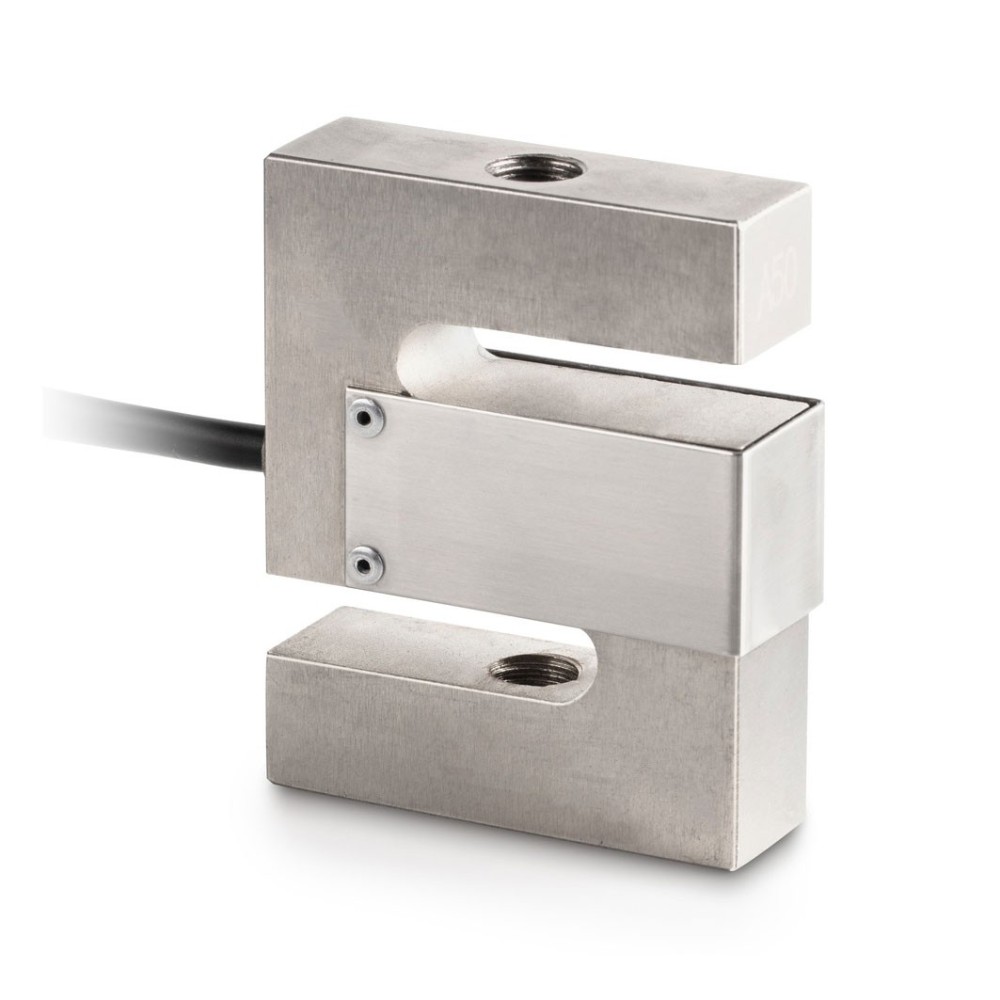

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

Technical Data SAUTER CS 300-3Q1

Weighing capacity [Max] 300 kg
Measuring range force [Max] (N) 3 kN
Design "S" shaped cell
Directions of force tension, compression
Measuring applications force, mass
Load cell - Combined error 0,017%
Load cell OIML class C3
Load cell - Resolution (verifiable) 3000 e
Load cell - Y-value 10000
Load cell - characteristic value - nominal 2 mV/V
IP protection - complete device IP67
Material steel, nickel-plated
Load cell connection 6-wire
Cable length 5 m
Mounting - force application Threaded hole M12
Mounting - force dissipation Threaded hole M12
Hurry! only 11 items left in stock.
€193.50
€215.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

RoHS compliant

Area of application: for tensile and compressive force measurement

Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands
