SAUTER CS 6000-3Q1 Load and force measuring cell
SAUTER CS 6000-3Q1 Load and force measuring cell

SAUTER CS 6000-3Q1 Load and force measuring cell

SAUTER
€370.00 (Save 10%)
€333.00
Tax excluded

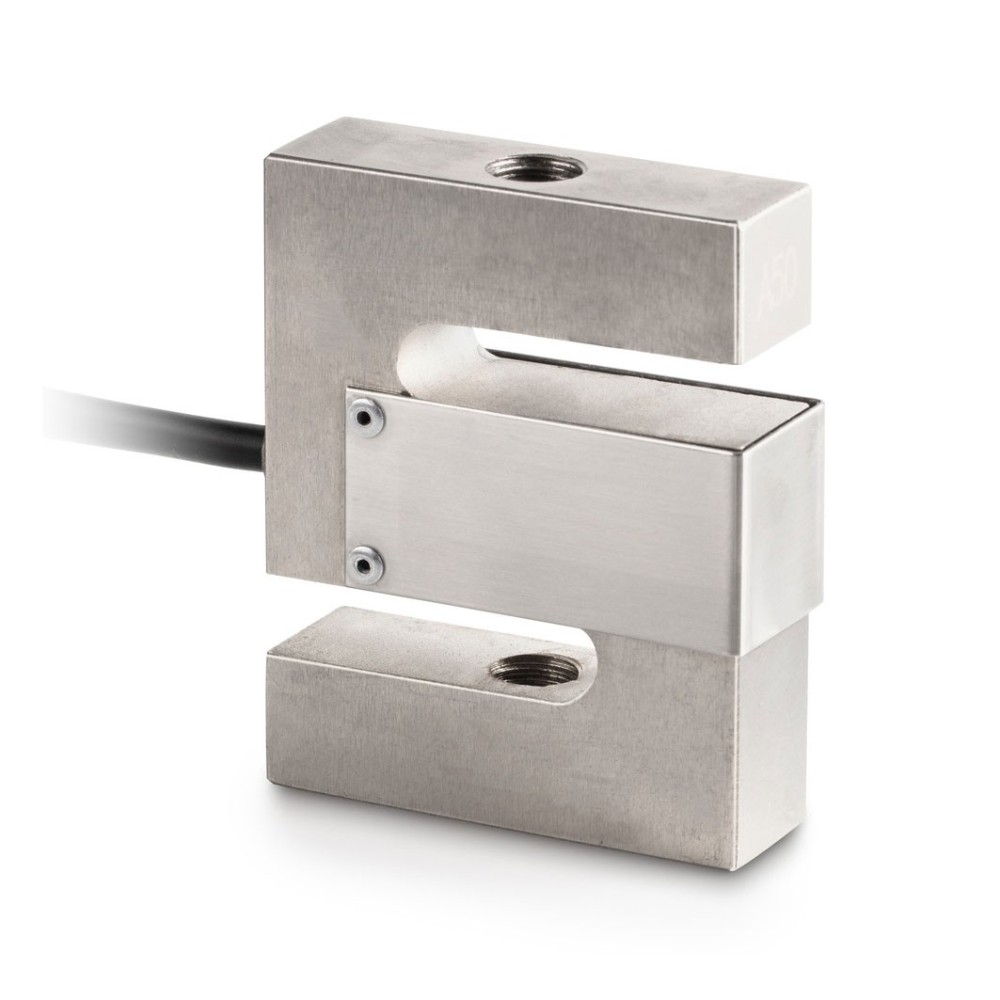

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

Technical Data SAUTER CS 6000-3Q1

Weighing capacity [Max]6000 kg
Measuring range force [Max] (N)60 kN
Design"S" shaped cell
Directions of forcetension, compression
Measuring applicationsforce, mass
Load cell - Combined error0,017%
Load cell OIML classC3
Load cell - Resolution (verifiable)3000 e
Load cell - Y-value10000
Load cell - characteristic value - nominal2 mV/V
IP protection - complete deviceIP67
Materialsteel, nickel-plated
Load cell connection6-wire
Cable length5 m
Mounting - force applicationThreaded hole M24x2
Mounting - force dissipationThreaded hole M24x2
in stock
Share

RoHS compliant

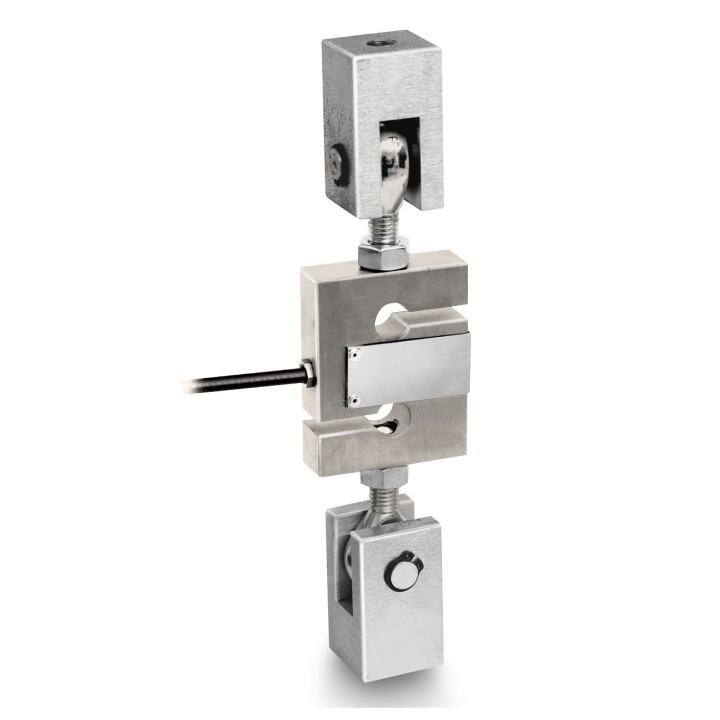

Area of application: for tensile and compressive force measurement

Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands

  • Brand
  • Reference
    CS 6000-3Q1
