Force gauge set with external measuring cell SAUTER FS 2-1KOY2

Name: Force gauge set with external measuring cell SAUTER FS 2-1KOY2
Brand: SAUTER
SKU: FS 2-1KOY2
Price: 1251.00 EUR
Availability: InStock

Brand : SAUTER

Reference : FS 2-1KOY2

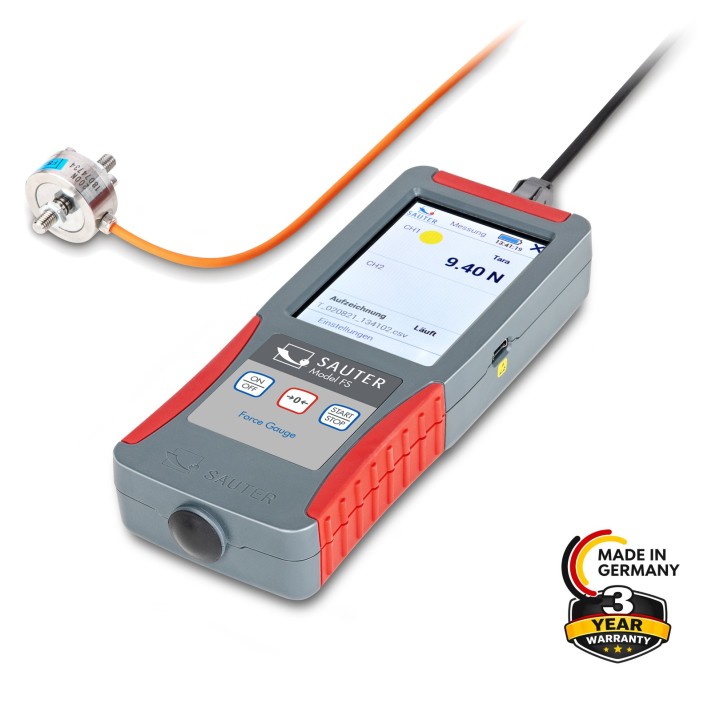

Ready-assembled set consisting of premium force gauge SAUTER FS 2 and external measuring cell CO 100-Y2 (For tensile force and compressive force measurements)

Technical Data

Measuring range force [Max] (N)	1 kN
Readability force [d] (N)	0,2 N
Measuring head measuring frequency	1000 Hz
Number of platforms / channels	2
Supplied power supply	Accu & Power supply
Rechargeable battery	3,7V, 2400mAh
Memory function
Statistic function
Peak function
Material housing	plastic
Net weight approx.	0,5 kg
Interfaces	USB-Device

Guarantee safe checkout

Premium force gauge SAUTER FS 2

3,5" touchscreen with touch pen
Measurement of forces in different tensile or compression directions possible with only one measuring device
Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
The specific data of an external sensor are stored directly in the connector
Track function for continuous measurement display
Peak value measurement
Tolerance function
Internal device memory (16 GB)
USB interface for data transfer and power supply as standard
Two-point adjustment with weights or numerical adjustment possible

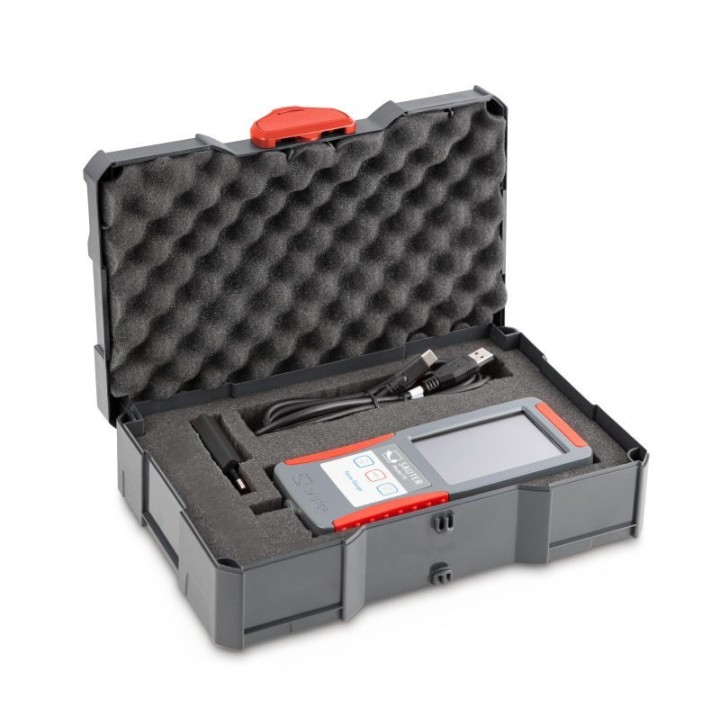

Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

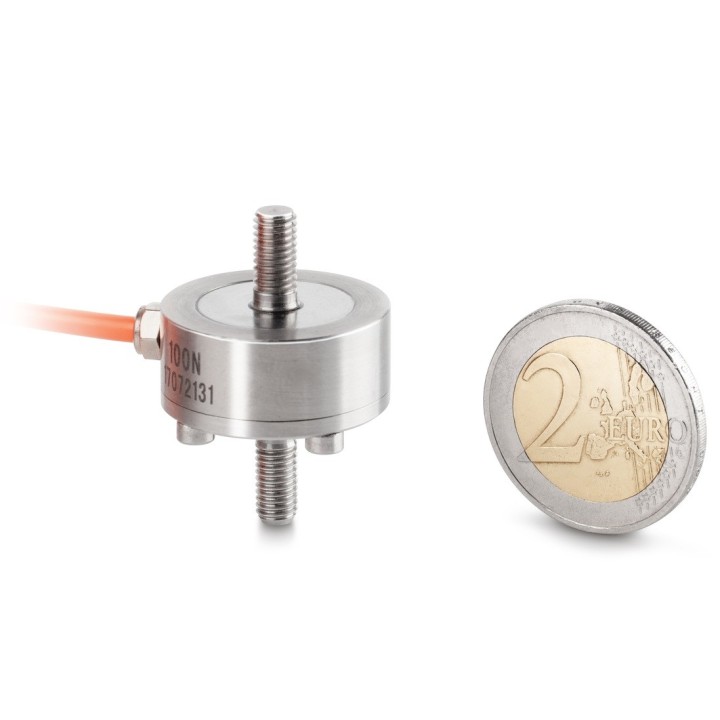

Miniature cylindrical load cell made from stainless steel SAUTER CO 100-Y2

Weighing capacity [Max]	100 kg
Measuring range force [Max] (N)	1 kN
Design	Tension-/compression rod
Directions of force	tension, compression
Measuring applications	force, mass
Load cell - Combined error	0,5%
Load cell OIML class	G5
Load cell - characteristic value - nominal	1,5 mV/V
IP protection - complete device	IP65
Material	steel, stainless
Load cell connection	4-wire
Cable length	2 m
Mounting - force application	External thread M12
Mounting - force dissipation	External thread M12

Reference : FS 2-1KOY2
