SAUTER FS 2-100KRY1 force gauge with external load cell 100 kN

Name: SAUTER FS 2-100KRY1 force gauge with external load cell 100 kN
Brand: SAUTER
SKU: FS 2-100KRY1
Price: 1395 EUR
Availability: InStock

SAUTER

€1,550.00 (Save 10%)

€1,395.00

Tax excluded

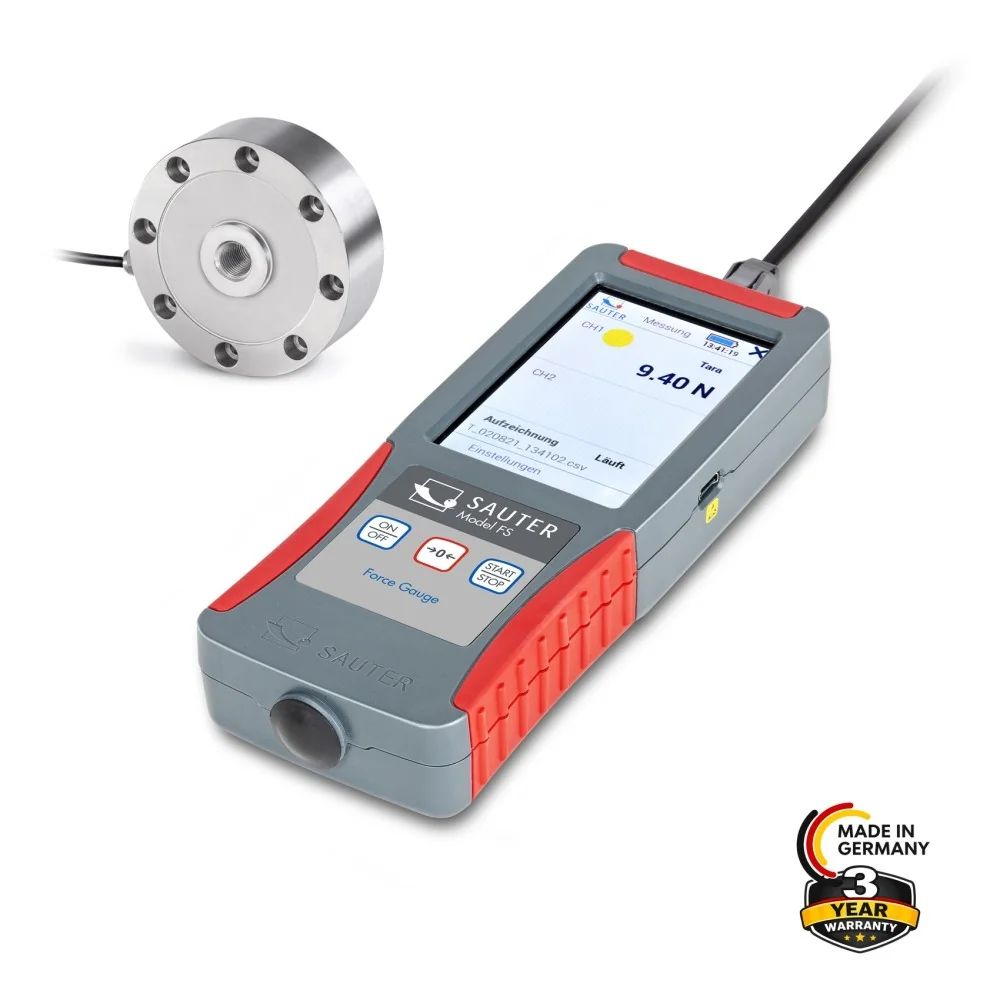

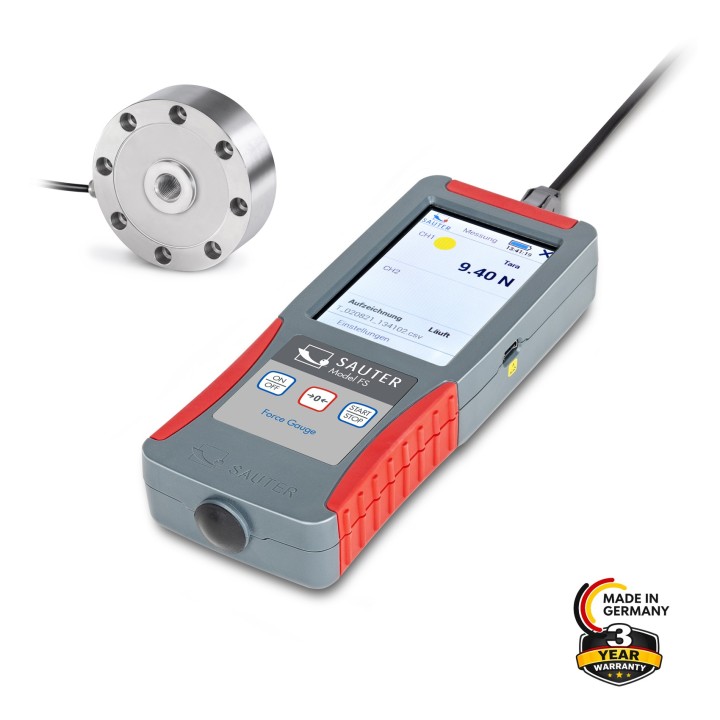

Ready-assembled set consisting of premium force gauge SAUTER FS 2 and external load cell CR 10000-1Y1 for tensile and compressive force measurements

Technical Data

Measuring range force [Max] (N)	100 kN
Readability force [d] (N)	20 N
Measuring head measuring frequency	1000 Hz
Number of platforms / channels	2
Supplied power supply	Accu & Power supply
Rechargeable battery	3,7V, 2400mAh
Memory function
Statistic function
Peak function
Material housing	plastic
Net weight approx.	2,0 kg
Interfaces	USB-Device

Measurement of forces in different tensile or compression directions possible with only one measuring device
3,5" touchscreen with touch pen
Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
The specific data of an external sensor are stored directly in the connector
Track function for continuous measurement display
Peak value measurement
Tolerance function
Internal device memory (16 GB)
USB interface for data transfer and power supply as standard
Two-point adjustment with weights or numerical adjustment possible

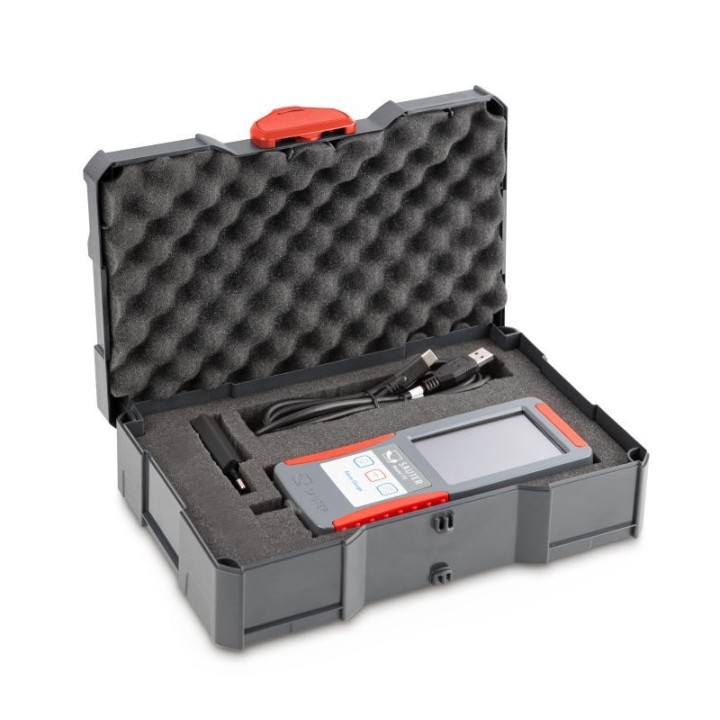

Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

External load cell SAUTER CR 10000-1Y1

Weighing capacity [Max]	10000 kg
Measuring range force [Max] (N)	100 kN
Design	Load cell 125×52 mm
Directions of force	tension, compression
Measuring applications	force, mass
Load cell - Combined error	0,05%
Load cell OIML class	C1
Load cell - characteristic value - nominal	2 mV/V
IP protection - complete device	IP68
Material	steel
Load cell connection	4-wire
Cable length	3 m
Mounting - force application	Pressure piece, Threaded hole M32x1,5
Mounting - force dissipation	8 × through hole Ø 8,5 mm
