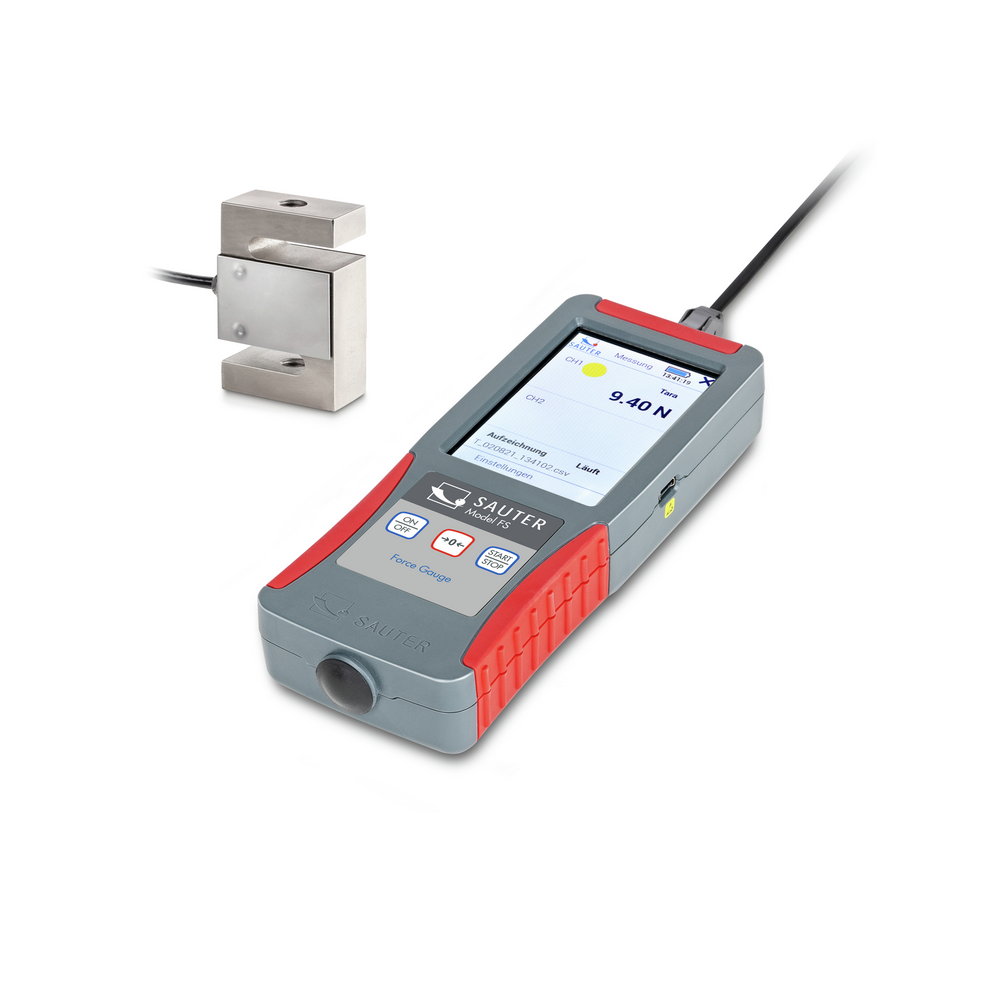

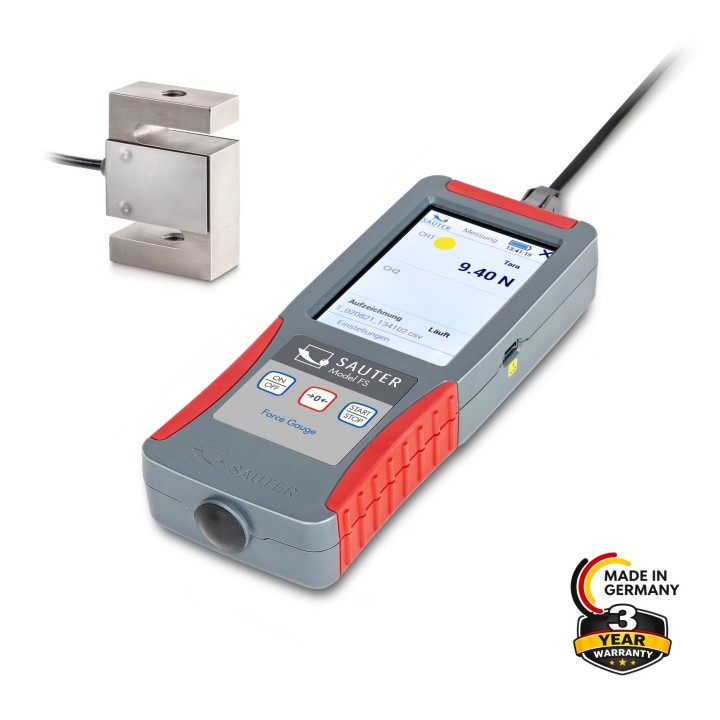

SAUTER FS 2-100KSP1 Force measuring set up to 100 KN

Premium force gauge SAUTER FS 2

• Measurement of forces in different tensile or compression directions possible with only one measuring device
• 3,5" touchscreen
• Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
• The specific data of an external sensor are stored directly in the connector
• Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
• Track function for continuous measurement display
• Peak value measurement
• Tolerance function
• Internal device memory (16 GB)
• USB interface for data transfer and power supply as standard
• Two-point adjustment with weights or numerical adjustment possible
• Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement CS 10000-3P1

• Accuracy class in accordance with OIML C3
• Nominal sensitivity: 2 mV/V
• Protection against dust and water splashes IP67 (in accordance with EN 60529), hermetically encapsulated
• Area of application: for tensile and compressive force measurement
• M33 × 3
