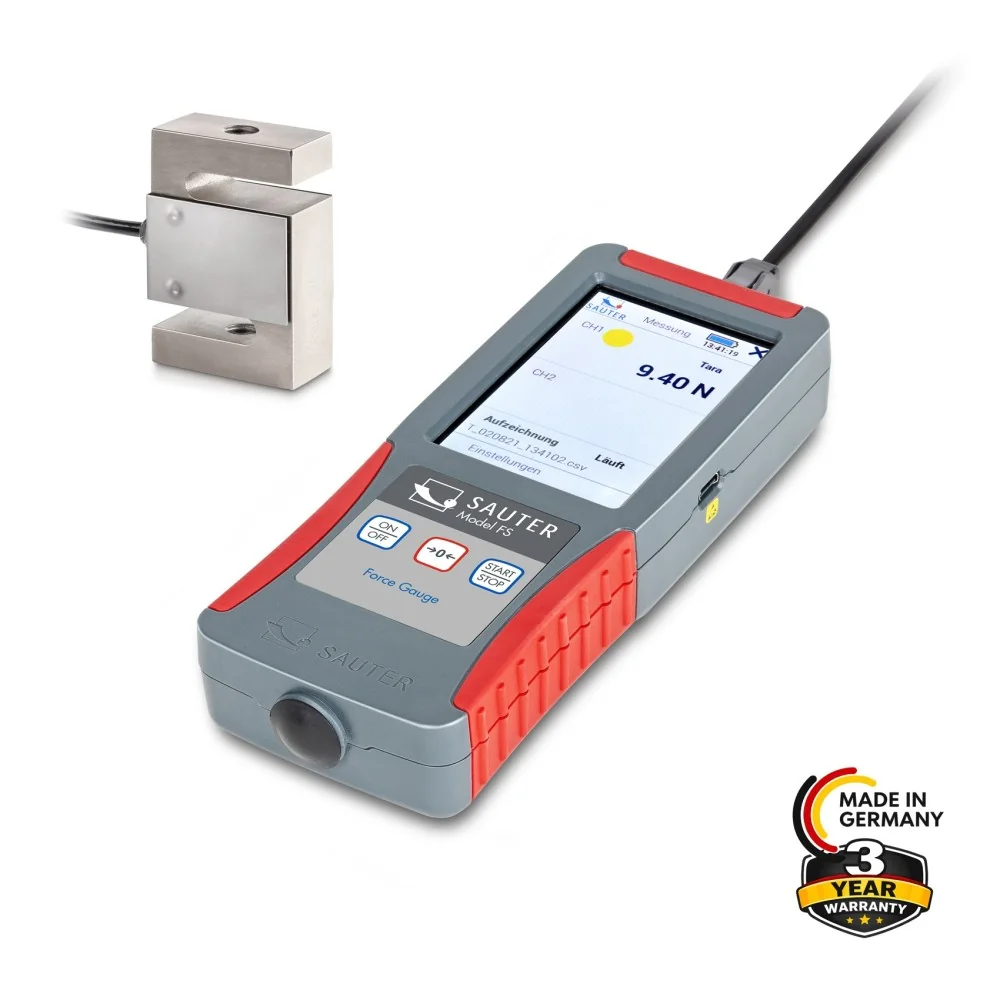

Force gauge set with external measuring cell SAUTER FS 2-50KSP1

Name: Force gauge set with external measuring cell SAUTER FS 2-50KSP1
Brand: SAUTER
SKU: FS 2-100KSP1
Price: 1269.00 EUR
Availability: InStock

Brand : SAUTER

Reference : FS 2-100KSP1

Ready-assembled set consisting of premium force gauge SAUTER FS 2 and external "S" measuring cell CS 5000-3P1 for tensile and compressive force measurements

Technical Data

Measuring range force [Max] (N)	50 kN
Readability force [d] (N)	10 N
Measuring head measuring frequency	1000 Hz
Number of platforms / channels	2
Supplied power supply	Accu & Power supply
Rechargeable battery	3,7V, 2400mAh
Memory function
Statistic function
Peak function
Material housing	plastic
Net weight approx.	1,00 kg
Interfaces	USB-Device

Guarantee safe checkout

Premium force-measuring device SAUTER FS 2

Measurement of forces in different tensile or compression directions possible with only one measuring device
3,5" touchscreen with touch pen
Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
The specific data of an external sensor are stored directly in the connector
Track function for continuous measurement display
Peak value measurement
Tolerance function
Internal device memory (16 GB)
USB interface for data transfer and power supply as standard
Two-point adjustment with weights or numerical adjustment possible

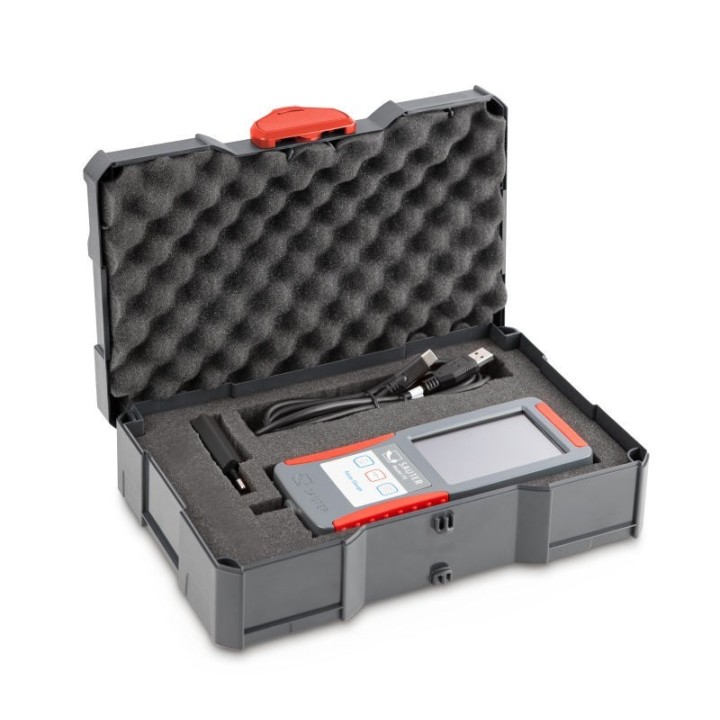

Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement SAUTER CS 5000-3P1

Accuracy class in accordance with OIML C3
Nominal sensitivity: 2 mV/V
Protection against dust and water splashes IP67 (in accordance with EN 60529), hermetically encapsulated
Area of application: for tensile and compressive force measurement
Mounting - force dissipation Threaded hole M20 × 1,5
Mounting - force application Threaded hole M20 × 1,5

Reference : FS 2-100KSP1
