SAUTER AFH LD Data transfer software

SAUTER AFH LD Data transfer software

SAUTER
AFH LD

AFH LD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests

The program simultaneously requests the measurements from a force measuring device, e.g. SAUTER FH, as well as a length measuring device, e.g. SAUTER LB or SAUTER LD

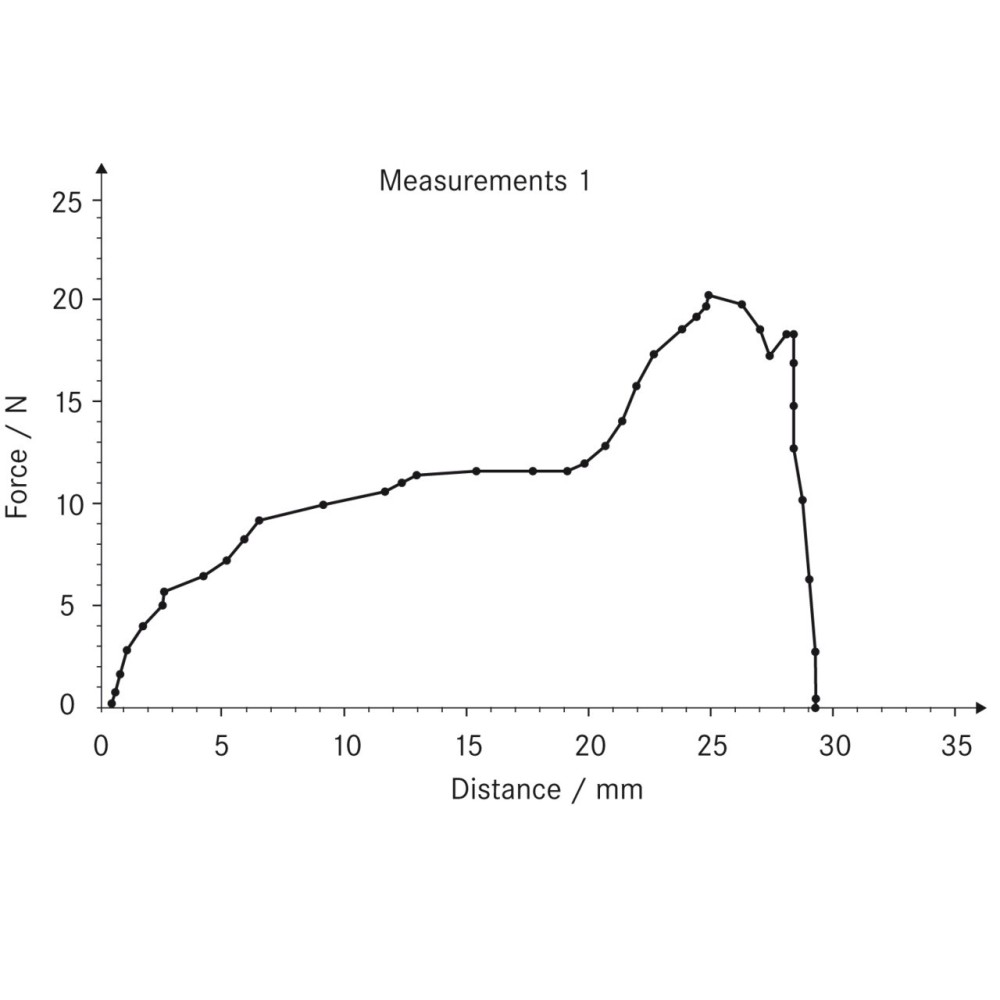

The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH LD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel®

The software AFH LD is compatible with all instruments of series SAUTER FC, FH, FL, FS

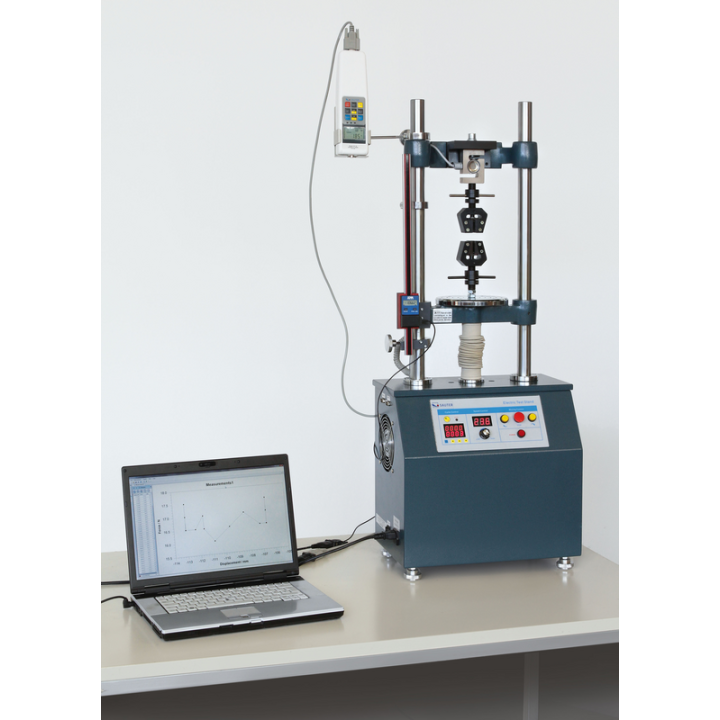

These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N and TVS range. However, it is also possible to use them with mechanical testing machines

Further analysis functions:

- Extension of the test object

- Tensile and compressive force

- Endurance testing

- Archiving the recorded data

Hurry! only 9 items left in stock.
€243.00
€270.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Scope of delivery for SAUTER AFH LD:

- Software AFH LD on DVD

- User manual

- RS-232 interface cable for FH (FH-A01)

- USB interface cable for FL (FL-A01)

Compatible with the following operating system: Microsoft Windows 10, 11®

Order example for a complete test system:

- FH 5K (Digital force gauge)

- LB 300-2 (Digital length measuring device)

- AFH FD (Force-distance evaluation software)

- TVM 5000N230N* (Test stand)

- LB-A02* (Mounting LB on test stands)

- 2× AFH 12 (RS-232/USB adapter)

- AC 04* (Test object holder)

- 963-163* (Force calibration)

- 961-150* (Length calibration)

* not necessarily required for operating the AFH FD software

Force-displacement software, but only in combination with a lenght measuring device of SAUTER LD series
