with user-friendly graphics display and 15 memories for drying programs

• Backlit LCD display, digit height 14 mm
  • Drying process active
  • Active heating profile
  • Active switch-off criteria
  • Previous drying time
  • Current temperature
  • Unit of the shown result, e.g. moisture [%]
  • Interim result in moisture-%
• Halogen quartz glass heater 400 W
• Observation window above the sample, useful during initial setting
• Internal memory for automatic sequence of 15 complete drying processesand 5 drying processes carried out
• The last value measured remains on the display until it is replaced by a new measurement
• 50 sample plates included
• Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

Modern moisture analyser with 10 memories and graphic display

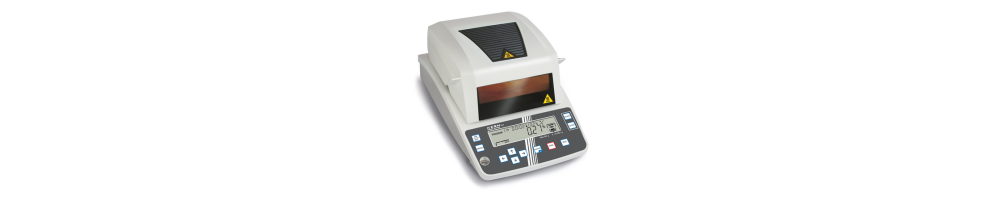

Moisture analyser with user-friendly graphics display and 15 memories for drying programs

KERN RDAB-9006 Heating element for DAB

Infrared heater for KERN DAB

TECHNICAL DATA

• Temperature calibration set consisting of measuring sensor and display device
• Suitable for moisture analyser KERN DAB

unit of 80 pieces

Temperature calibration set for Moisture analyser KERN DBS

• Capacity: 124 g
• Readability: 0.1 mg / 0.001%
• Repeatability: 1 g / 0.1 %   10 g / 0.01 %
• Linearity: 0,2 mg
• Temperature Range: 50 - 230°C
• Pan Size (mm): ø 100
• Response Time: 4 sek

The EM 120-HR instrument for fast and accurate moisture analysis with a wide range of methods; sophisticated and simple to operate, complying to the most  stringent standards.

• Adjustable readability: 0.1 mg / 0.001 % and  1 mg / 0.01 %
• High temperature range up to 230ºC
• Automatic self calibration system (SCS)
• Bright graphic Display
• Extended memory capacity, 100 Methods
• Choice of heat element: halogen, infrared,  infrared dark Radiator
• USB and RS232 interfaces as Standard
• Selectable heating modes: standard, boost, smooth

MLB-A01A Aluminum sample plates

for analytical balances and moisture analyzers

Aluminium, Ø 90 mm, unit of 80 pieces

Advanced PHASTbloc® technology

Radiator type: Halogen /  Infrared / Dark

Weighing range: 124 g

Pan Size: ø 100 mm

Smallest sample weight: 0,2 g

Readability: 1 mg / 0.01 %

Response time: 3 sek

Temperature range / Step: 50-230 / 1°C

Heating modes: standard, boost, smooth

Advanced PHASTbloc® technology

Radiator type: Halogen /  Infrared / Dark

Weighing range: 124 g

Pan Size: ø 100 mm

Smallest sample weight: 0,2 g

Readability: 0.1 mg / 0.001%

Response time: 3 sek

Temperature range / Step: 50-230 / 1°C

Heating modes: standard, boost, smooth
