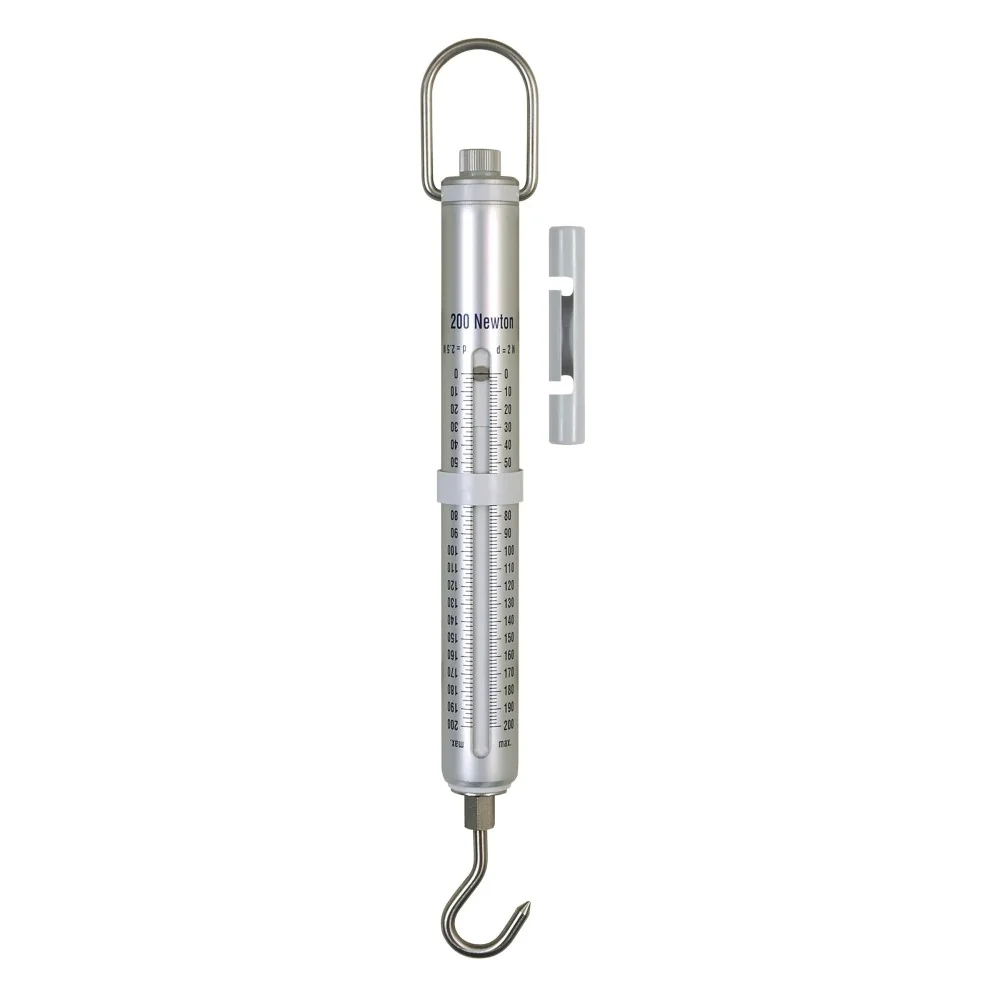

SAUTER 283-602 mechanical force gauge 200 N

SAUTER 283-602 mechanical force gauge 200 N

SAUTER
283-602

Precise, mechanical force gauge in robust aluminium housing with Newton readout

Technical Data

Measuring range force [Max] (N) 200 N
Readability force [d] (N) 2 N
Tolerance (% of [Max]) 0,3%
Load support (tensile force) Hook
Length unloaded (l [Min]) 370 mm
Length loaded (l [Max]) 510 mm
Housing diameter (Ø) 32 mm
Dimensions completely mounted (W×D×H) 370×32×32 mm
Material housing aluminium
Certificate : without Certificate
Hurry! only 5 items left in stock.
€243.00
€270.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Aluminium scale tube: robust, long service life, handy

Newton scale: Measuring result displayed in Newton

Double scale: For fast or precise recording of the measurement result

Compressive force measurement: possible using an optional pressure set

Carrying handle as standard

Drag pointer as standard

Suspension bow: thanks to the rotating suspension bow the scale can always be aligned to be at the very best line of sight

High precision: Backlash-free spring bearing with integrated tare screw for highly-precise adjustment

Non-fatigue stainless steel spring

Clip loop which can be freely rotated of the lower suspension bracket by 360°

High-quality workmanship: Wear-resistant, colour-anodised precision scale with high resolution for accurate readability of the measuring result

: 283-602
