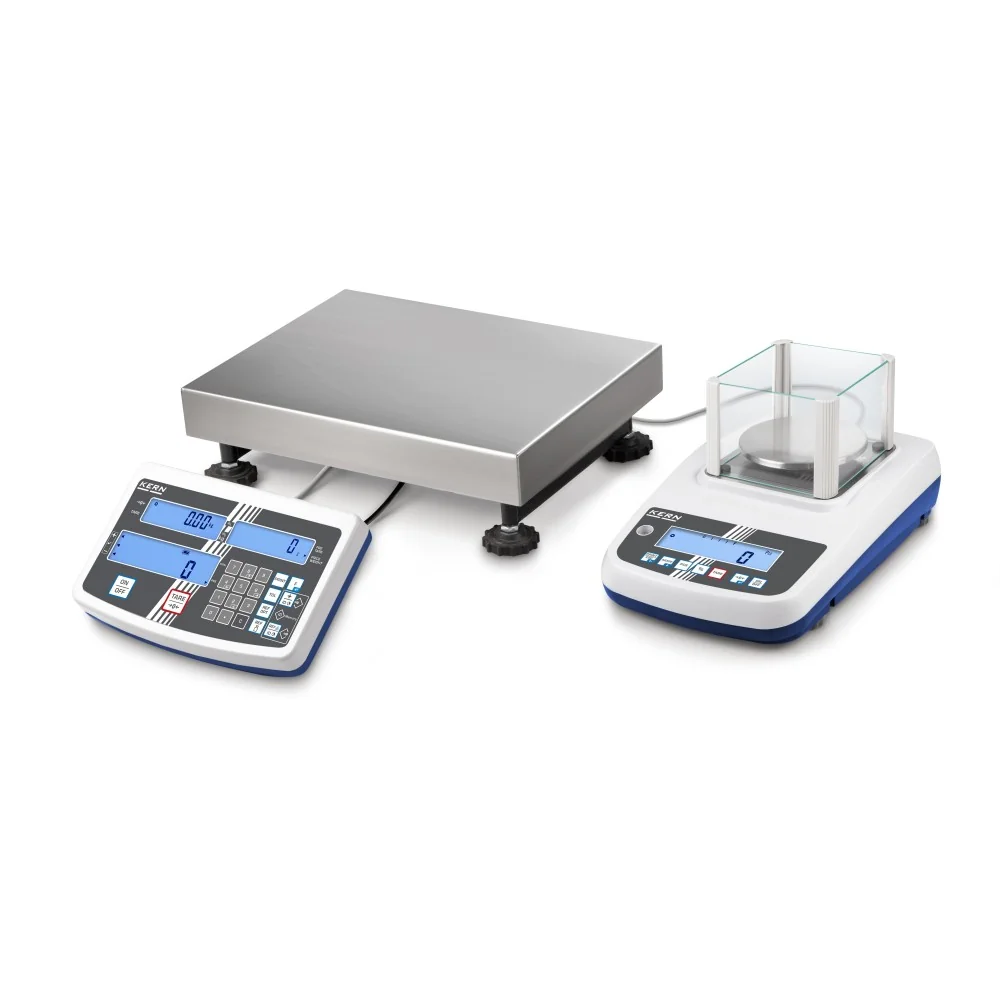

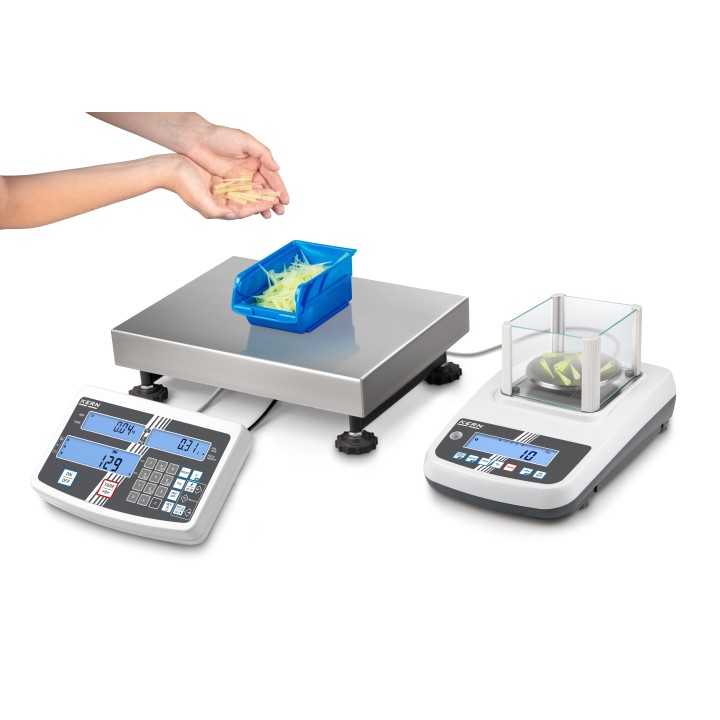

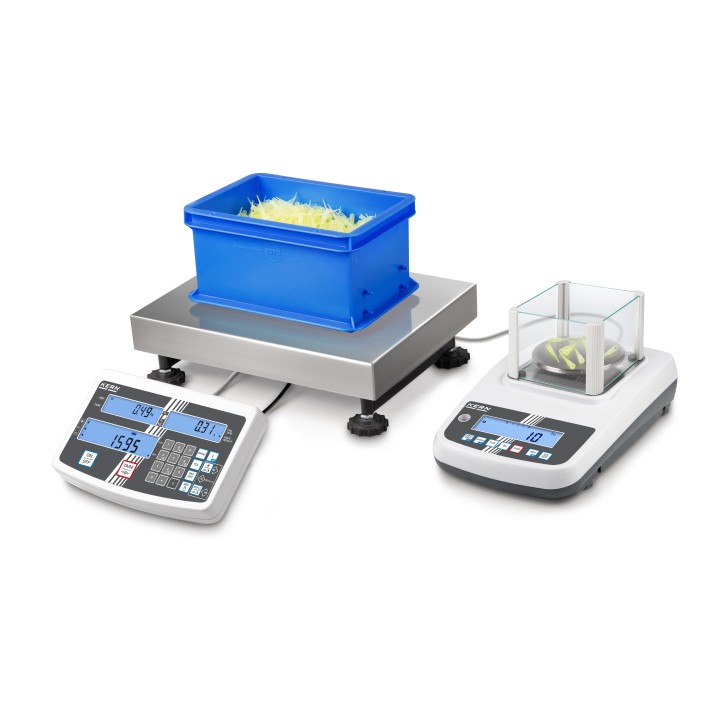

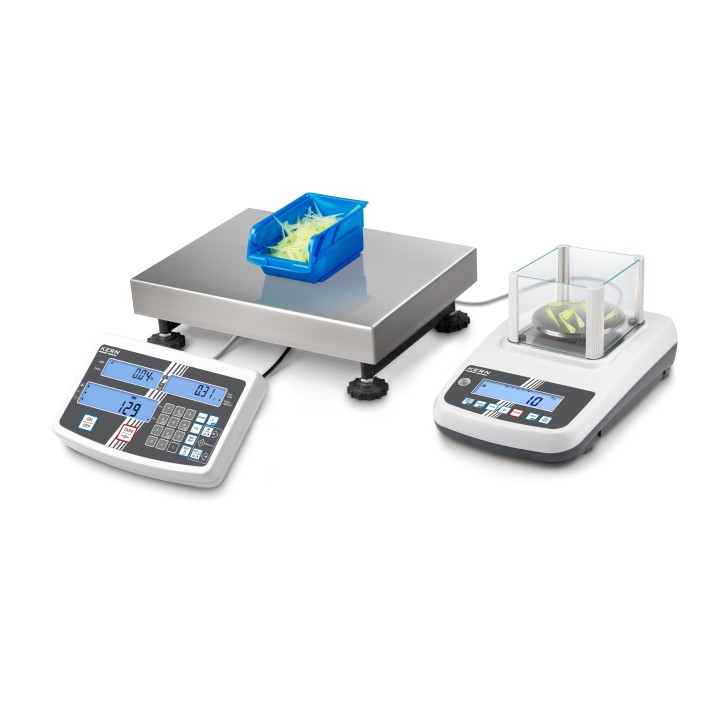

Counting system KERN CCA


Counting system KERN CCA 60K-5M

KERN
CCA 60K-5M

High-resolution counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999, verification optional

TECHNICAL DATA

Quantity scale - Weighing capacity [Max] 30 kg; 60 kg
Reference scale - Readability [d] 10 mg
Units kg
Dimensions weighing platform (W×D×H) 400×300×120 mm
Dimensions weighing surface (W×D) 400×300 mm
Reference scale - Linearity 30 mg
Quantity scale - Linearity 0,01 kg; 0,02 kg
Ambient temperature 0 °C – 40 °C
Smallest piece weight when piece counting - normal conditions 200 mg
Conformity assessment possible ex works
Display type LCD
Display digit height 20 mm
Material weighing plate coated metal
Display device cable length 5 m
Material housing plastic
Net weight approx. 14 kg
IP protection - complete device IP23
IP protection - platform IP65
IP protection - load cell IP65
Certificate : without Certificate
Hurry! only 9 items left in stock.
€1,035.00
€1,150.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Counting system KERN CCA

  • The highly accurate KERN counting system can replace a whole range of individual balances, efficiently and at a reasonable price
  • Thanks to EC type approval [M] this counting system can also be used in verified applications, e.g. for order picking packaged items, etc.
  • The balances are connected to one another with an RS 232 Y-cable, which also allows you to connect an end unit, such as, for example, signal lamps, barcode scanners or printers (KERN TCCA-A01-A, included in the scope of supply)

Reference scale KERN EWJ

  • This professional precision scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
  • Concept of easy use: All primary functions have their own key on the keypad
  • Automatic internal adjustment time-controlled every 2 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
  • Draft shield standard, weighing space W×D×H 134×128×80 mm
  • Protective working cover included with delivery

Internal adjusting (CAL): Quick setting of the balance's accuracy with internal adjusting weight (motordriven). Data interface RS-232: To connect the balance to a printer, PC or network USB data interface: To connect the balance to a printer, PC or other peripherals. Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Recipe level A: Separate memory for the weight of the tare container and the recipe ingredients (net total). Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams. Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Quantity scale KERN IFS

  • The high-accuracy quantity counting takes place on the weighing platform (= weighing bridge) KERN . In this way even the smallest of parts can be counted in large volumes
  • Tough industry standard suitable for use in harsh industrial applications
  • Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
  • Three displays for total weight (verifiable), piece weight, total quantity
  • 100 item memories for master data, such as item number, PRE-TARE (container weight), reference quantity, refere. weight etc.
  • Precise counting: The manual optimisation of reference weight gradually improves the average value of the piece weight
  • Totalising of pieces when counting
  • Printout with date and time
  • Aluminium singlepoint load cell (1x3000e), protection against dust and water splashes IP65
  • Protective working cover included with delivery

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Memory: Balance contains memories, e.g. for tare weights, weighing data, item data, PLU etc. Data interface RS-232: To connect the balance to a printer, PC or network Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Totalising level A: The weights of similar items can be added together and the total can be printed out. Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.  Universal mains adapter: with universal input and optional input socket adapters for EU, GB Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

: CCA 60K-5M
Hurry! only 9 items left in stock.

Data sheet

Readout [d]
0,01g
min. Piece weight [Counting]
0,2g
Weighing plate dimensions
400 x 300 mm
Material weighing plate
stainless steel
Weighing range [Max]
30 | 60 kg

Specific References

EAN13
4045761235113
