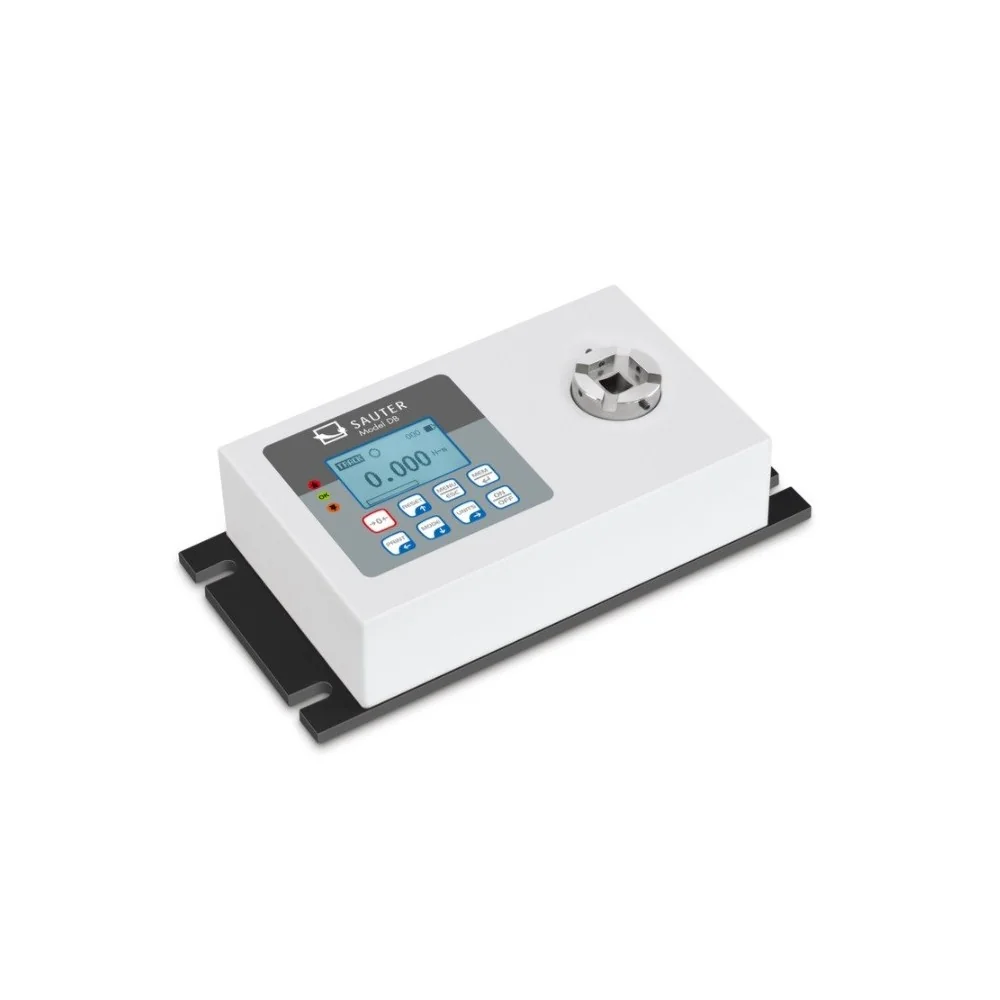

SAUTER DB 100-2 torque gauge


SAUTER DB 100-2 torque gauge

SAUTER
DB 100-2

Convenient way to test the torque of tools

Technical Data

Measuring range torque 5 Nm – 100 Nm
Readability torque [d] (Nm) 0,02 Nm
Tolerance (% of [Max]) 0,5%
Units Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups 3/8 "
Overload protection (% of [Max]) 120%
Memory function
Internal data memory: Number of individual values 500
Peak function
Limit-setting function
Internal measuring frequency 1000 Hz
Supplied power supply Accu & Power supply
Battery / accumulator type NiMH
Rechargeable battery operating time - backlight off 18 h
Auto-off interval(s) in battery mode/rechargeable battery mode 1 - 60 min
Interfaces RS-232 standard, USB-Device
Display type LCD graphic
Display resolution 128×64
Material housing metal, lacquered
Dimension (W×D×H) 200×100×50 mm
Certificate : without Certificate
Hurry! only 9 items left in stock.
€1,809.00
€2,010.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

LCD graphics display with backlight

Stable mounting plate for solid fixation

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

Scope of delivery: Torque pick-up, sturdy carry case, mounting plate

: DB 100-2
Hurry! only 9 items left in stock.

Specific References

EAN13
4045761193444
