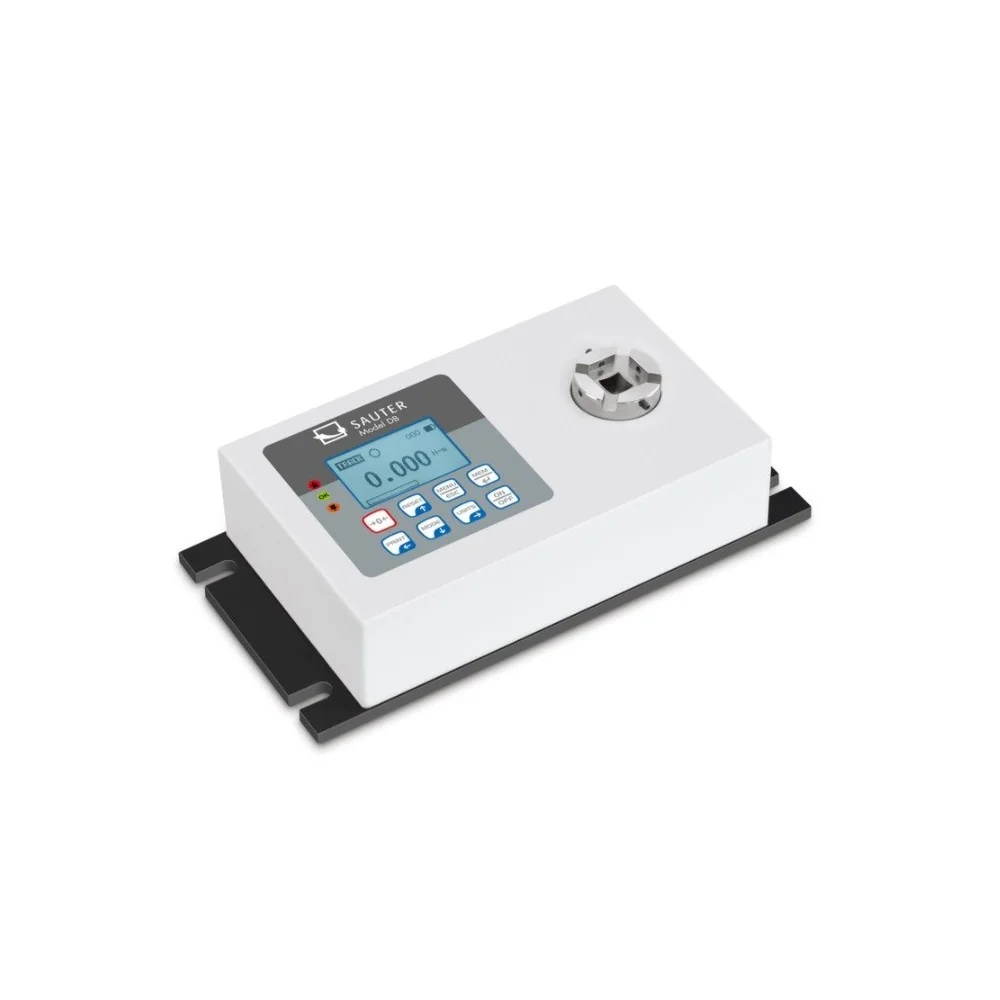

SAUTER DB 500-2 Torque gauge

Name: SAUTER DB 500-2 Torque gauge
Brand: SAUTER
SKU: DB 500-2
Price: 1809 EUR
Availability: InStock

Brand : SAUTER

Reference : DB 500-2

Convenient way to test the torque of tools

Technical Data

Measuring range torque	25 Nm – 500 Nm
Readability torque [d] (Nm)	0,1 Nm
Tolerance (% of [Max])	0,5%
Units	Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
Supported torque pickups	3/4 "
Overload protection (% of [Max])	120%
Memory function
Internal data memory: Number of individual values	500
Peak function
Limit-setting function
Internal measuring frequency	1000 Hz
Supplied power supply	Accu & Power supply
Battery / accumulator type	NiMH
Rechargeable battery operating time - backlight off	18 h
Auto-off interval(s) in battery mode/rechargeable battery mode	1 - 60 min
Interfaces	RS-232 standard, USB-Device
Display type	LCD graphic
Display resolution	128×64
Material housing	metal, lacquered
Dimension (W×D×H)	200×100×50 mm

Certificate : without Certificate

Hurry! only 9 items left in stock.

€1,809.00

€2,010.00

Save 10%

Tax excluded

Quantity

Add to Compare

Add to Wishlist

Guarantee safe checkout

Particularly suitable for testing torque wrenches, electric hand screwdrivers and cordless screwdrivers

Metal housing for durable use in harsh environmental conditions

Capacity display: A bar lights up to show how much of the measuring range is still available

LCD graphics display with backlight

Stable mounting plate for solid fixation

Data interface USB and RS-232 included

Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Can be used in both directions of rotation

Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal

AUTO-OFF function

Scope of delivery: Torque pick-up, sturdy carry case, mounting plate

Reference : DB 500-2

Hurry! only 9 items left in stock.

Specific References

EAN13: 4045761193499

Download

SAUTER DB Datasheet
