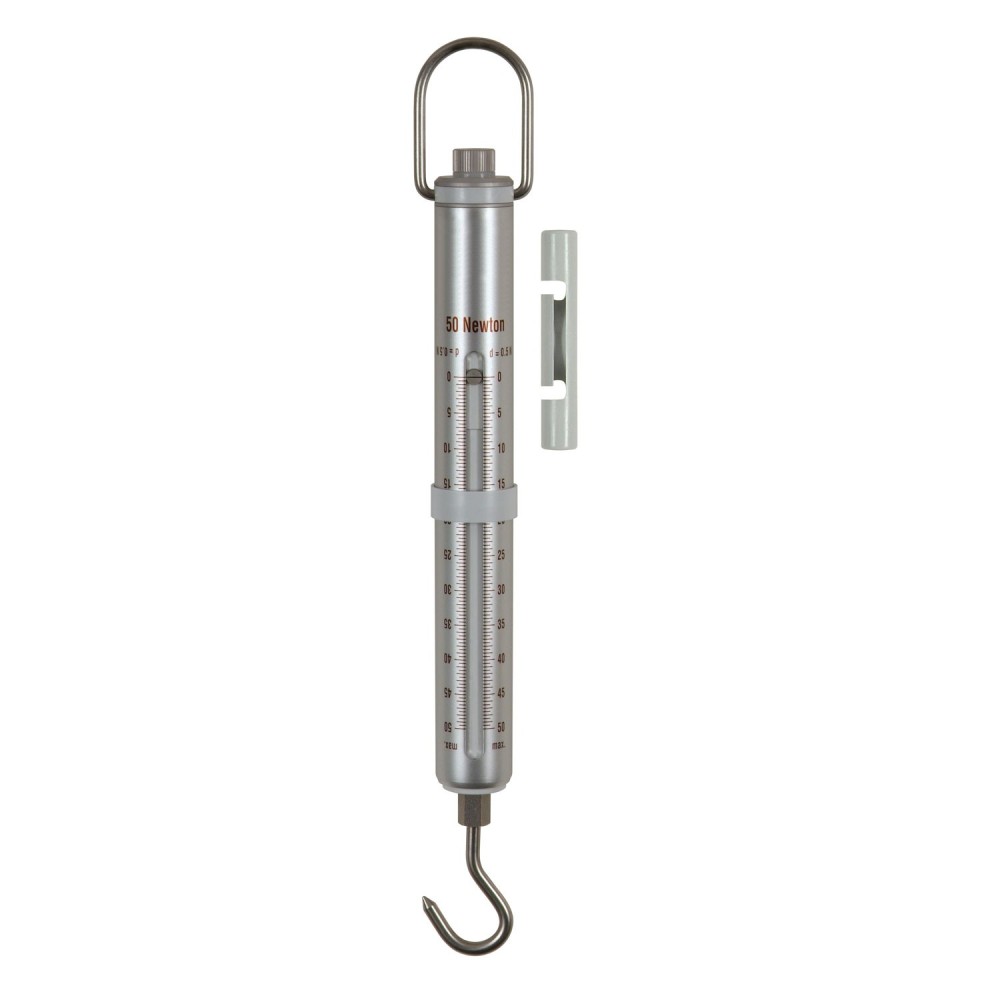

Precise, mechanical force gauge in robust aluminium housing with Newton readout
| Measuring range force [Max] (N) | 50 N |
| Readability force [d] (N) | 0,5 N |
| Tolerance (% of [Max]) | 0,3% |
| Load support (tensile force) | Hook |
| Length unloaded (l [Min]) | 370 mm |
| Length loaded (l [Max]) | 510 mm |
| Housing diameter (Ø) | 32 mm |
| Dimensions completely mounted (W×D×H) | 370×32×32 mm |
| Material housing | aluminium |
Aluminium scale tube: robust, long service life, handy
Newton scale: Measuring result displayed in Newton
Double scale: For fast or precise recording of the measurement result
Compressive force measurement: possible using an optional pressure set
Carrying handle as standard
Drag pointer as standard
Suspension bow: thanks to the rotating suspension bow the scale can always be aligned to be at the very best line of sight
High precision: Backlash-free spring bearing with integrated tare screw for highly-precise adjustment
Non-fatigue stainless steel spring
Clip loop which can be freely rotated of the lower suspension bracket by 360°
High-quality workmanship: Wear-resistant, colour-anodised precision scale with high resolution for accurate readability of the measuring result
