Floor scale KERN BID 600K-1SM

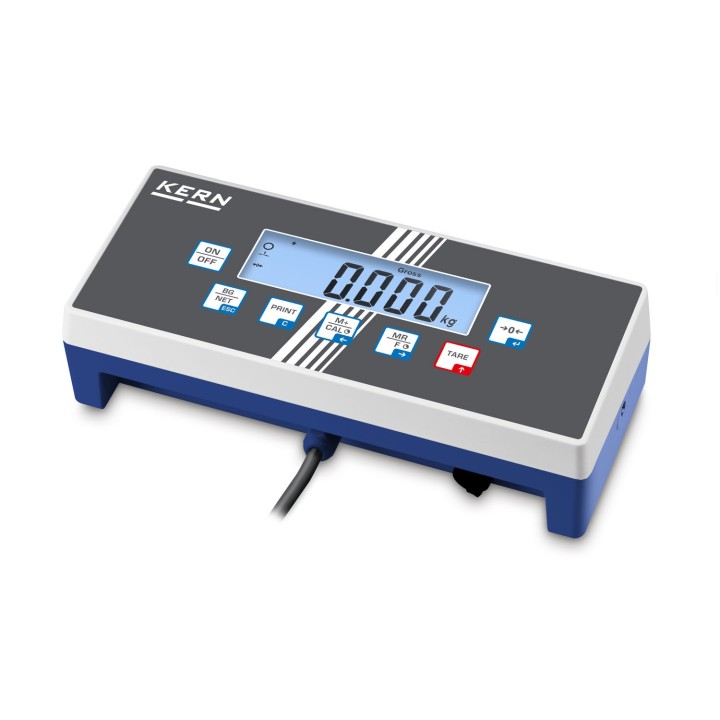

Display device: plastic, protection against dust and water splashesIP65. for details see KERN KIB-TM
Weighing bridge out of anti-slip corrugated steel, 4 load cells, alloy steel, silicone-coated, IP67
Easy levelling of the weighing bridge as well as access to the junction box from above
Totalising of weights and piece counts
Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer
Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol

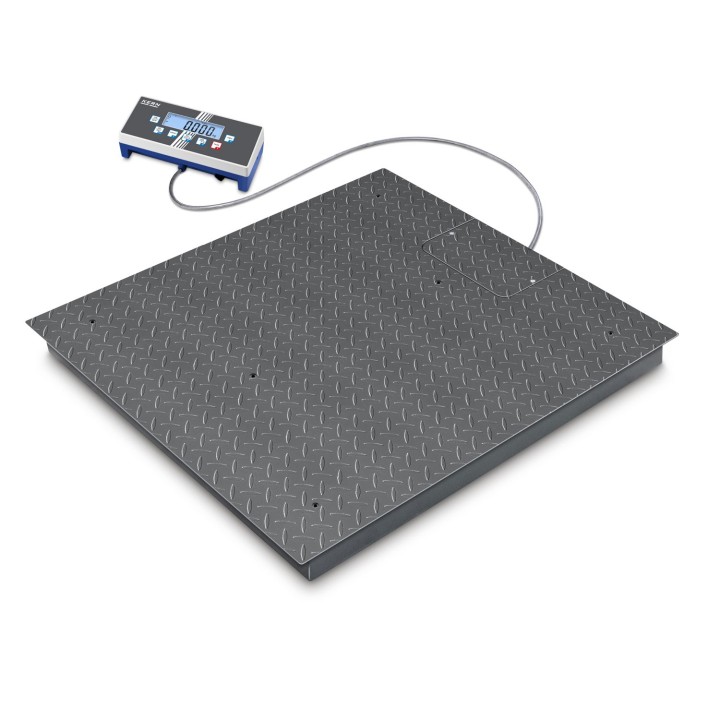

Floor scale out of anti-slip corrugated steel, 4 load cells, alloy steel, silicone-coated, IP67, verification optional
Technical Data KERN BID 600K-1SM
| Weighing capacity [Max] | 600 kg |
| Readability [d] | 200 g |
| Verification scale interval [e] | 200 g |
| Units | kg, g, lb, oz, PCS, tJ, HJ |
| Minimum weight [Min] | 4 kg |
| Dimensions weighing platform (W×D×H) | 1000×1000×108 mm |
| Dimensions weighing surface (W×D) | 1000×1000 mm |
| Reproducibility | 200 g |
| Linearity | ± 600 g |
| Ambient temperature | -10 °C – 40 °C |
| Conformity assessment possible ex works | |
| Display type | LCD |
| Display digit height | 25 mm |
| Material weighing plate | steel, powder-coated |
| Material platform | steel, powder-coated |
| Display device cable length | 5 m |
| Tolerance weighing | |
| Net weight approx. | 75 kg |
| IP protection - complete device | IP65 |
| IP protection - display | IP65 |
| IP protection - platform | IP67 |
| IP protection - load cell | IP67 |
