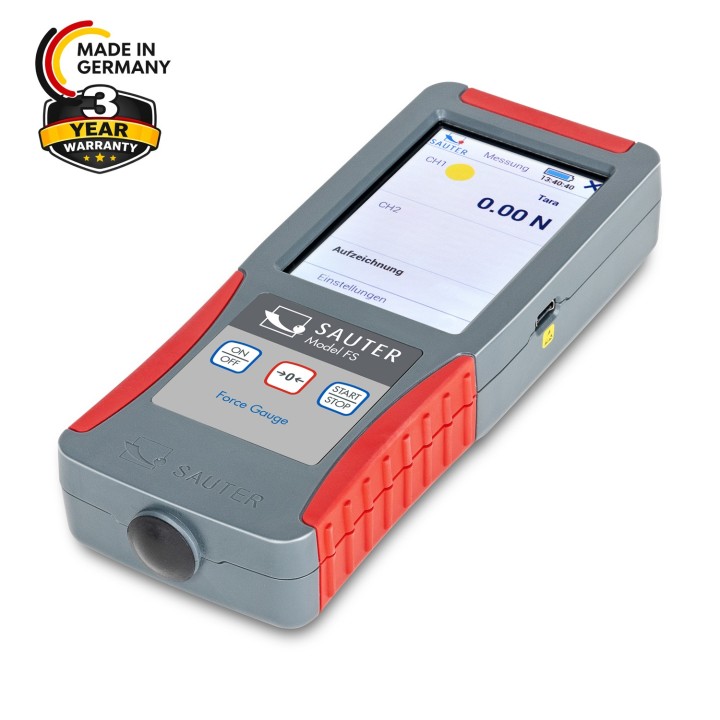

SAUTER FS 2 Premium force gauge for external load cells

Measurement of forces in different tensile or compression directions possible with only one measuring device

3,5" touchscreen with touch pen

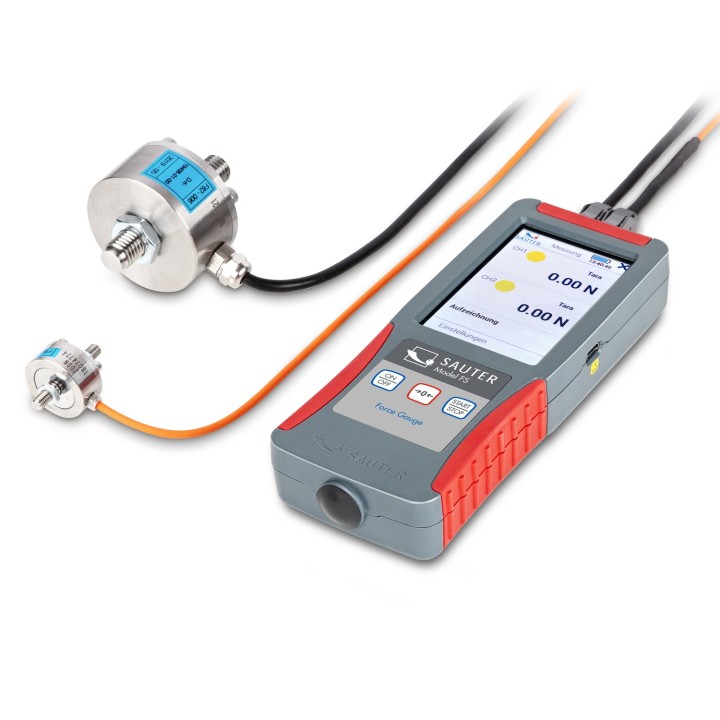

Suitable for 4-wire and 6-wire sensors with strain gauges

Two-point adjustment with weights or numerical adjustment possible

The specific data of an external sensor are stored directly in the connector

USB interface for data transfer and power supply as standard

Internal device memory (16 GB)

Tolerance function

Track function for continuous measurement display

Peak value measurement

Mountable on all SAUTER test stands

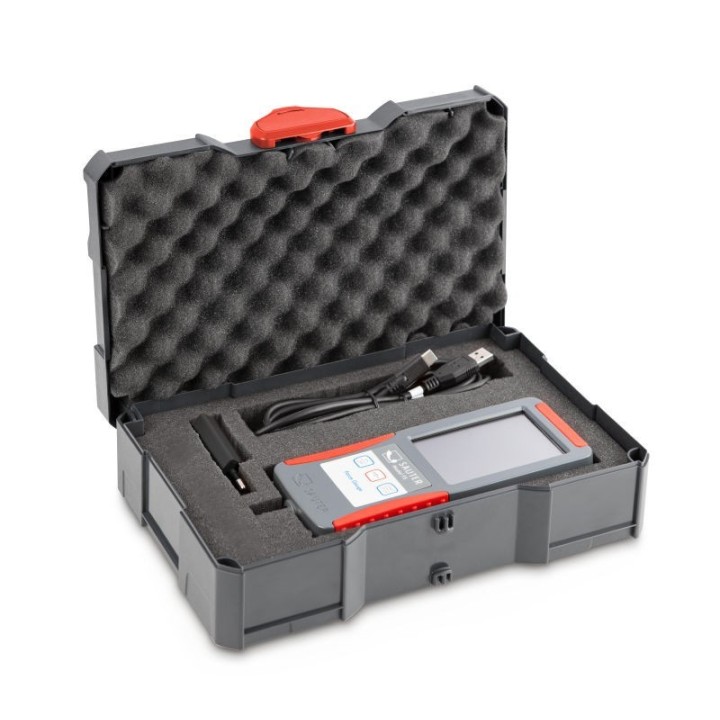

Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

Tip: Order the practical system case (systainer® T-LOC) for storing and transporting of accessories, clamps, sensors, etc. at the same time, SAUTER FS TKZ, see accessories

Key features

Peak hold function: capturing a peak value within a measuring process

Scan mode: continuous capture and display  of measurements

Push and Pull: the measuring device can capture tension and compression forces

Memory: Device-internal memory capacity, e.g. for article data, measuring data, tare weights, PLU etc.

Data Interface USB: For connection to printers, PCs or other peripheral devices

KERN Communication Protocol (KCP): a standardized interface command set for KERN balances and other instruments, which allows retrieving and controlling all relevant parameters and functions of the device. KERN devices featuring KCP are thus easily integrated with computers, industrial controllers and other digital systems

Measuring with tolerance range (checkweighing): Upper and lower limit values can be programmed, e.g. for sorting, portioning or for measuring coatings or material thicknesses. The process is supported by an acoustic and/or optical signal

ZERO: Reset the display to 0

Rechargeable battery pack: Rechargeable set

Plug-in power supply: 230V/50Hz in standard version for EU, CH. On request GB, USA or AUS version available

Package shipment by courier service: The duration of internal product provision is one day

Option

PC Software: to transfer the measurements from the device to a PC
