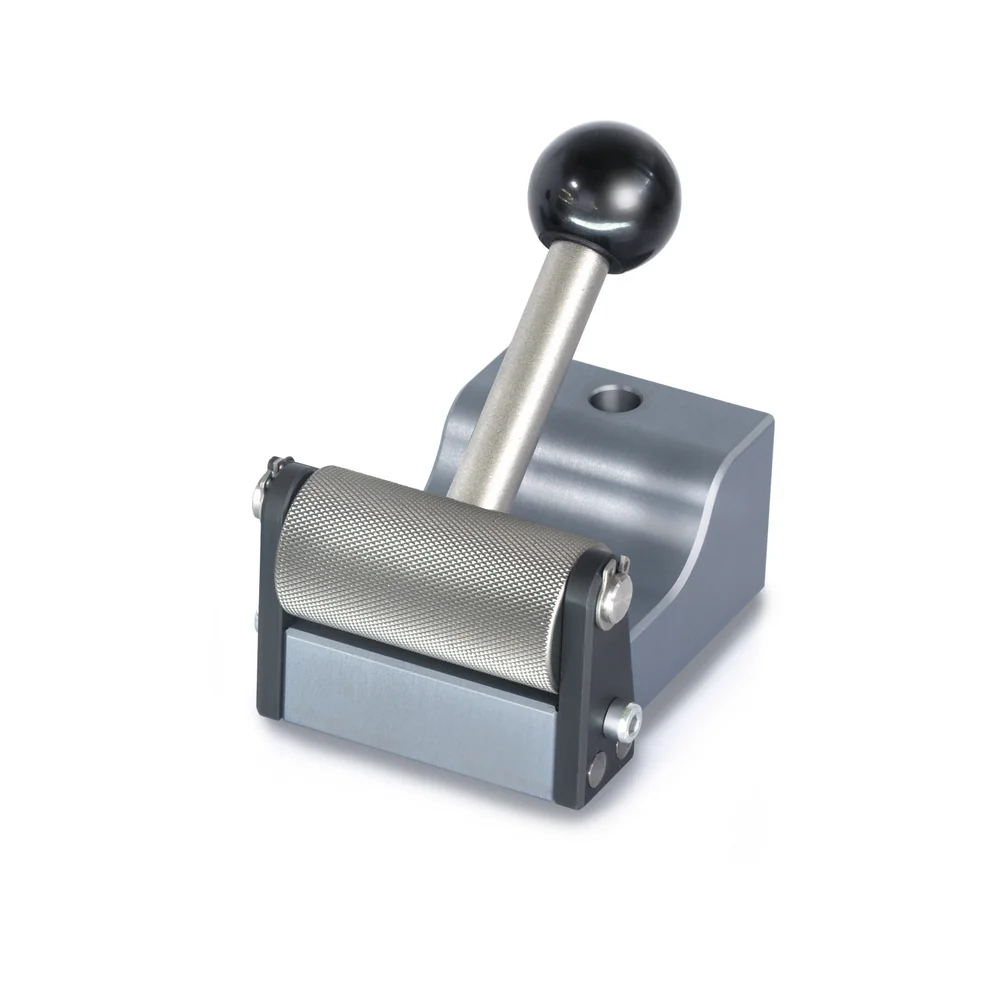

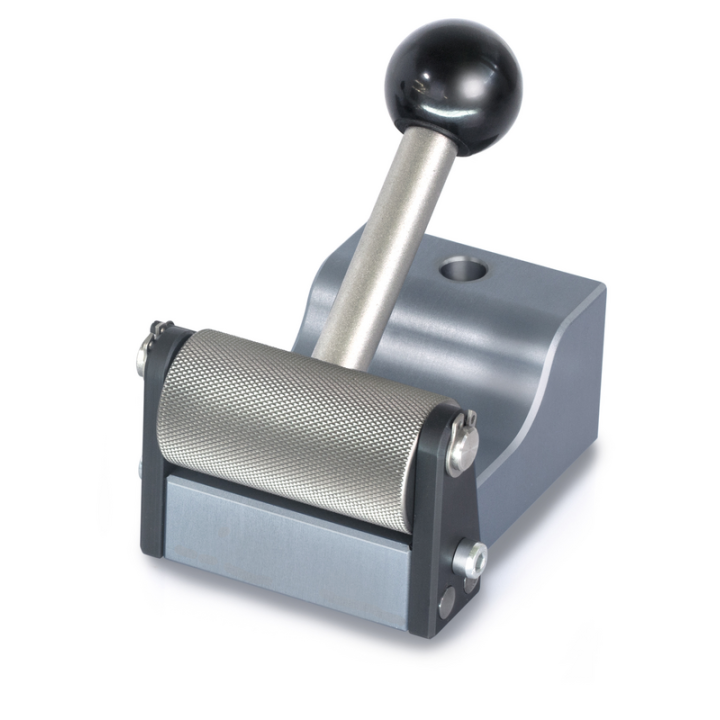

SAUTER AD 9205 Roller tension clamp up to 1 kN

SAUTER AD 9205 Roller tension clamp up to 1 kN

SAUTER
AD 9205

  • Roller tension clamp up to 1 kN
  • Can clamp on one side and eccentrically
  • Suitable for tensile force tests with belts or any other soft, flexible, flat material with a maximum sample thickness of 7 mm
  • Incl. rollers with pyramid grip
  • The opposite clamping surface is smooth
  • Suitable for test objects up to 50 mm width
  • Scope of delivery: 1 piece

TECHNICAL DATA SAUTER AD 9205

Tensile/compressive force [Max] 1 kN
Maximum clamp width 50 mm
Clamping width 7 mm
Material aluminium
Net weight 1 kg
Mounting - force dissipation Threaded hole M6, External thread M12
Dimensions completely mounted (W×D×H) 80×77×68 mm

Made to order, ready for dispatch in approx. 15 days

Hurry! only 6 items left in stock.
€504.00
