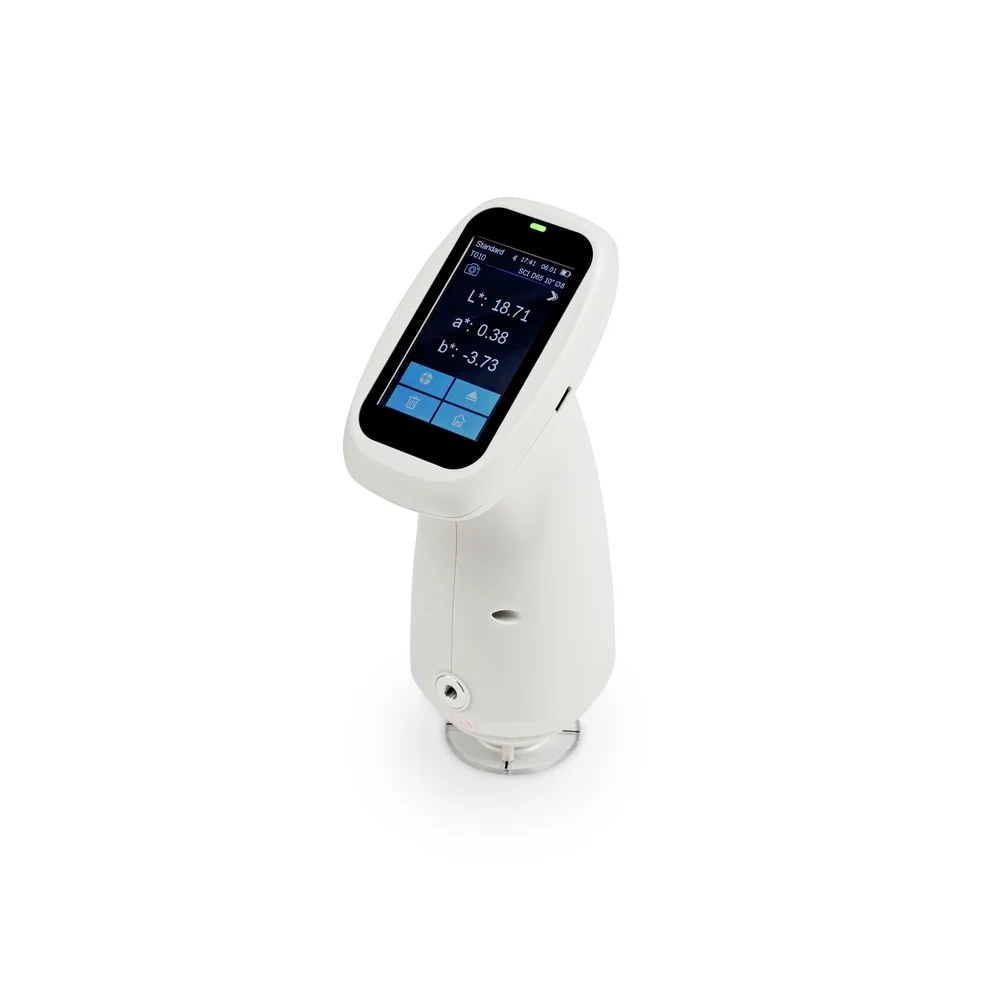

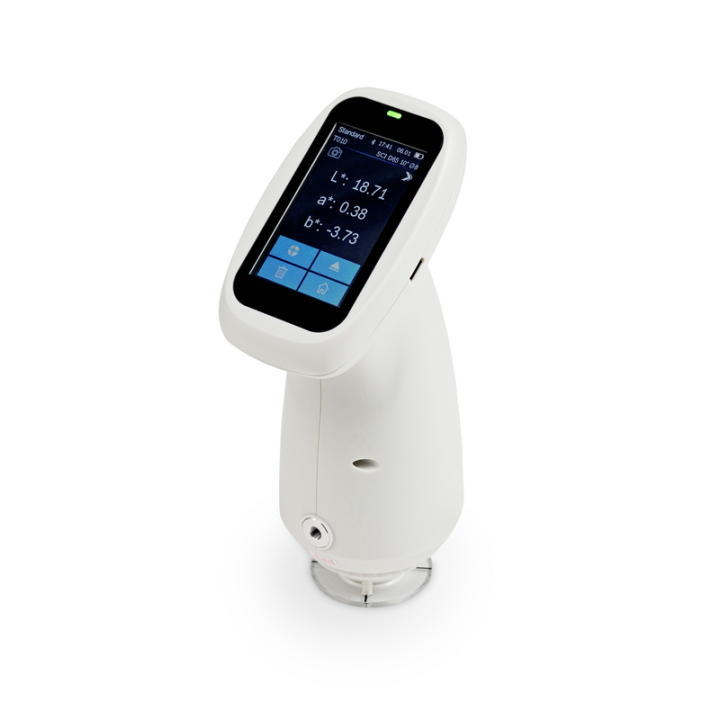

SAUTER JCS 100 colour spectrometer for professional use

SAUTER
JCS 100

Versatile colour spectrometer for professional use

TECHNICAL DATA

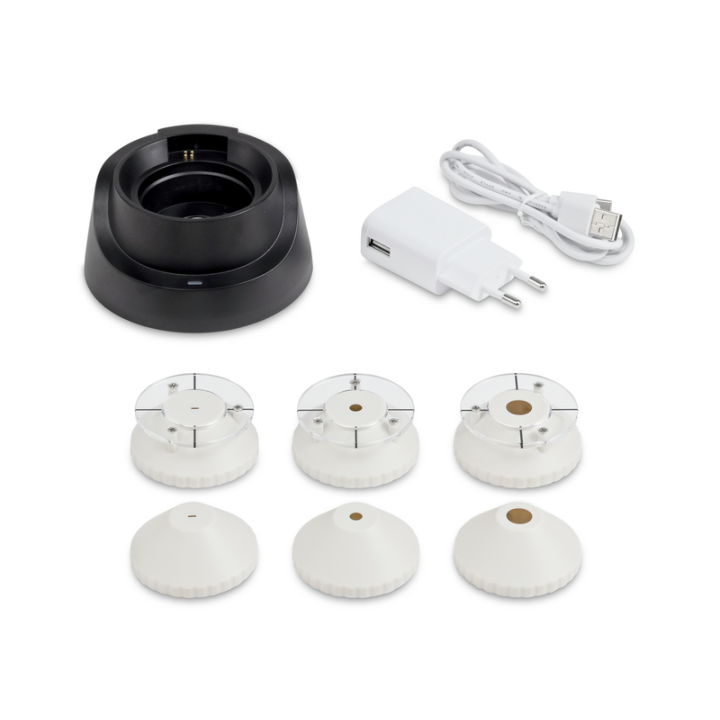

Measuring aperture MAV: Ø 8 mm / Ø 10 mm, SAV: Ø 4 mm / Ø 5 mm, LAV: 1 x 3 mm
Observation angle 2°, 10°
Standard deviation (within) 0,08
Display accuracy 0,01
Light source LED, UV
Net weight 0,27 kg
Product group Colour spectrometer
Hurry! only 11 items left in stock.
€2,997.00
€3,330.00
Save 10%
Tax excluded
Quantity

SAUTER JSC 100 Precise colour spectrometer for determining wavelengths and colour spectra

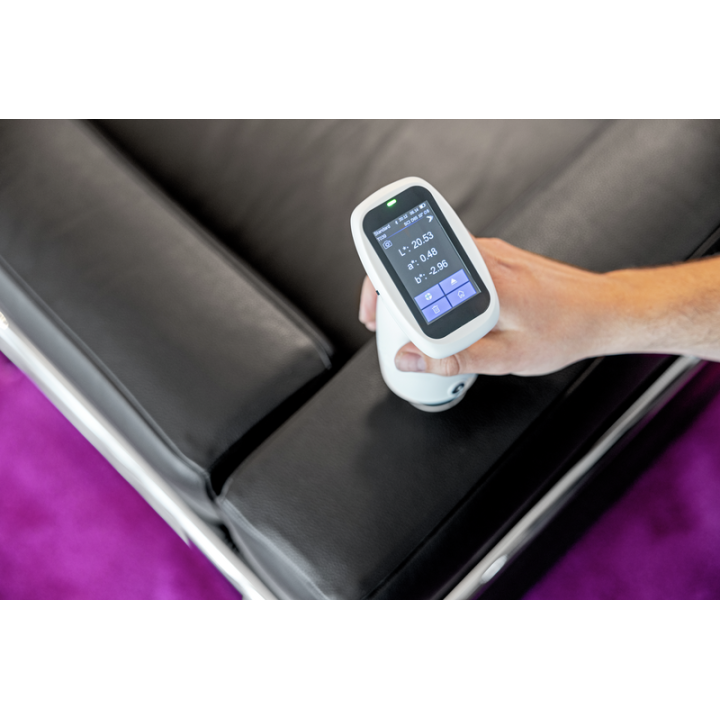

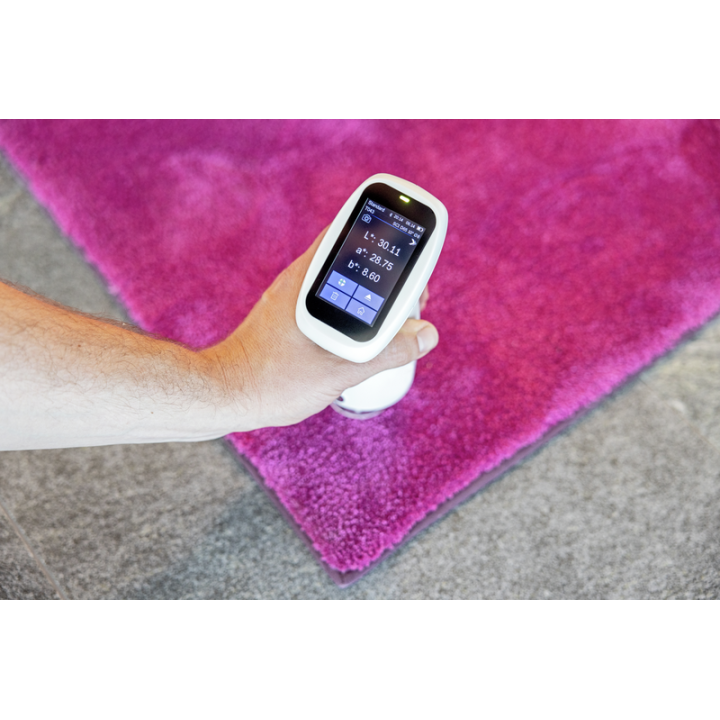

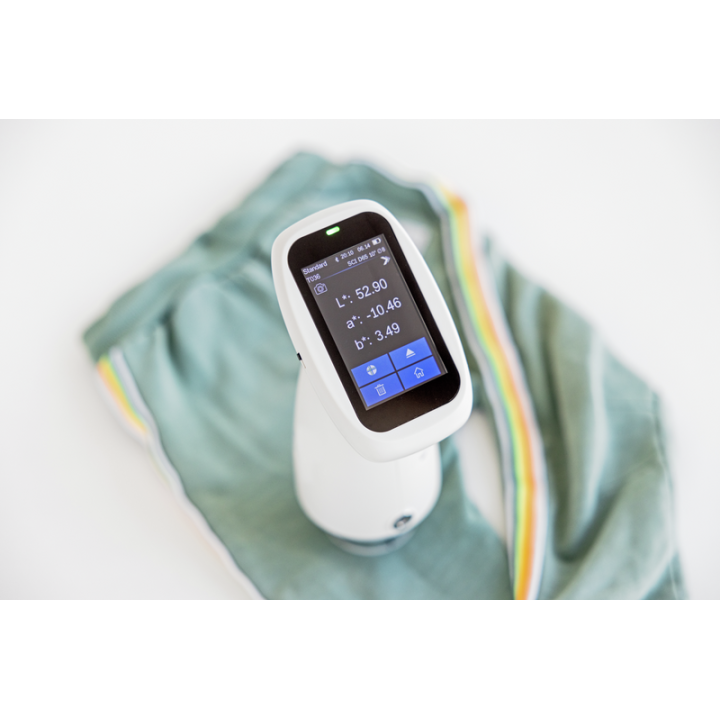

The user can select the measuring standard for the object they are measuring beforehand (e.g. textiles, metallic products, plastic products, cosmetics, etc.). The result of the measuring process is that the device outputs several specific values and the colour difference in these values can be clearly identified and documented. These specific values do not show a specific colour code but still enable precise measurements which can be compared objectively

You can select the standard observation angle as 2 or 10 degrees, several light source modes, several colour spaces

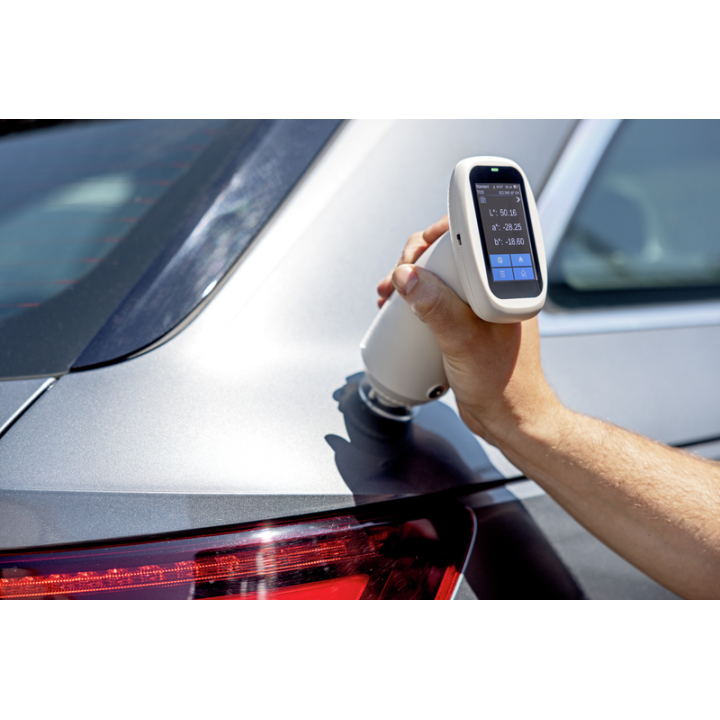

Geometric optical D/8 structure, i.e. the angle at which the light is reflected from the sample is recorded is 8 degrees. This structure is suitable for highly diverse materials and surfaces

Measurement process: the dual optical trail system simultaneously records the SCI and the SCE spectrum of a sample. This combination enables precise, comprehensive characterisation of the colour, both taking the gloss into account and not taking the gloss into account

With LED light source to support fluorescence measurements

The integrated white panel for reference is protected against contamination and guarantees the measuring accuracy

Portable design, robust construction

Wobble-free, dustproof and shockproof

Full spectrum with long service life and low power consumption

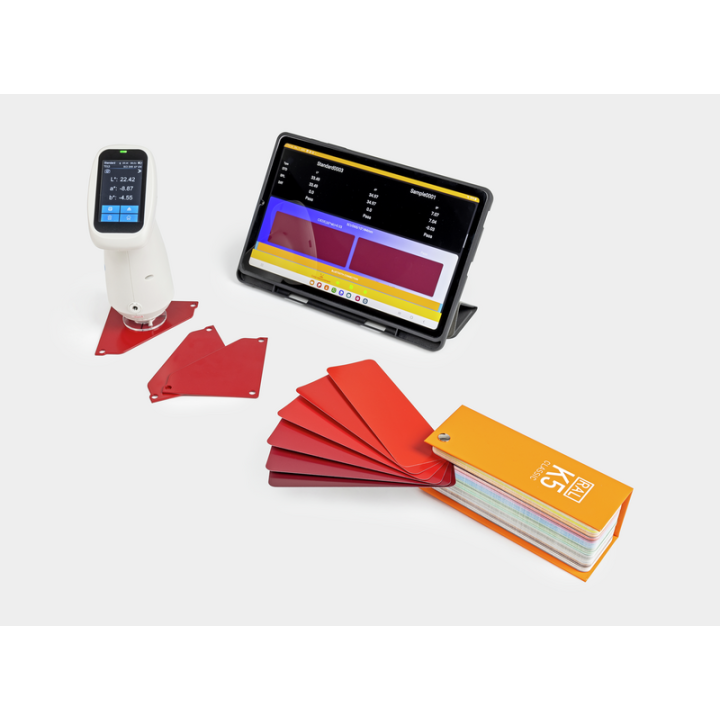

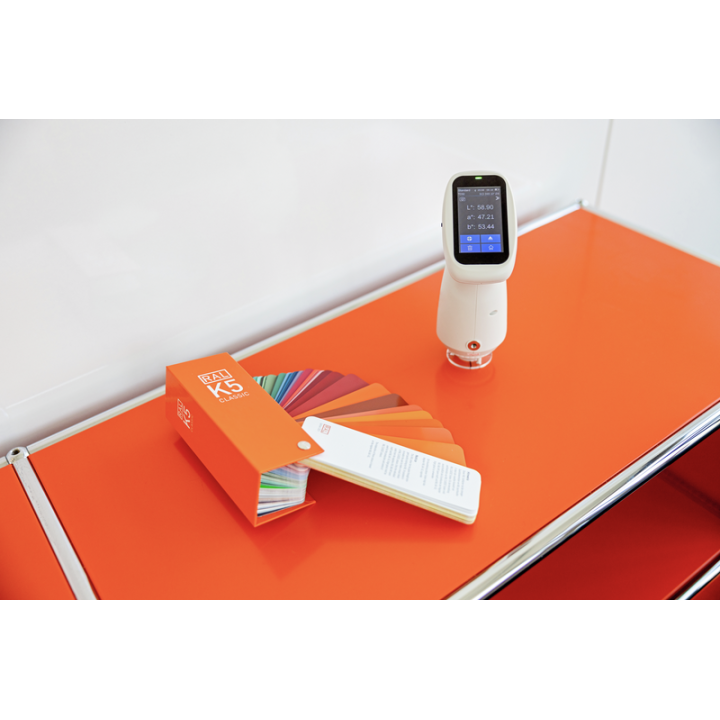

Developed for quality control of colours, in the textile, printing, ceramic, food processing and cosmetics industries, for example

Ideal for use in the laboratory and industry:

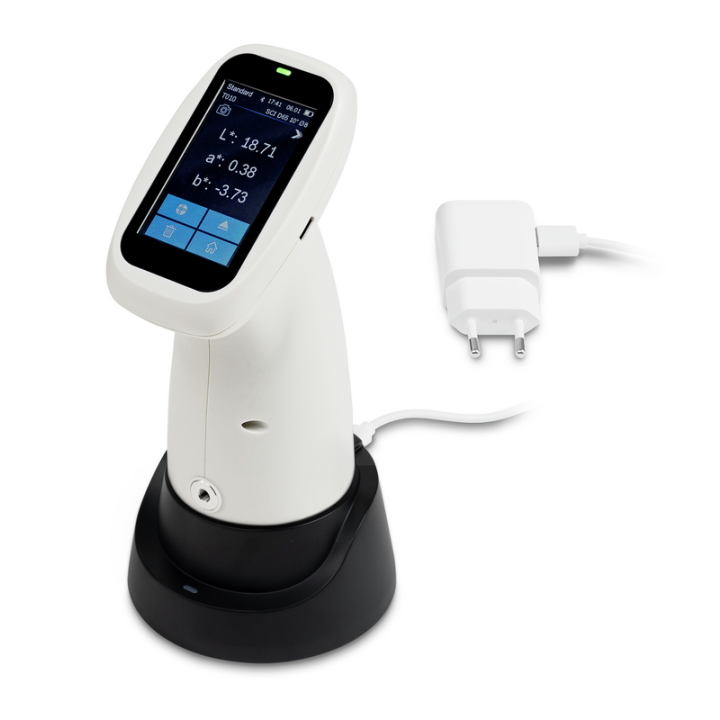

- USB data interface, as standard

- Rapid, accurate measurement of the SCI and SCE spectrum, simultaneously within a second

- Colour display with simple touch operation

Offers the most varied calibration algorithms

Supports several national and international standards and parameters, including spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC and Hunter), YI (ASTM 01925, ASTM 313), colour spectrum index of Mt, touch colour fastness, colour authenticity, thickness, coverage rate, 555 colour classification as well as Munsell (C2)

: JCS 100
