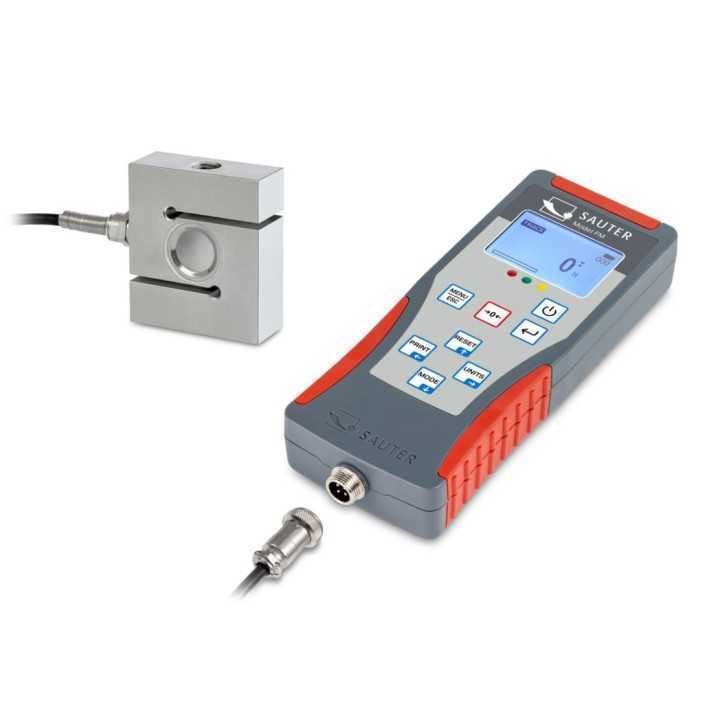

SAUTER FM 20K force gauge with external measuring cell

SAUTER FM 20K force gauge with external measuring cell

Name: SAUTER FM 20K force gauge with external measuring cell
Brand: SAUTER
SKU: FM 20K
Price: 891 EUR
Availability: InStock

SAUTER

€990.00 (Save 10%)

€891.00

Tax excluded

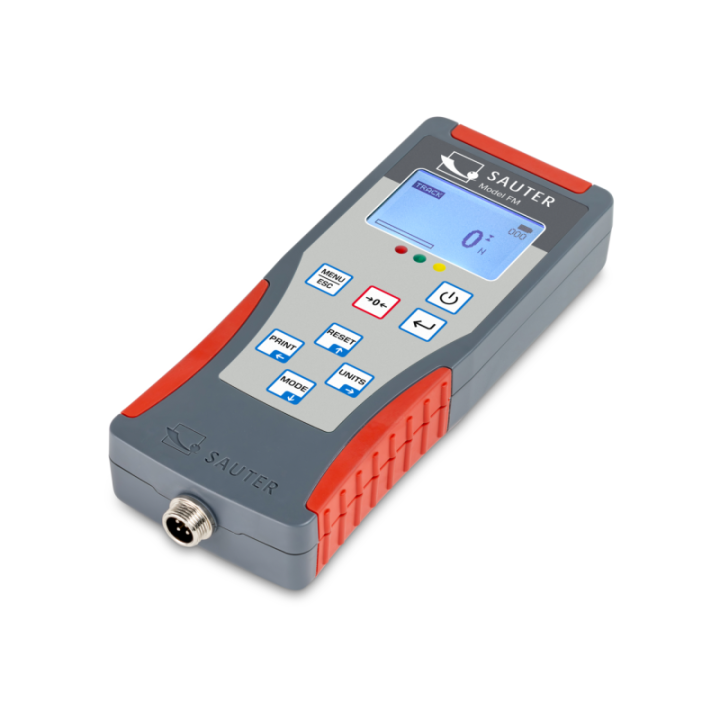

Turnable display with backlight

Peak-Hold function to capture the peak value or Track function for continuous display of measurement

Capacity display: A bar lights up to show how much of the measuring range is still available

Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by a visual signal

Internal memory for up to 500 measurement values

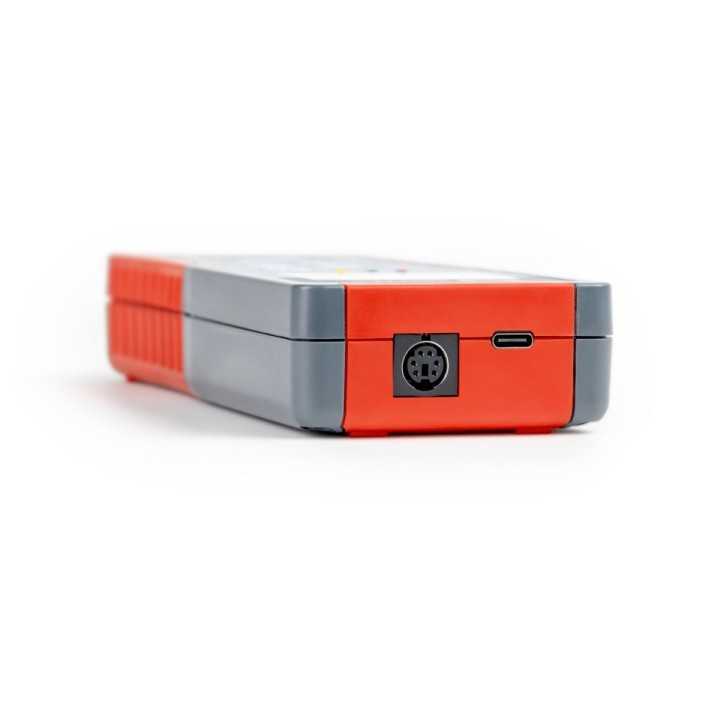

USB-C and PS/2 data interfaces for flexible data transfer and device coupling

Selectable measuring units: N, kN, kgf, lbf

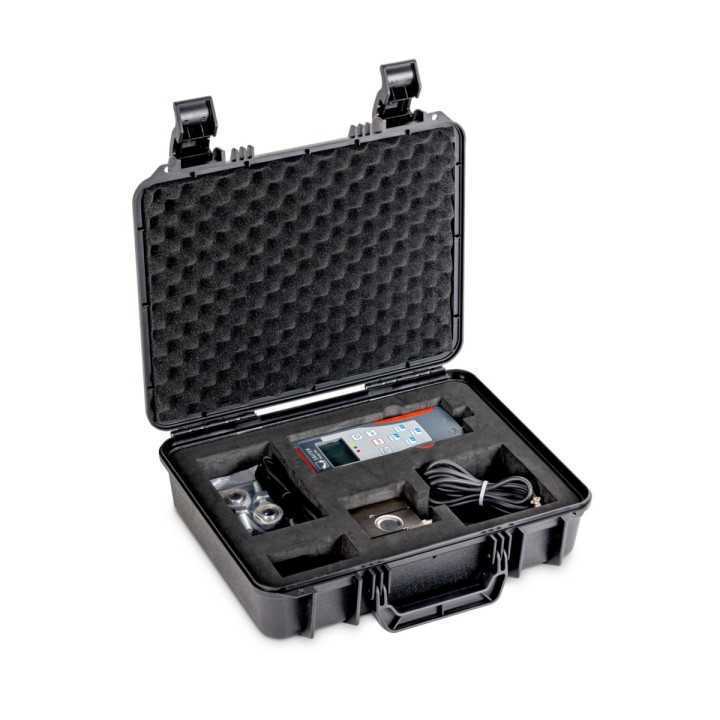

Delivered in a robust carrying case

Measuring range force [Max] (N)	20 kN
Readability force [d] (N)	10 N
Tolerance (% of [Max])	0,2%
Measuring head measuring frequency	1000 Hz
Overload protection (% of [Max])	120%
Supplied power supply	Accu & Power supply
Memory function
Internal data memory: Number of value groups	1
Limit-setting function
Hold function
Peak function
Material housing	ABS plastic
Dimensions completely mounted (W×D×H)	71×31×180 mm
Net weight approx.	0,30 kg
Interfaces	USB-Device
Warranty Time	36 mon
