SAUTER FS 2-100KSP1 Force measuring set up to 100 KN

SAUTER FS 2-100KSP1 Force measuring set up to 100 KN

SAUTER
FS 2-100KSP1

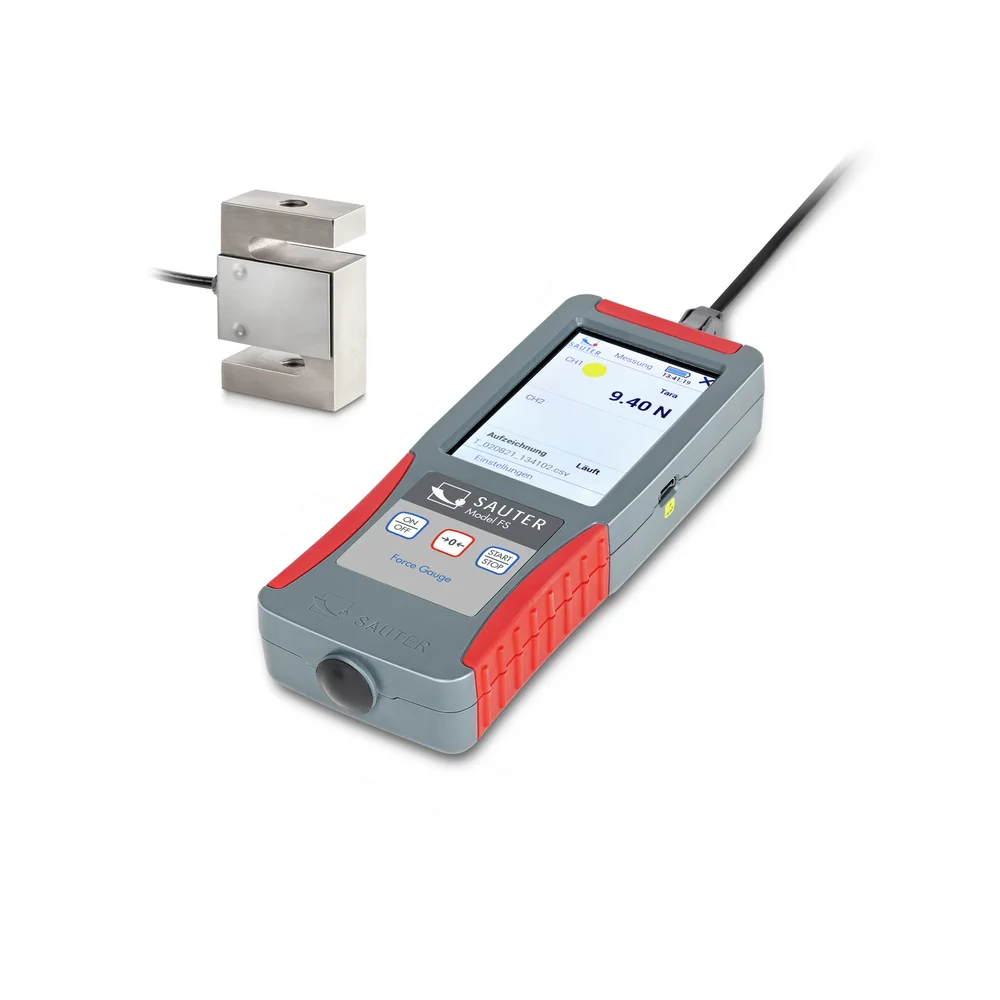

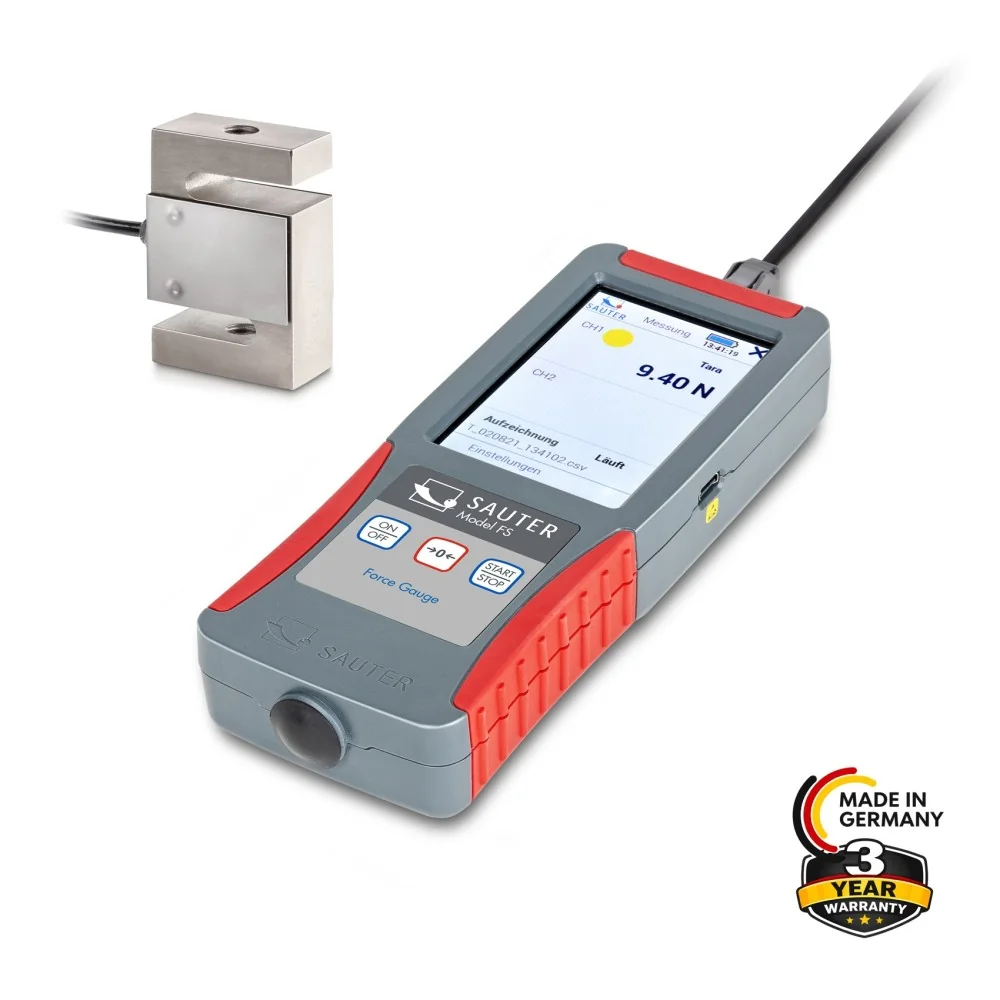

Ready-assembled set consisting of premium force gauge SAUTER FS 2 and external "S" measuring cell CS P1 for tensile and compressive force measurements

TECHNICAL DATA

Measuring range force [Max] (N) 100 kN
Readability force [d] (N) 20 N
Measuring head measuring frequency 1000 Hz
Number of platforms / channels 2
Supplied power supply Accu & Power supply
Rechargeable battery 3,7V, 2400mAh
Memory function
Statistic function
Peak function
Material housing plastic
Interfaces USB-Device
Certificate : without Certificate
Hurry! only 9 items left in stock.
€1,494.00
€1,660.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Premium force gauge SAUTER FS 2

  • Measurement of forces in different tensile or compression directions possible with only one measuring device
  • 3,5" touchscreen
  • Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4)
  • The specific data of an external sensor are stored directly in the connector
  • Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm
  • Track function for continuous measurement display
  • Peak value measurement
  • Tolerance function
  • Internal device memory (16 GB)
  • USB interface for data transfer and power supply as standard
  • Two-point adjustment with weights or numerical adjustment possible
  • Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C

4-wire “S” measuring cell made of nickel-plated steel for force and mass measurement CS 10000-3P1

  • Accuracy class in accordance with OIML C3
  • Nominal sensitivity: 2 mV/V
  • Protection against dust and water splashes IP67 (in accordance with EN 60529), hermetically encapsulated
  • Area of application: for tensile and compressive force measurement
: FS 2-100KSP1
Hurry! only 9 items left in stock.

Specific References

EAN13
4045761358522
