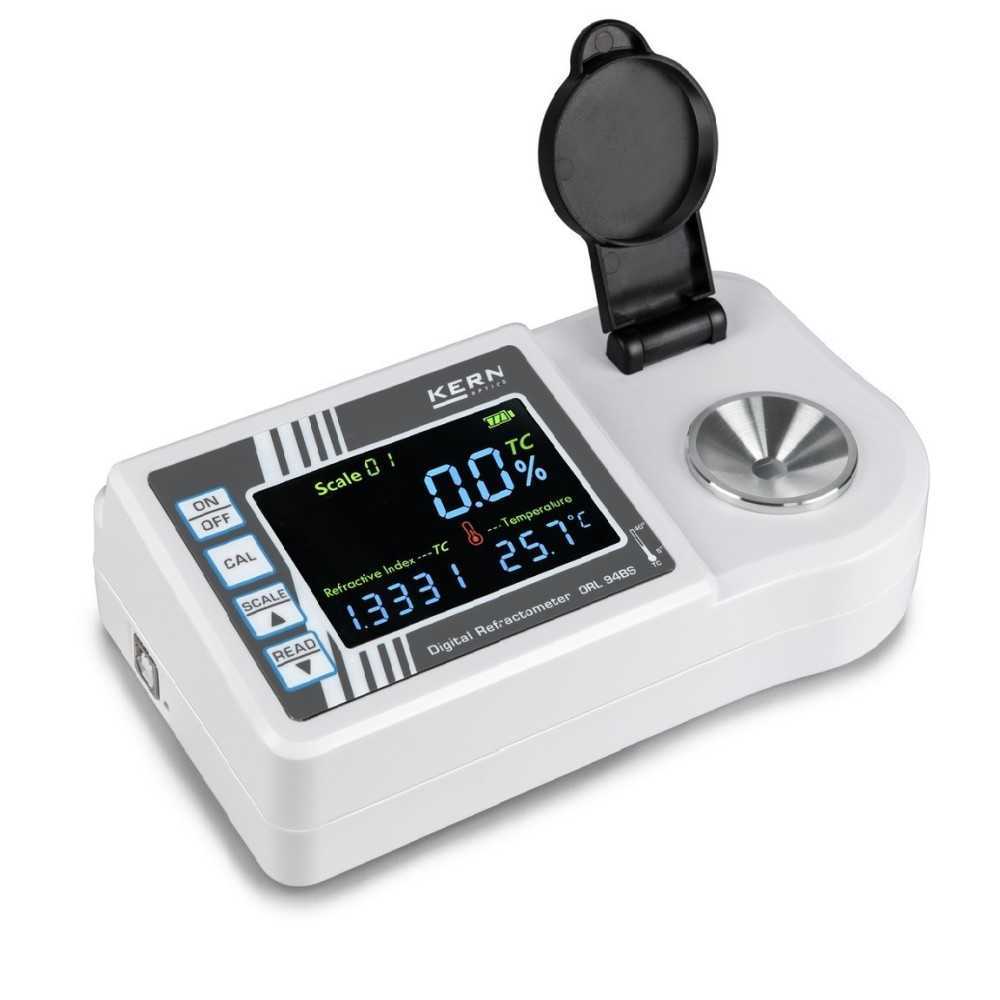

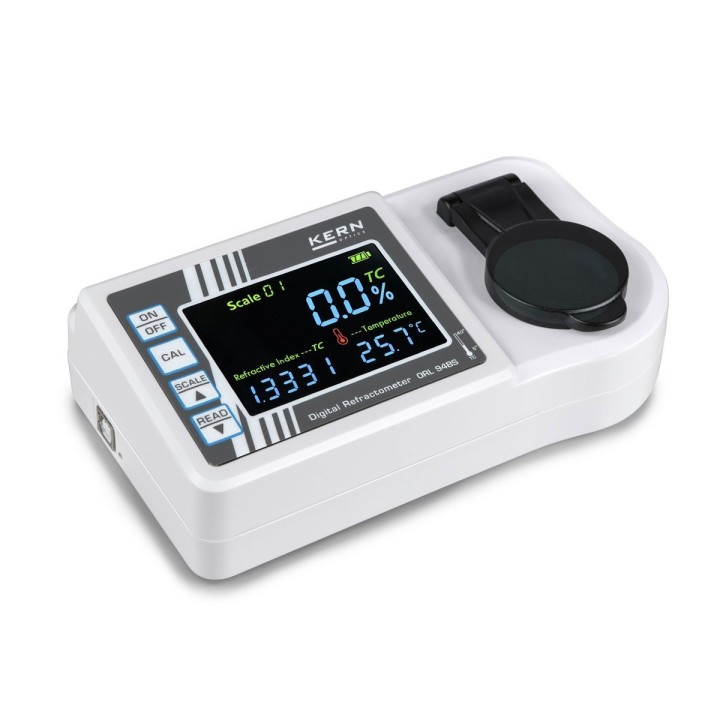

The KERN ORL 94AL is a accurate, universal and maintenance-free digital desktop refractometer
Other key features are the extra-large measuring range and a high degree of accuracy
With their handy design, they are ideal for convenient and rapid everyday use
The large, easy-to-read display with integrated temperature display supports the user to reliably determine the measurement
The integrated automatic temperature compensation (ATC), avoids the manual conversion of the measurement. This allows a quick and efficient usage of the instrument
A quick and user-friendly calibration of the refractometer is possible at any time using commercially available distilled water
Mean value measurements possible
Technical Data
Refractometer type | Desktop refractometer |
Scale - Display type | Digital |
Area of application | Alcohol |
Measuring method | Total reflection |
Measurement temperature (°C) | 0 °C – 40 °C |
Automatic temperature compensation (ATC) | |
IP protection - complete device | IP43 |
Dimension (W×D×H) | 180×100×55 mm |
Brix scale | |
Measuring range Brix | 0 % – 94 % |
Readout Brix | 0,1 % |
Scale Oechsle | |
Measuring range Oechsle | 0 °Oe – 150 °Oe |
Readout Oechsle | 1 °Oe |
Scale Oechsle France | |
Measuring range Oechsle France | 0 °Oe – 230 °Oe |
Readout Oechsle France | 1 °Oe |
Scale KMW (Babo) | |
Measuring range KMW (Babo) | 0 °KMW – 25 °KMW |
Readout KMW (Babo) | 0,1 °KMW |
Scale original hopped wort (specific gravity) | |
Measuring range original hopped wort (specific gravity) | 1,000 – 1,130 |
Readout original hopped wort (specific gravity) | 0,001 |
Scale Plato | |
Measuring range Plato | 0 °P – 31 °P |
Readout Plato | 0,1 °P |
Scale volume percentage | |
Measuring range volume percentage | 0 % – 80 % |
Readout volume percentage | 1 % |
Measuring range volume percentage I | 0 % – 22 % |
Readout volume percentage I | 0,1 % |
Scale percent by mass | |
Measuring range percent by mass | 0 % – 72 % |
Readout percent by mass | 1 % |
Scale for Refractive index | |
Measuring range refractive index | 1,3330 nD – 1,5290 nD |
Readout refractive index | 0,0001 nD |
System requirements CPU | Intel Core i3 or higher, AMD Ryzen 5 or higher |
System requirements clock speeds | 2.8 GHz |
