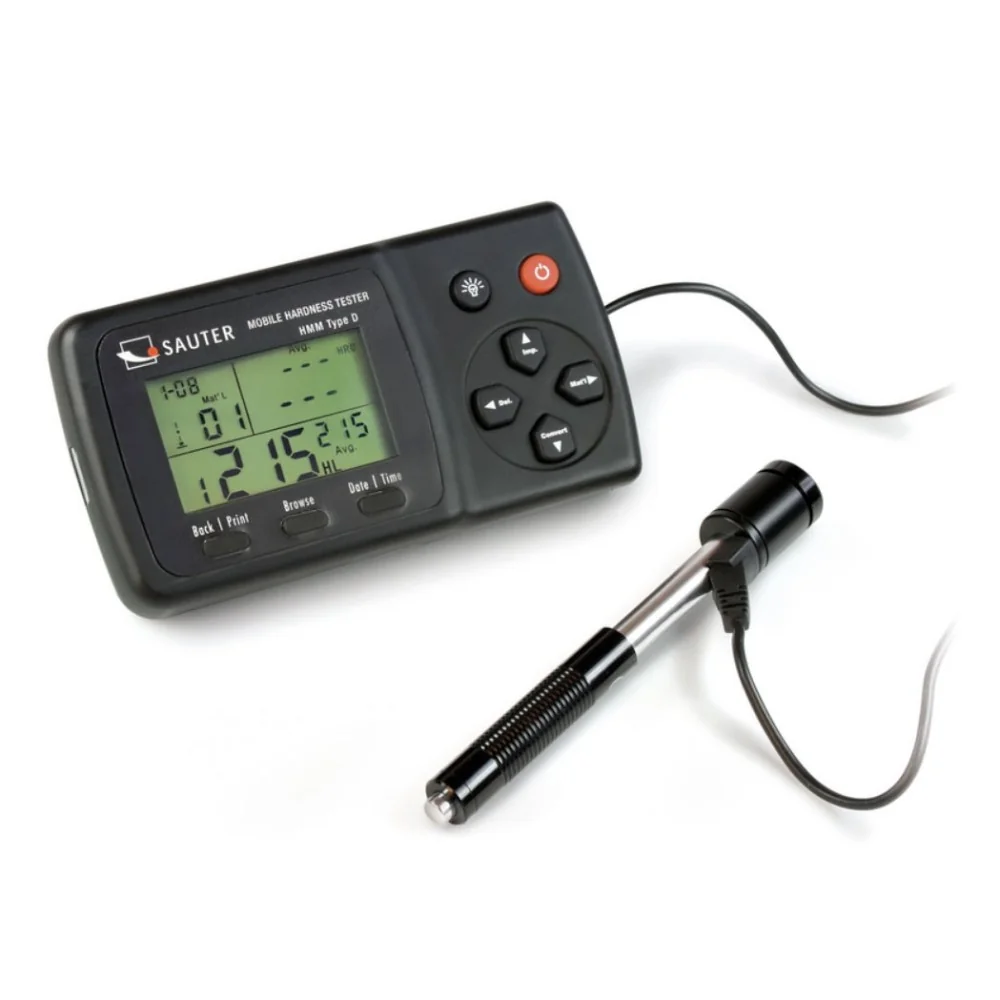

SAUTER HMM mobile Leeb hardness tester


SAUTER HMM mobile Leeb hardness tester

SAUTER
HMM

Advanced features for demanding applications

Technical Data SAUTER HMM

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC, MPa
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 2 kg
Battery 3×1.5 V AAA
Memory function
Statistic function
Material housing plastic
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Test block inclusive
Certificate : without Certificate
Hurry! only 5 items left in stock.
€1,062.00
€1,180.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

Impact (rebound) sensor: The bounce module is accelerated by a spring against the item being tested. Depending on how hard the object is, the kinetic energy of the module will be absorbed. The speed reduction will be measured and converted to Leeb hardness values

External impact sensor (Type D) included

Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HMM offers the highest level of mobility and flexibility

All measurement directions possible (360°) thanks to an automatic compensation function

Hardness test block for calibration included (790 ± 40 HL)

Internal memory for up to 9 measurement values

Mini statistics function: displays the measured result, the average value, the impact direction, date and time

Measurement value display: (B and C), Vickers (HV), Brinell (HB), Shore (HSD), Leeb (HL), tensile strength (MPa)

Automatic unit conversion: The measuring result is automatically converted into all specified hardness units

Infrared printer for direct output of the measuring results is included with delivery

Delivered in a robust carrying case

: HMM
