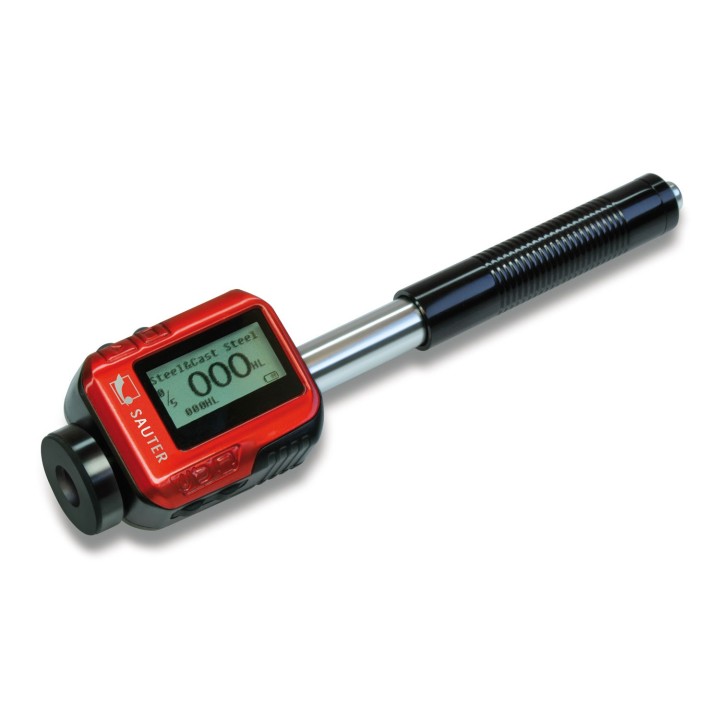

SAUTER HN-D Leeb hardness tester

SAUTER HN-D Leeb hardness tester

SAUTER
HN-D

“Pen type“ Leeb hardness tester for mobile hardness testing of metals

Technical Data SAUTER HN-D

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 2 kg
Statistic function
Function for averaging
Interfaces USB-Device
Material housing cast aluminium, plastic
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Certificate : without Certificate
Hurry! only 5 items left in stock.
€837.00
€930.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

User-friendly operation: The compact version enables the product to be used in a significantly wider range of applications compared with traditional devices

The measuring device has been designed for one-hand operation and this allows the user to work more quickly and flexibly

Modern LCD display: Optimised for industrial applications: increased luminosity and backlight can be switched on, that way the display can be read from any angle

All measurement directions possible (360°) thanks to an automatic compensation function

Internal impact sensor included (Type D)

Measurement value display: (B and C), Vickers (HV), Brinell (HB), Leeb (HL)

Standard block for calibration not included in scope of delivery

Internal data memory for up to 500 measurements with date and time

Data interface USB, including USB interface cable

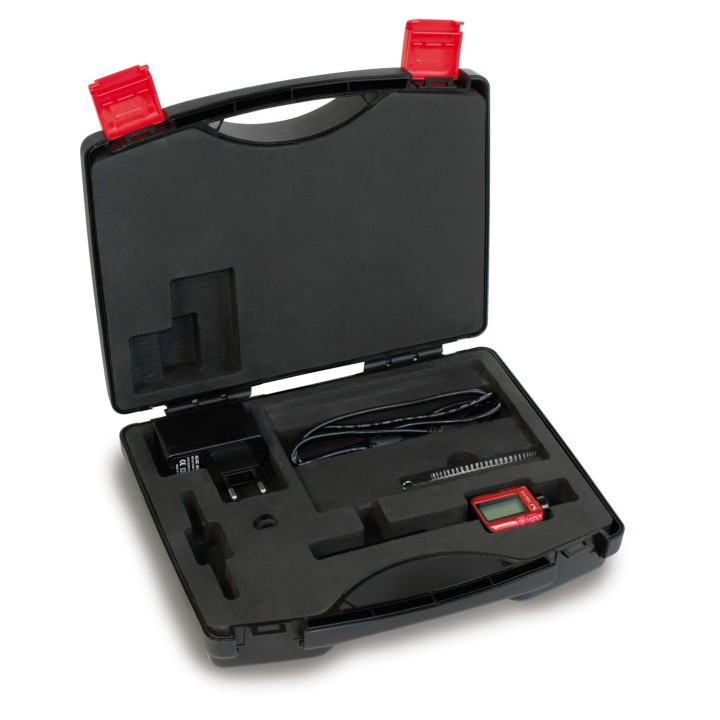

Delivered in a robust carrying case

: HN-D
