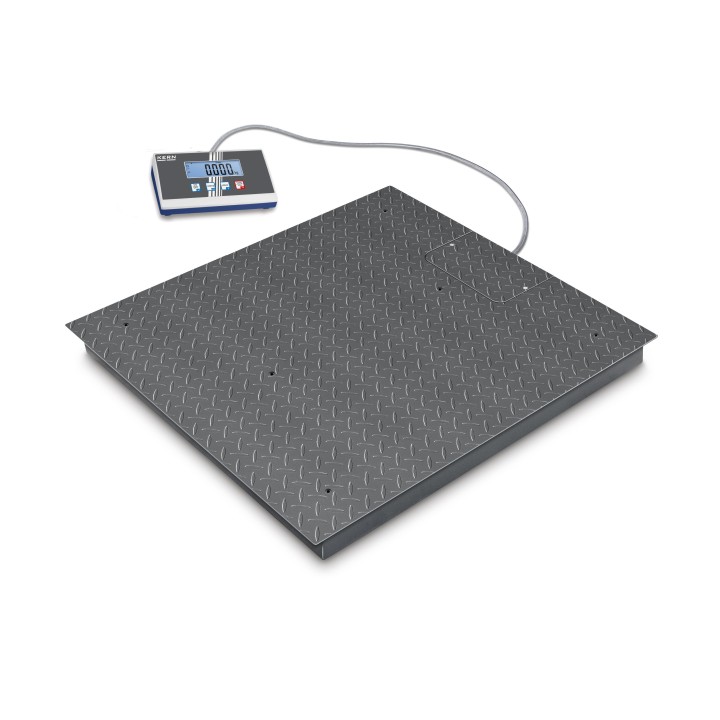

Floor scale KERN BIC 3T-3L
  • Floor scale KERN BIC 3T-3L
  • Floor scale KERN BIC 3T-3L
  • Floor scale KERN BIC 3T-3L
  • Floor scale KERN BIC 3T-3L

Floor scale KERN BIC 3T-3L

1,440.00 €Save 10%
1,600.00 €
Tax excluded

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model. IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof. Battery operation: The battery type is specified for each device. Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA, AUS Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Certificate
Fastening variants
Quantity
In Stock

  • Floor scale: anti-slip corrugated steel plate, 4 silicone-coated steel load cells, protection against dust and water splashes IP67
  • Dual-range balance switches automatically to the next largest weighing range [Max.] and readout [d].
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Simple and convenient 4-key operation
  • Wall mount for display device, standard
  • A clever plug-in connector means that you can easily separate the display device and the platform, e.g. for installing the balance in a packing and dispatch bench, pit frame etc. at a later date

Floor scale KERN BIC 3T-3L

  • Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.
  • Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.
  • IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.
  • Battery operation: The battery type is specified for each device.
  • Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USA, AUS
  • Strain gauge measuring system: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Fastening variants (optional)

  • Pair of base plates to fix the weighing bridge to the floor
  • Ascending ramp, steel, powder coated
  • Stable pit frame, steel, powder coated
BIC 3T-3L

Data sheet

Weighing range [Max]
1500 | 3000 kg
Measuring capacity
500 | 1000 g
Weighing plate dimensions
1500 x 1500 mm
Material weighing plate
anti-slip corrugated steel plate
Weighing units
g kg lb oz
Net weight
165 kg
