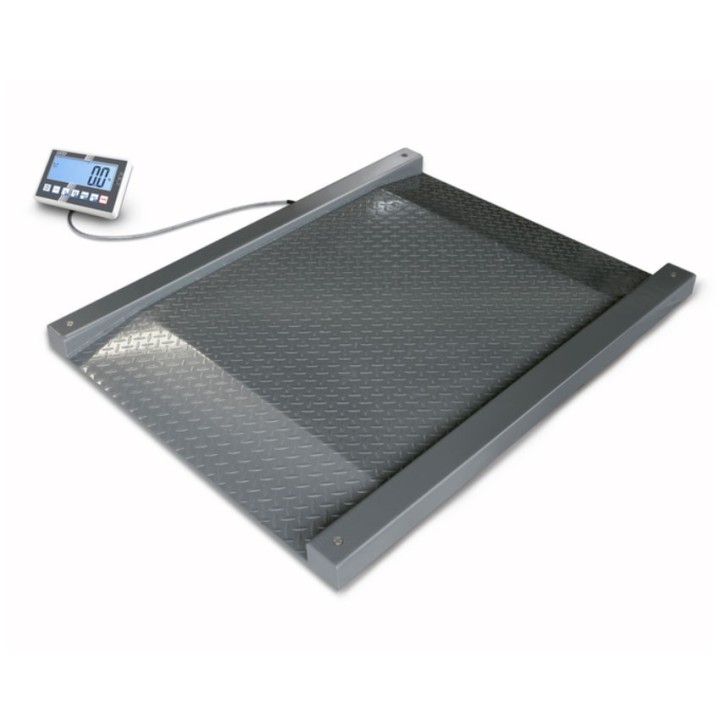

Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, transpallets, mobile containers, containers refuse etc.
Weighing bridge: out of anti-slip corrugated steel, 4 silicone-coated steel load cells, IP67 dust and spray protection

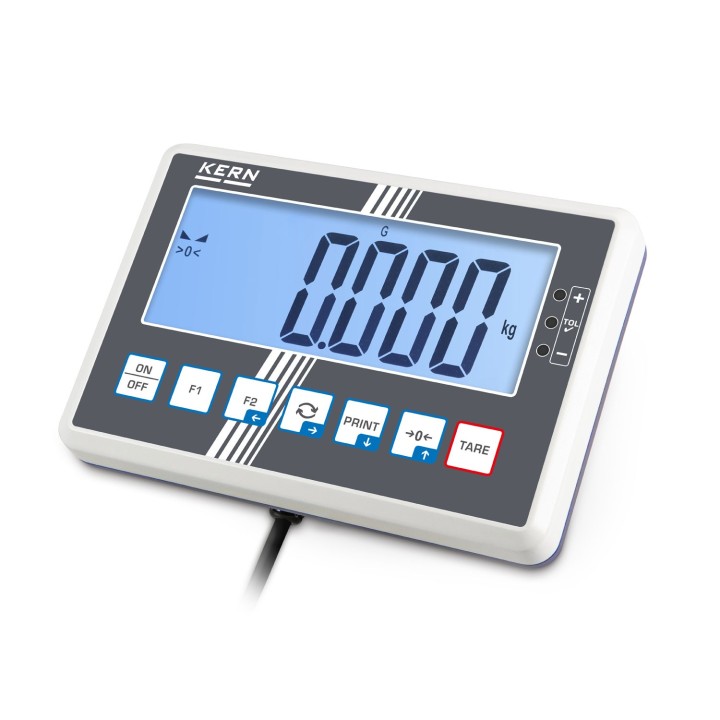

Display device: for details see KERN KFC-TM
IoT line: networkable balances with user-friendly concept of operation
Industry 4.0: Data and control commands can be exchanged through the KERN Universal Port KUP) using one interface, which can be connected to the housing, or through three parallel interfaces using the KUP Extension box, for details see KERN KFC-TM
With Real Time Clock as standard: Enables you to log the weighing results with accurate time information. Even if the power supply is interrupted, the balance can continue to work with the correct time
Protective working cover included with delivery
Networkable drive-through scale (IP67), verification optional
| Weighing capacity [Max] | 600 kg |
| Readability [d] | 0,2 kg |
| Verification scale interval [e] | 0,2 kg |
| Units | kg, g, ffa, PCS, % |
| Minimum weight [Min] | 4 kg |
| Dimensions weighing platform (W×D×H) | 1600×1220×95 mm |
| Dimensions weighing surface (W×D) | 1000×1000 mm |
| Reproducibility | 0,2 kg |
| Linearity | ± 0,4 kg |
| Ambient temperature | -10 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions | 2 kg |
| Conformity assessment possible ex works | |
| Display type | LCD |
| Display digit height | 48 mm |
| Material weighing plate | steel, powder-coated |
| Material platform | steel, powder-coated |
| Display device cable length | 5 m |
| Tolerance weighing | |
| Net weight approx. | 130 kg |
| IP protection - complete device | - |
| IP protection - display | no IP protection |
| IP protection - platform | IP67 |
| IP protection - load cell | IP67 |
