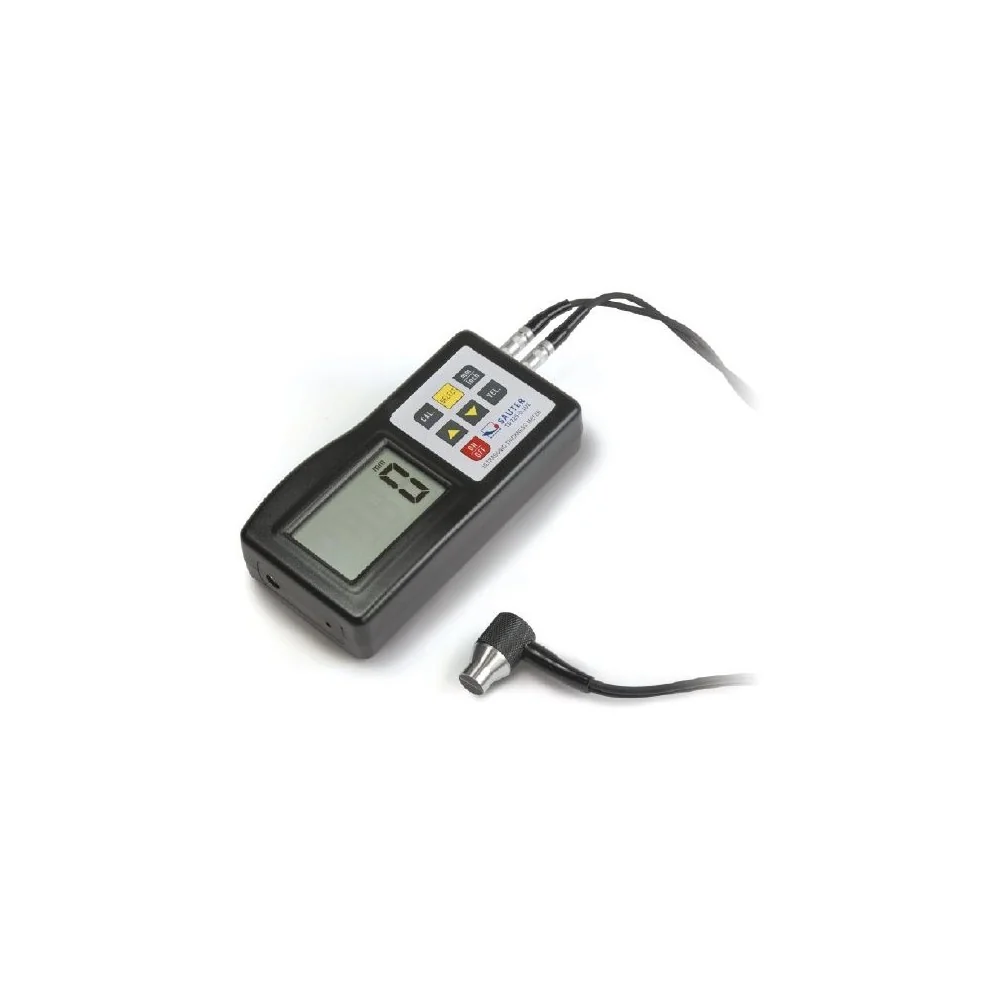

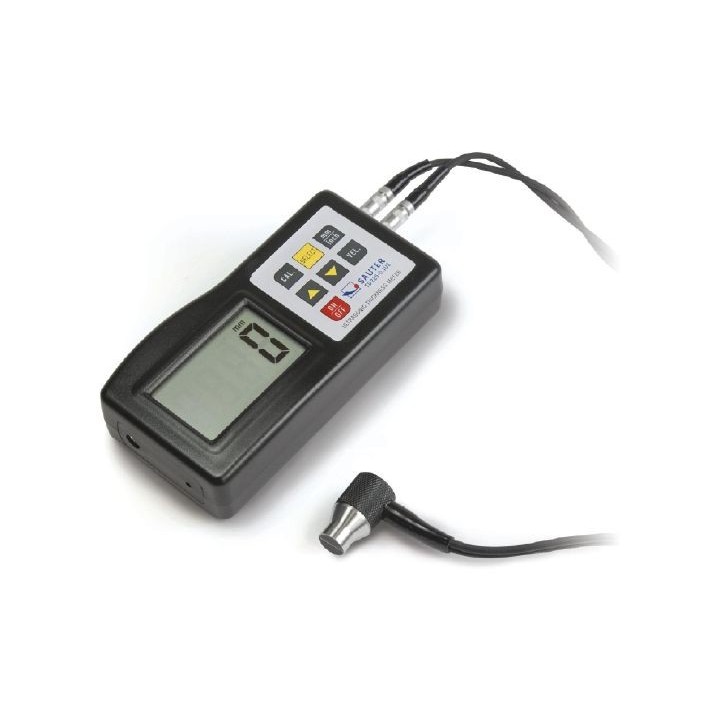

SAUTER TD 225-0.1US material thickness gauge

SAUTER TD 225-0.1US material thickness gauge

SAUTER
TD 225-0.1US

Ultrasonic thickness gauge with external sensor

Material thickness pulse-echo [Max] (mm) 225 mm
Material thickness pulse-echo [Min] (mm) 1,2 mm
Measuring range pulse-echo 1,2 mm – 225 mm
Measuring range echo-echo –
Readability material thickness [d] (mm) 0,1 mm
Tolerance (% of [Max]) 0,5%
Units mm, inch
Speed of sound [Max] (m/s) 9999 m/s
Speed of sound [Min] (m/s) 1000 m/s
Speed of sound 1000 m/s – 9999 m/s
Measuring head measuring frequency 5 MHz
Battery 4×1.5 V AAA
Material housing plastic
Dimensions completely mounted (W×D×H) 30×65×120 mm
Cable length 0,9 m
Certificate : without Certificate
Hurry! only 15 items left in stock.
€436.50
€485.00
Save 10%
Tax excluded
Quantity

Add to Compare
Add to Wishlist

External measuring head for difficult-to-access measuring points

Data interface RS-232, included

AUTO-OFF function to preserve the battery

Selectable measuring units: mm inch

Base plate for adjustment included

Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel

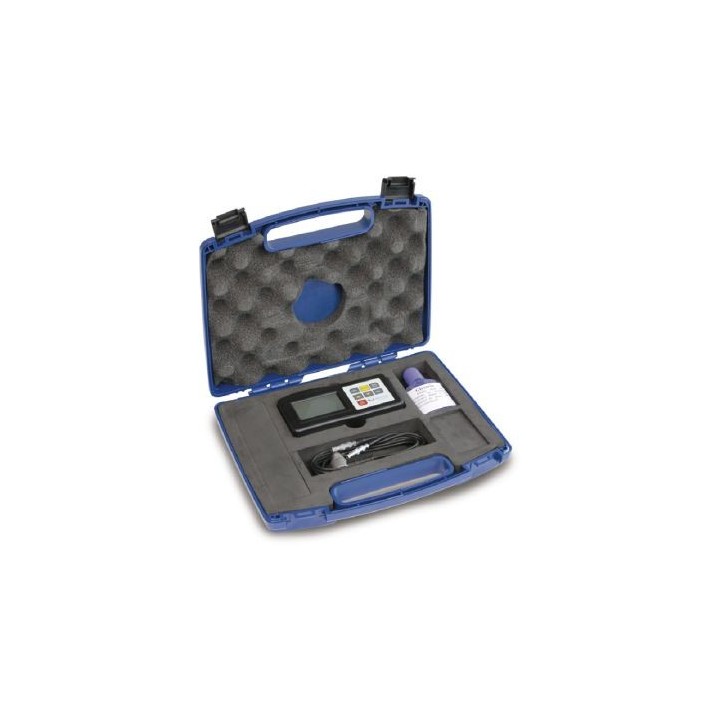

Delivered in a robust carrying case

: TD 225-0.1US
Hurry! only 15 items left in stock.

Specific References

EAN13
4045761140097
