Pallet scale KERN UID
    • Pallet scale KERN UID
    • Pallet scale KERN UID
    • Pallet scale KERN UID
    • Pallet scale KERN UID

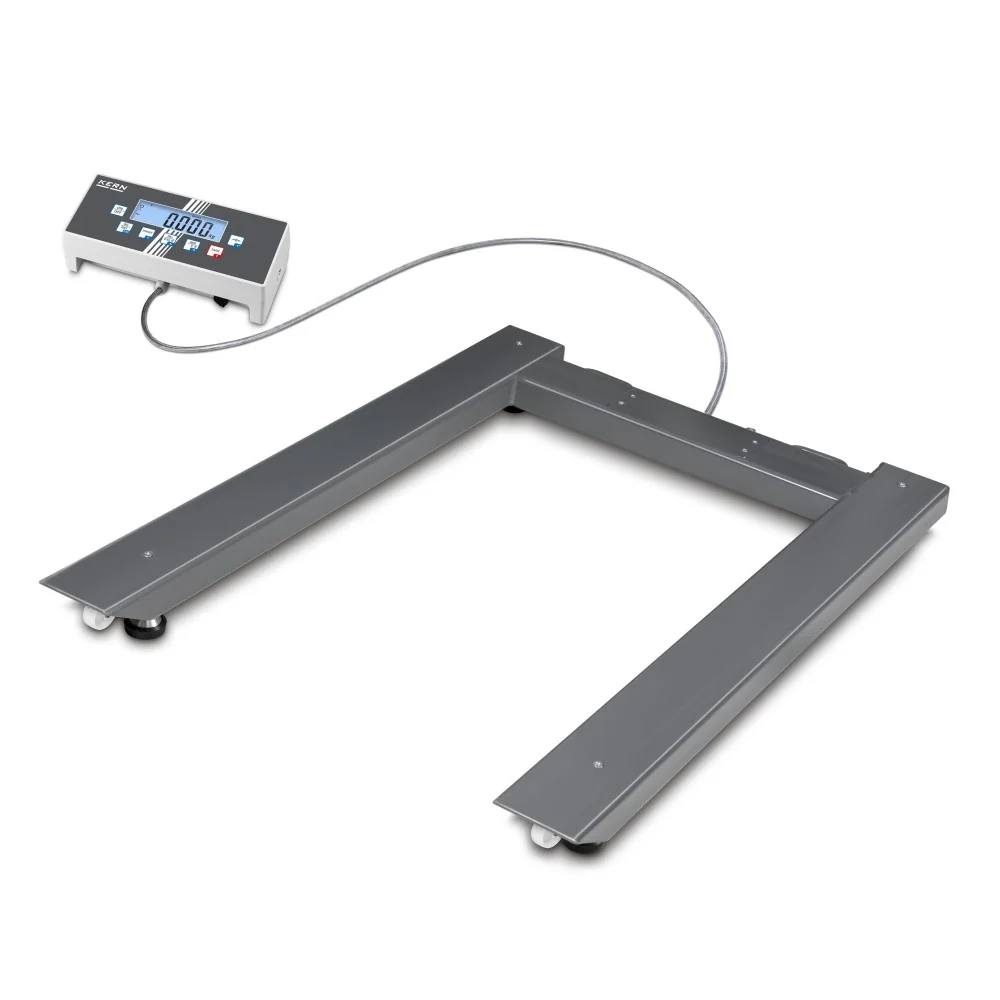

    Pallet scale KERN UID 3000K-0DM

    960.00 €
    Tax excluded

    Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required. Data interface RS-232: To connect the balance to a printer, PC or network KERN Communication Protocol (KCP) Piece counting: Reference quantities selectable. Display can be switched from piece to weight. Totalising level A: The weights of similar items can be added together and the total can be printed out. Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning. Fast move: the total length of travel can be covered by a single lever movement. IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof. Universal mains adapter: with universal input and optional input socket adapters for EU, GB Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

    Quantity
    3-5 days

    High-resolution Dual-rang pallet scale KERN UID

    • Dual-range pallet scale! Ideal, when high maximum loads need to be weighed, but in the lower load range you still need high resolution. This means that two balances can be replaced with one – which saves space and money!
    • High mobility thanks to battery operation for display device and platform
    • Load support: steel, powder coated, 4 silicone-coated aluminium load cells, protection against dust and water splashes IP67
    • The scale can be easily transported using 2 rollers and a handle and does not require much storage space
    • Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer
    • Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.. Only possible through RS-232 data interface
    • Protective working cover included with delivery
    UID 3000K-0DM

    Data sheet

    Weighing range [Max]
    1500 | 3000 kg
    Readout [d]
    500 | 1000 g
    Weighing plate dimensions
    1195 x 840 mm
    Material weighing plate
    Steel lacquered
    Weighing units
    g HJ kg lb oz PCS tJ
    Net weight
    45 kg
